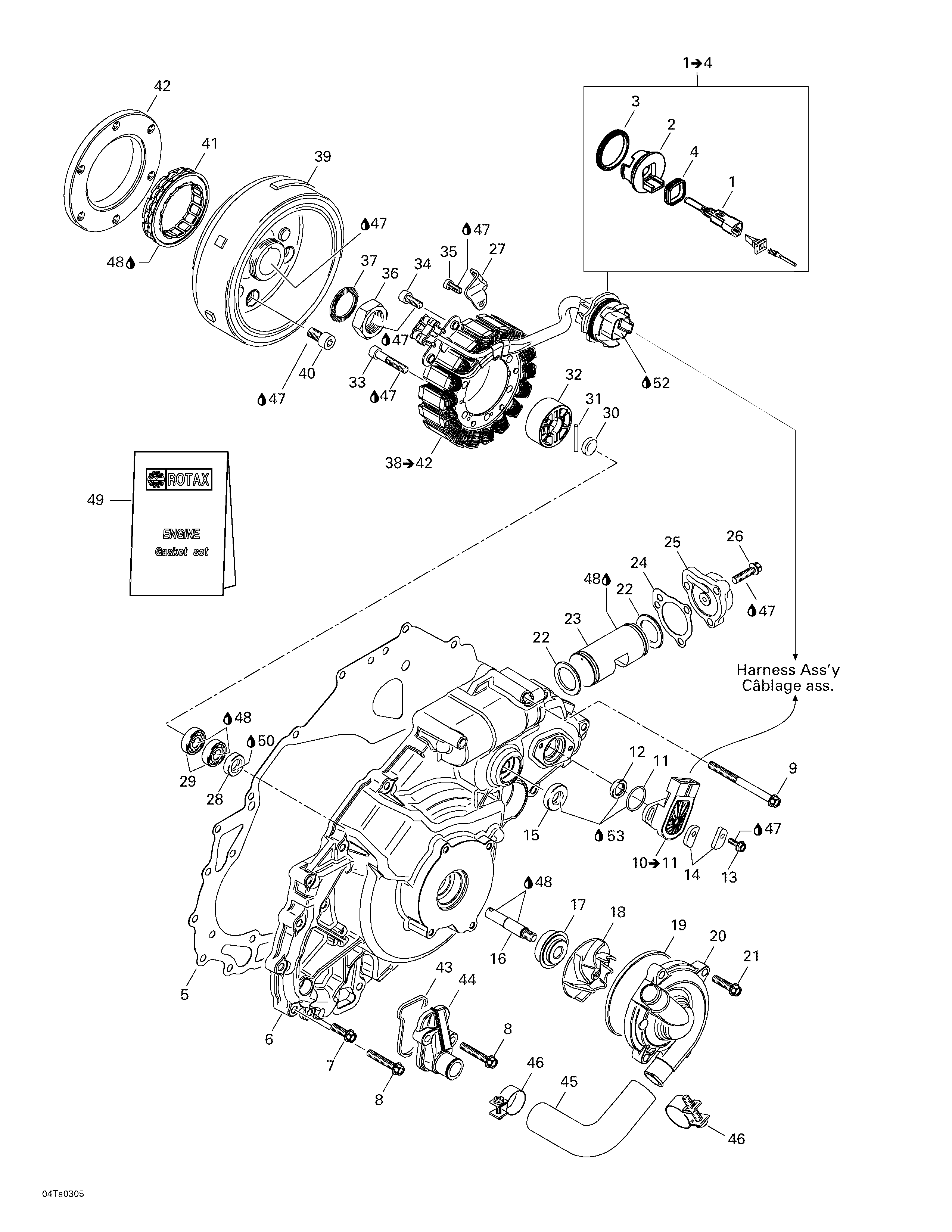

03- Ignition And Water Pump для BRP Traxter XL, 7565 - 2003
-
№АртикулНазвание
-
1707000031 Adaptor Ass'y. Includes 1 - 4.Adaptor Ass'y. Includes 1 - 4.
-
1270000137 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
2270000138 AdaptorAdaptor
-
3293300033 GasketGasket
-
4293200055 GasketGasket
-
5711650603 Ignition Cover GasketIgnition Cover Gasket
-
6711211821 Ignition CoverIgnition Cover
-
7711241861 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
8711941126 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
9711940576 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
10711265610 Potentiometer (Transmission). Includes 10 - 11.Potentiometer (Transmission). Includes 10 - 11.
-
11711931390 O-RingO-Ring
-
12711230870 Oil SealOil Seal
-
13711440291 Socket Head Screw M4 x 12Socket Head Screw M4 x 12
-
14711224630 ReinforcementReinforcement
-
15420950400 Oil SealOil Seal
-
16711220560 Water Pump ShaftWater Pump Shaft
-
17420650370 Rotary SealRotary Seal
-
18711222540 Water ImpellerWater Impeller
-
19711650570 Rubber RingRubber Ring
-
20711222550 Water Pump HousingWater Pump Housing
-
21711241911 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
22711650660 K Grooved RingK Grooved Ring
-
23711257140 Hydraulic PistonHydraulic Piston
-
24711650640 Hydraulic Cover GasketHydraulic Cover Gasket
-
25711211950 Hydraulic CoverHydraulic Cover
-
26711241911 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
27711251180 Cable ClampCable Clamp
-
28711250080 Oil SealOil Seal
-
29711632170 Ball BearingBall Bearing
-
30711247030 Distance SleeveDistance Sleeve
-
31711932885 Needle PinNeedle Pin
-
32711659190 PawlPawl
-
33711941126 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
34711241751 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
35732600027 Forming Screw M5 x 10Forming Screw M5 x 10
-
36711242875 Nut M22Nut M22
-
37711245875 Serrated Washer 22 mmSerrated Washer 22 mm
-
38711296107 Magneto Ass'y. Includes 38 - 42.Magneto Ass'y. Includes 38 - 42.
-
40205081644 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
41711659117 Sprag ClutchSprag Clutch
-
42711659220 Sprag Clutch HousingSprag Clutch Housing
-
43711650940 Sealing RingSealing Ring
-
44711222620 Inlet FittingInlet Fitting
-
45711222630 Profiled TubeProfiled Tube
-
46711251222 Hose ClampHose Clamp
-
47293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49711296372 Engine Gasket SetEngine Gasket Set
-
50413707000 Molykote IIIMolykote III
-
51278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
