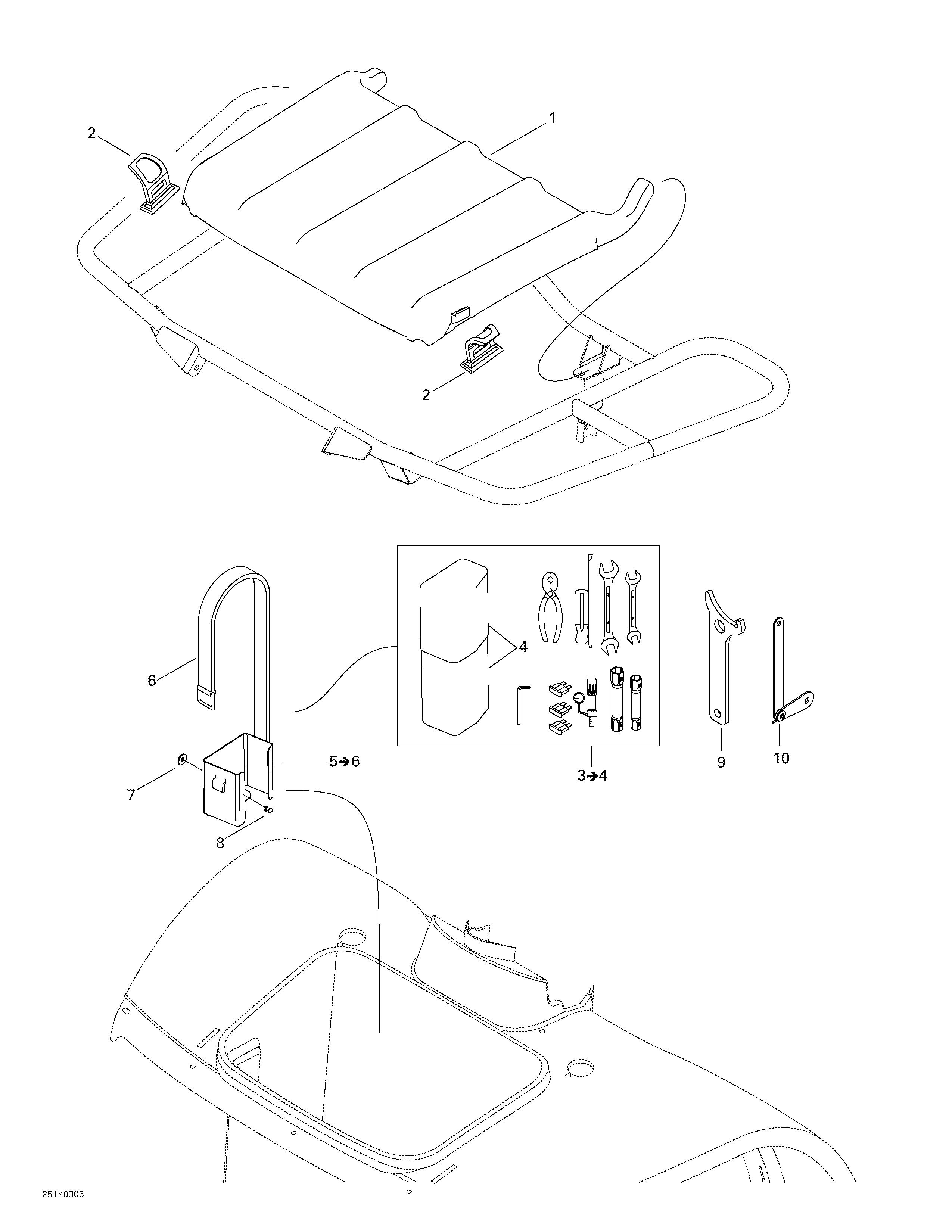

09- Front Tray для BRP Traxter XL, 7565 - 2003
-
№АртикулНазвание
-
1708200002 Storage CoverStorage Cover
-
2708200003 Storage Cover LatchStorage Cover Latch
-
3704700049 Tool Kit (With Tool Box). Includes 3 - 4.Tool Kit (With Tool Box). Includes 3 - 4.
-
4572036310 Tool BoxTool Box
-
5708200007 Tray Support Ass'y. Includes 5 - 6.Tray Support Ass'y. Includes 5 - 6.
-
6293850021 Rubber StrapRubber Strap
-
7391301600 Flat WasherFlat Washer
-
8293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
9529032900 Wrench (Shock)Wrench (Shock)
-
10529035599 Wrench Ass'y (Transmission)Wrench Ass'y (Transmission)
