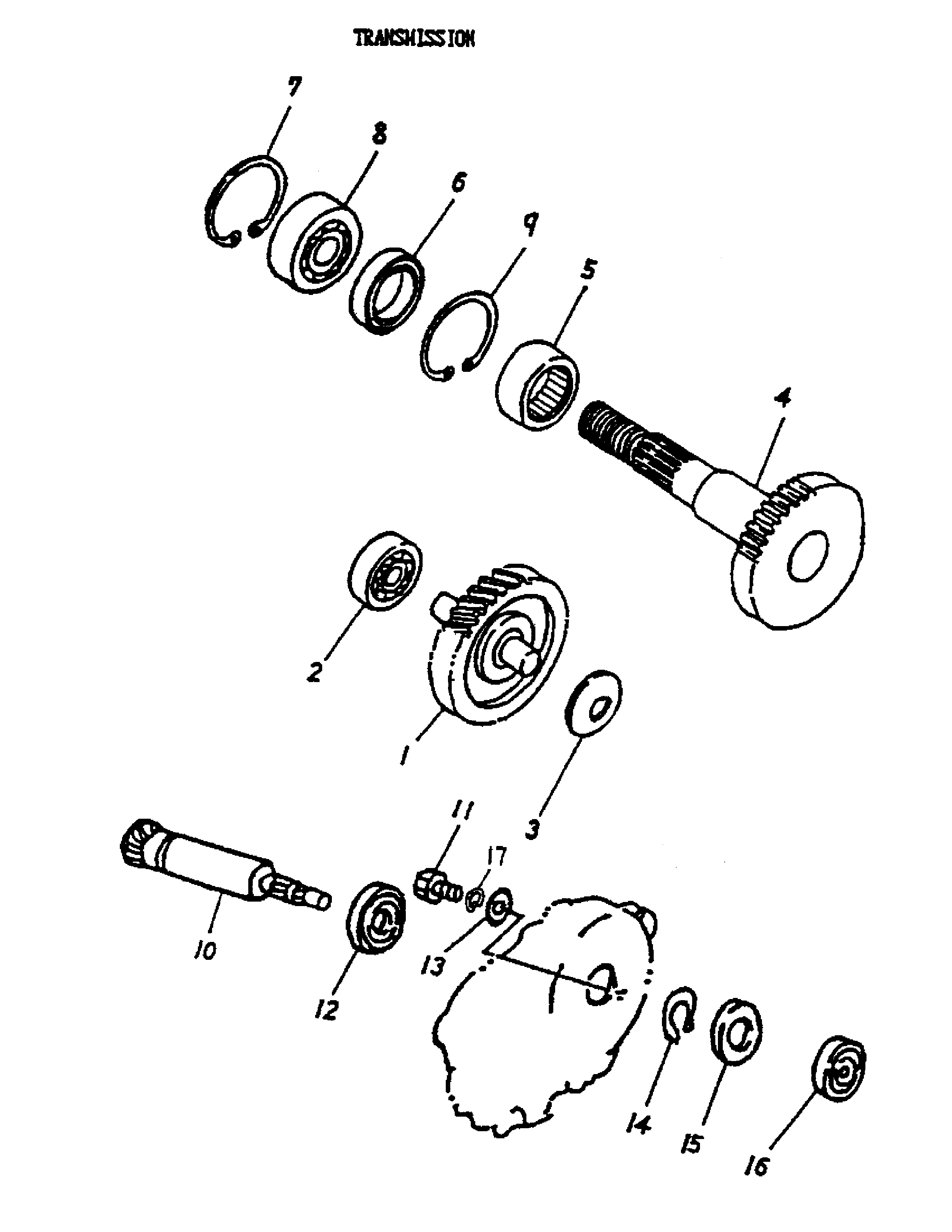

05- Transmission для BRP Mini DS 90 2-strokes - 2004

№

Артикул

Название
1

A23420117000 Main Axle Comp

Main Axle Comp

15 900 ₽
2

A9610062010 Radial Ball Bearing (6201)

Radial Ball Bearing (6201)

1 330 ₽
3

A941011229016 Plain Washer (12.2 x 29 x 1.6)

Plain Washer (12.2 x 29 x 1.6)

320 ₽
4

A23430117000 Drive Axle

Drive Axle

11 720 ₽
5

A96200253315 Needle Bearing (HMK2515)

Needle Bearing (HMK2515)

4 800 ₽
6

A9650025356 Oil Seal (25 x 35 x 6)

Oil Seal (25 x 35 x 6)

830 ₽
7

A945124300R Internal Circlip (RTW-43)

Internal Circlip (RTW-43)

2 320 ₽
8

A961006004U Radial Ball Bearing (6004LU)

Radial Ball Bearing (6004LU)

2 650 ₽
9

A945123400R Internal Circlip (RTW-34)

Internal Circlip (RTW-34)

660 ₽
10

A23411117000 Primary Drive Gear

Primary Drive Gear

9 790 ₽
11

A920000601010 Hex. Bolt M6 x 10

Hex. Bolt M6 x 10

310 ₽
12

A9610060030 Radial Ball Bearing (6003)

Radial Ball Bearing (6003)

1 790 ₽
13

A941010620005 Plain Washer (6 x 20 x 0.5)

Plain Washer (6 x 20 x 0.5)

310 ₽
14

A945111700S External Circlip

External Circlip

320 ₽
15

A9650017285 Oil Seal (17 x 28 x 5.5)

Oil Seal (17 x 28 x 5.5)

1 330 ₽
16

A96100638RD Radial Ball Bearing (638RD)

Radial Ball Bearing (638RD)

3 310 ₽
17

A941110612015 Spring Washer (6 x 12 x 1.5)

Spring Washer (6 x 12 x 1.5)

330 ₽
