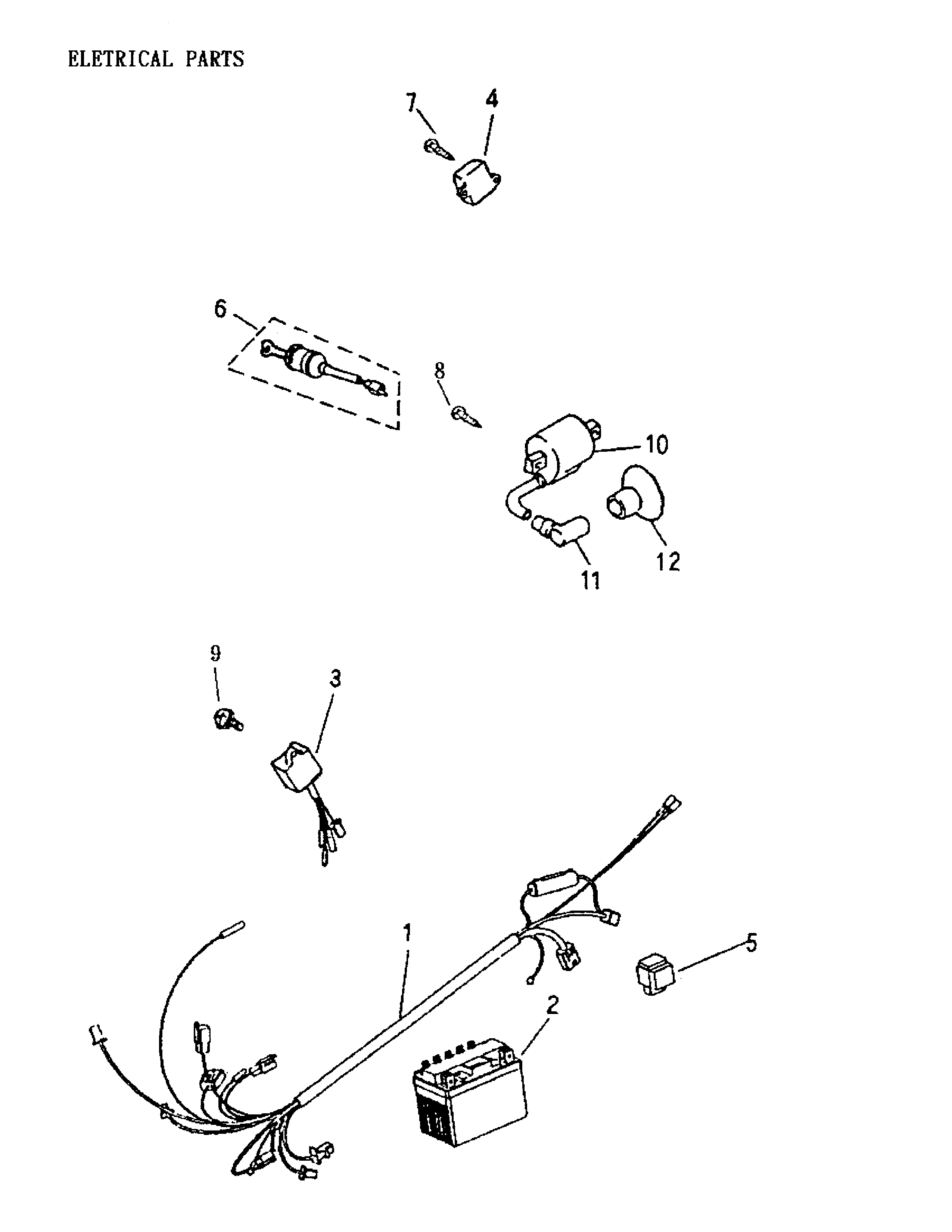

10- Electrical Components для BRP Mini DS 90 2-strokes - 2004
-
№АртикулНазвание
-
1A32100166001 Main Wire HarnessMain Wire Harness
-
2A31500116000 BatteryBattery
-
3A30410117001 C.D.I Unit (5900RPM)C.D.I Unit (5900RPM)
-
4A31600110000 Regulator RectifierRegulator Rectifier
-
5A38501105001 Starting RelayStarting Relay
-
6A3510016600A Main Switch Ass'yMain Switch Ass'y
-
7A9390305016 Tapping Screw Truss Head Phillips M5 x 16Tapping Screw Truss Head Phillips M5 x 16
-
8A9390305025 Tapping Screw Truss Head Phillips M5 x 25Tapping Screw Truss Head Phillips M5 x 25
-
9A9380006015S Pan Head Philllips Bolt (M6 x 15)Pan Head Philllips Bolt (M6 x 15)
-
10A30510110000 High Tension CoilHigh Tension Coil
-
11A30700101001 Spark Plug CapSpark Plug Cap
-
12A30605116000 Rubber CapRubber Cap
