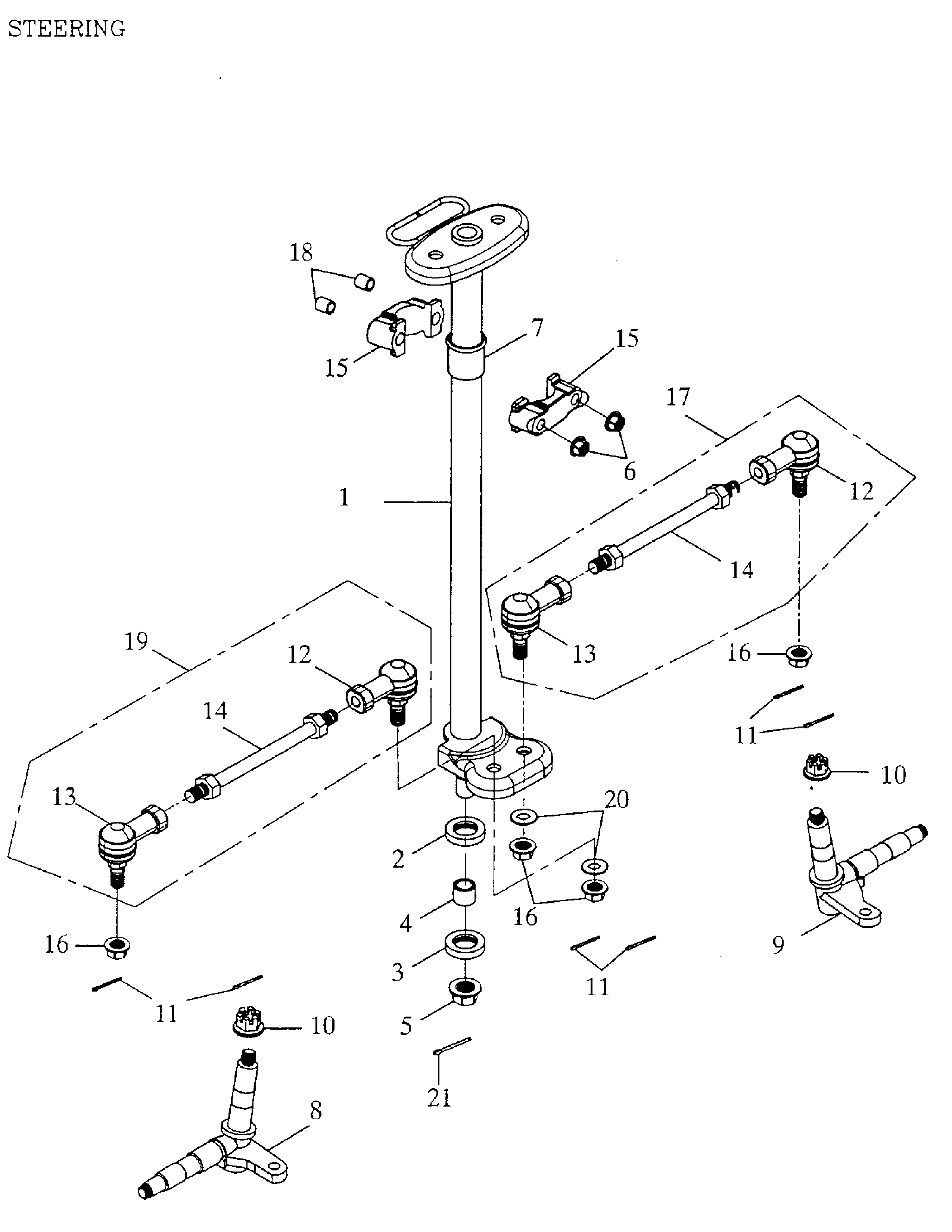

07- Steering System для BRP Mini DS 90 2-strokes - 2004
-
№АртикулНазвание
-
1A51109155000 Steering Shaft Ass'ySteering Shaft Ass'y
-
2A9650018327 Oil SealOil Seal
-
3A9650022357 Oil SealOil Seal
-
4A44620145000 Spacer TubeSpacer Tube
-
5A9035014000 Nylon Nut M14Nylon Nut M14
-
6A9405008000 Hex. Flanged Nut With Serration M8Hex. Flanged Nut With Serration M8
-
7A51114145000 BushBush
-
8A44510145000 Left KnuckleLeft Knuckle
-
9A44520145000 Right KnuckleRight Knuckle
-
10A940521000014 Scotch Flanged Nut M10Scotch Flanged Nut M10
-
11A9420120190 Cotter PinCotter Pin
-
12A44511145002 L.H. Ball JointL.H. Ball Joint
-
13A44521145002 R.H. Ball JointR.H. Ball Joint
-
14A9100110200 Tie Rod Stud BoltTie Rod Stud Bolt
-
15A5111314500A Steering Shaft HolderSteering Shaft Holder
-
16A9035010000G Nylon Nut (10 mm x 1.25)Nylon Nut (10 mm x 1.25)
-
17A44500145002 Right Link Ass'yRight Link Ass'y
-
18A51115145000 Holder Spacer CollerHolder Spacer Coller
-
19A44501145002 Left Link Ass'yLeft Link Ass'y
-
20A941051022025G Plain WasherPlain Washer
-
21A9420130320 Cotter Pin (3 x 32)Cotter Pin (3 x 32)
