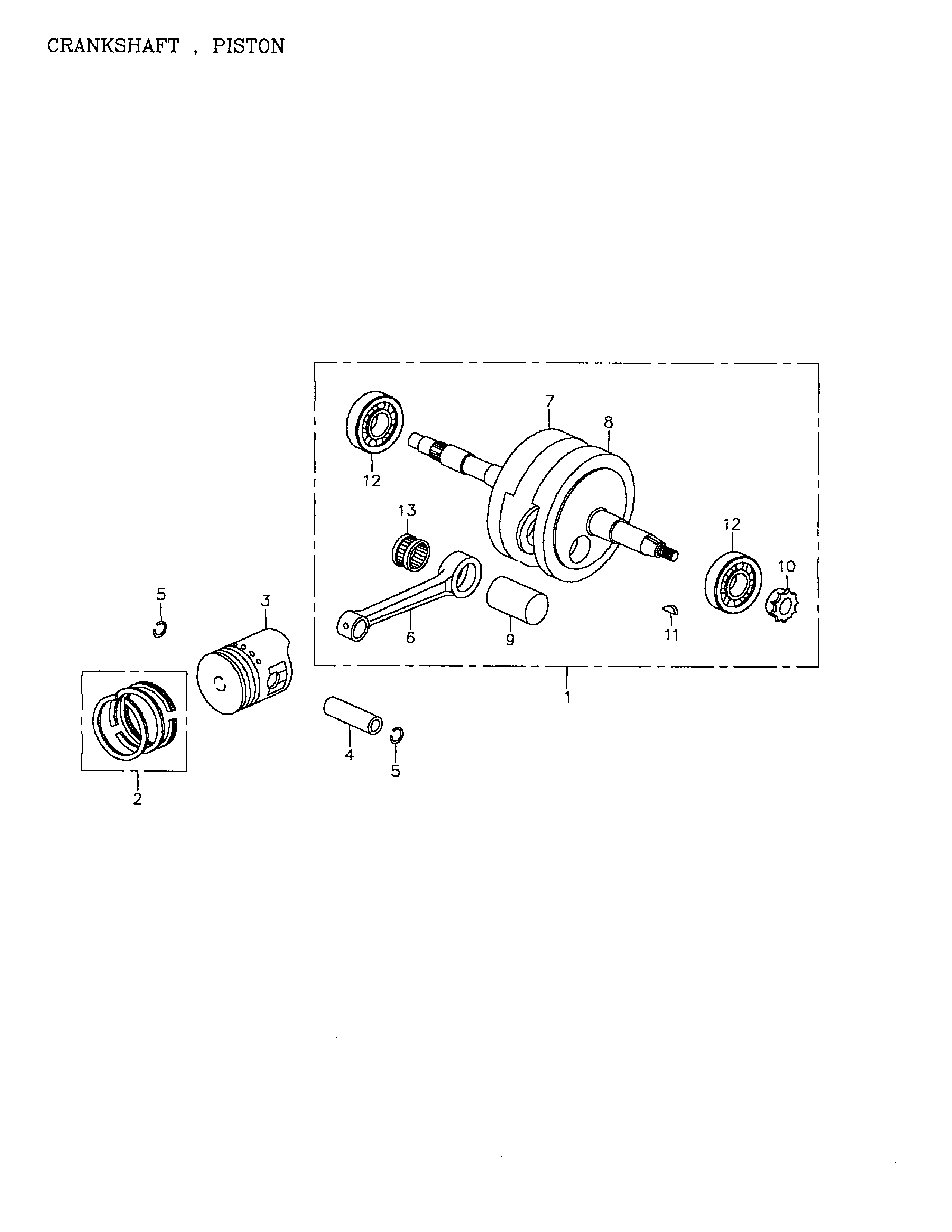

01- Crankshaft And Pistons для BRP Mini DS 90 4-strokes - 2005
-
№АртикулНазвание
-
1A13000152001 Crankshaft Ass'yCrankshaft Ass'y
-
2A13011152000 Piston Ring SetPiston Ring Set
-
3A13100152000 PistonPiston
-
4A13111152000 Piston Pin (12 x 15 x 38)Piston Pin (12 x 15 x 38)
-
5A13115120000 Clip Piston Pin (15 x 17 x 1.0)Clip Piston Pin (15 x 17 x 1.0)
-
6A13201152000 Crank Connecting RodCrank Connecting Rod
-
7A13311152001 Right CrankRight Crank
-
8A13321152001 Left CrankLeft Crank
-
9A13381152000 Crank PinCrank Pin
-
10A14311152000 Timing SprocketTiming Sprocket
-
11A90471152000 Semicycle KeySemicycle Key
-
12A9610063040 Radial Ball Bearing (6304)Radial Ball Bearing (6304)
-
13A96200232814 Needle Bearing (23.1 x 28.1 x 13.9)Needle Bearing (23.1 x 28.1 x 13.9)
