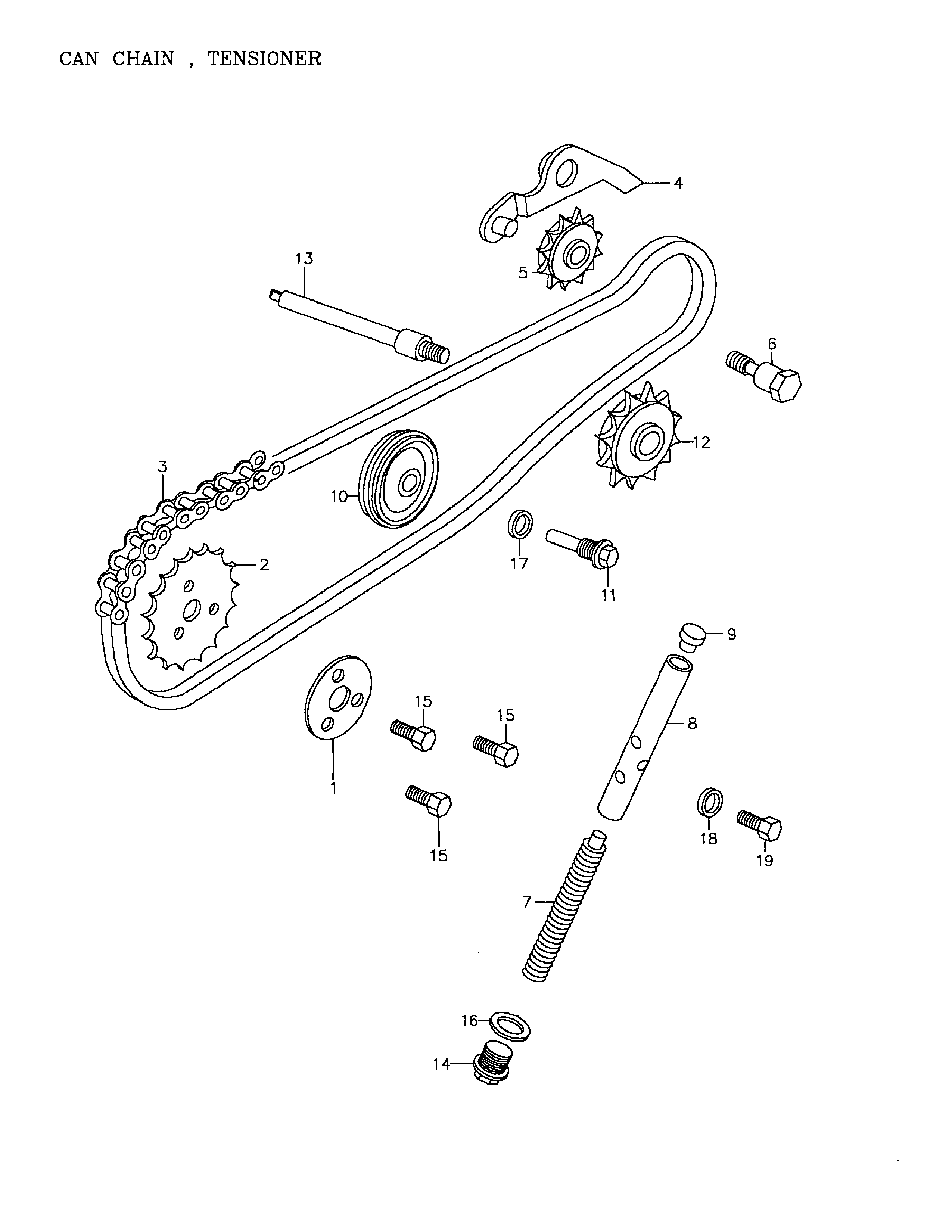

05- Cam Chain, Tensioner для BRP Mini DS 90 4-strokes - 2005
-
№АртикулНазвание
-
1A14101152000 Cam Shaft WasherCam Shaft Washer
-
2A14321152000 Cam SprocketCam Sprocket
-
3A14401152000 Cam ChainCam Chain
-
4A14500152000 Cam Chain TensionerCam Chain Tensioner
-
5A14502152000 Cam Chain Tensioner RollerCam Chain Tensioner Roller
-
6A14531152000 Cam Chain Tensioner PivotCam Chain Tensioner Pivot
-
7A14530152000 Cam Chain Tension Arm SpringCam Chain Tension Arm Spring
-
8A14564152000 Tensioner Push RodTensioner Push Rod
-
9A14562152000 Tensioner Push Rod HeadTensioner Push Rod Head
-
10A14610152000 Cam Chain Roller GuideCam Chain Roller Guide
-
11A14615152000 Roller Pin GuideRoller Pin Guide
-
12A14670152000 Cam Chain SprocketCam Chain Sprocket
-
13A14675152000 Cam Chain Sprocket SpindleCam Chain Sprocket Spindle
-
14A960001401114 Hex. Washer Face Bolt M14 x 11.5Hex. Washer Face Bolt M14 x 11.5
-
15A920000501209 Hex. Bolt M5 x 12Hex. Bolt M5 x 12
-
16A941041420016 Plain Washer (14 x 20 x 1.6)Plain Washer (14 x 20 x 1.6)
-
17A941010814015 Plain Washer (8 x 14 x 1.5)Plain Washer (8 x 14 x 1.5)
-
18A941030612010 Sealing Washer (6 x 12 x 1)Sealing Washer (6 x 12 x 1)
-
19A960000601610 Hex. Washer Face Bolt M6 x 16Hex. Washer Face Bolt M6 x 16
-
20A941011013010 Plain WasherPlain Washer
