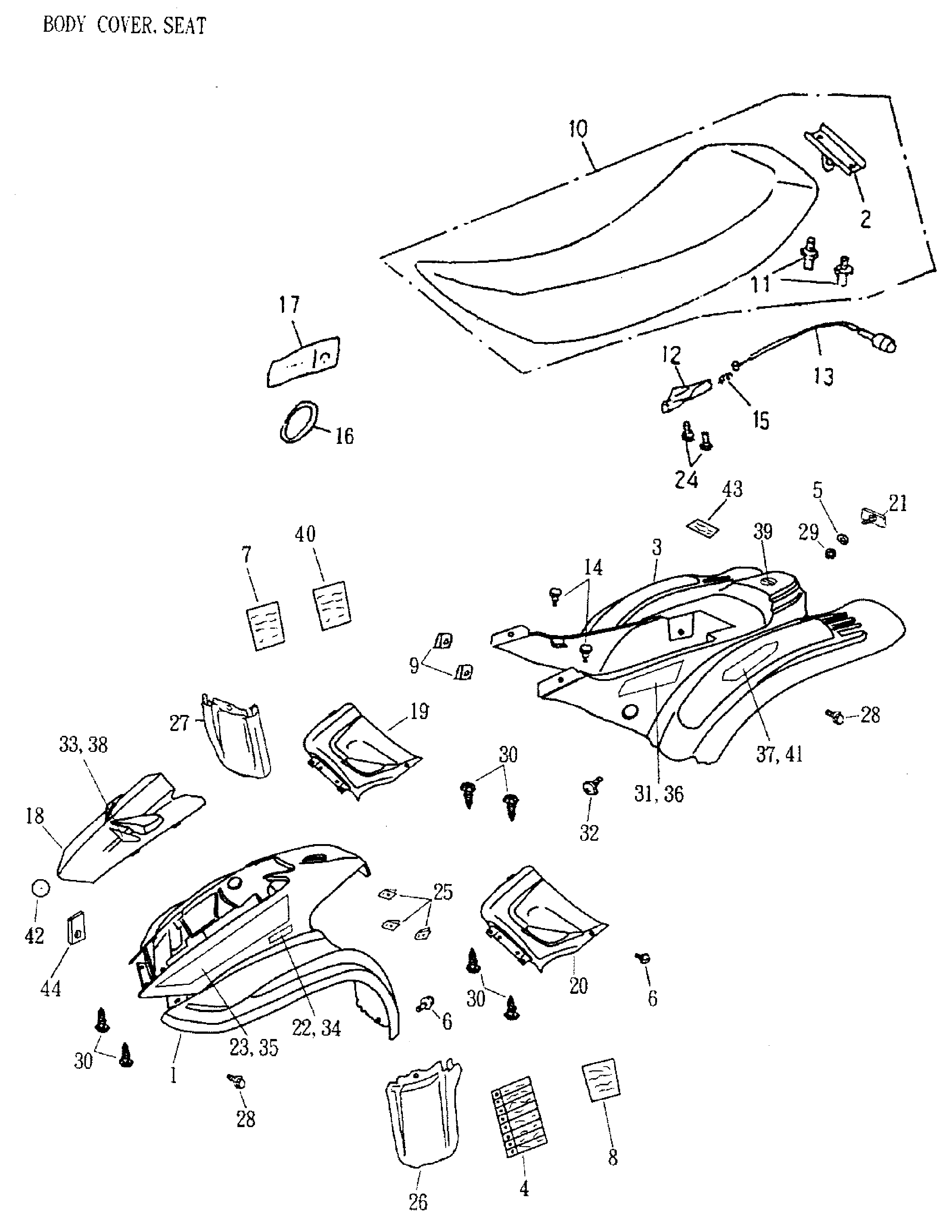

09- Body Cover, Seat для BRP Mini DS 90 4-strokes - 2005
-
№АртикулНазвание
-
1A64301166000RD FRONT COVERFRONT COVER
-
2A77201145000 SEAT BRACKETSEAT BRACKET
-
3A83400172000RD REAR COVERREAR COVER
-
4704900302 WARNING DECAL ENGLISH (ATV GENERAL)WARNING DECAL ENGLISH (ATV GENERAL)
-
5A941010615010 PLAIN WASHER (6.5 X 15 X 1)PLAIN WASHER (6.5 X 15 X 1)
-
69380006020S PAN HEAD PHILLIPS BOLT M6 X 20PAN HEAD PHILLIPS BOLT M6 X 20
-
7704900294 WARNING LABEL ENGLISH (UNDER 12)WARNING LABEL ENGLISH (UNDER 12)
-
8704900005 WARNING LABEL ENGLISH (PASSENGER)WARNING LABEL ENGLISH (PASSENGER)
-
9A903440600A U PLATE NUT (6 MM)U PLATE NUT (6 MM)
-
10A77200166000 SEAT ASS'YSEAT ASS'Y
-
11A77203145000 SEAT BOLTSEAT BOLT
-
12A77230145000 SEAT LOCK ASS'YSEAT LOCK ASS'Y
-
13A77212145000 SEAT RELEASE CABLESEAT RELEASE CABLE
-
14A901110601218C LADDER BOLT (6 X 12.5 X 3.5)LADDER BOLT (6 X 12.5 X 3.5)
-
15A77213145000 RESET SPRINGRESET SPRING
-
16A91350145000 RUBBER STRIPRUBBER STRIP
-
17A50120120000 TOOL BAGTOOL BAG
-
18A64302166000BK FRONT VISORFRONT VISOR
-
19A83504166000BK BODY COVER TRIM (RH)BODY COVER TRIM (RH)
-
20A83604166000BK BODY COVER TRIM (LH)BODY COVER TRIM (LH)
-
21A33741133000 REFLECTORREFLECTOR
-
22715900014 FOUR STROKE LABELFOUR STROKE LABEL
-
23715900011 L.H. LOGO DECALL.H. LOGO DECAL
-
24A960000601210G HEX WASHER FACE BOLT M6 X 12HEX WASHER FACE BOLT M6 X 12
-
25A903440500A U PLATE NUT (5 MM)U PLATE NUT (5 MM)
-
26A61100152000 L.H. FRONT FENDERL.H. FRONT FENDER
-
27A61101152000 R.H. FRONT FENDERR.H. FRONT FENDER
-
28A901110601418G LADDER BOLTLADDER BOLT
-
29A9035006000 NYLON NUT M6NYLON NUT M6
-
30A9390305012 TAPPING SCREW TRUSS HEAD PHILLIPS M5 X 12TAPPING SCREW TRUSS HEAD PHILLIPS M5 X 12
-
31715900013 L.H. REAR COVER FRONT SIDE STICKERL.H. REAR COVER FRONT SIDE STICKER
-
32A9380006025S PAN HEAD PHILLIPS BOLT M6 X 25PAN HEAD PHILLIPS BOLT M6 X 25
-
33A87700172000 DECAL KITDECAL KIT
-
34715900014 FOUR STROKE LABELFOUR STROKE LABEL
-
35715900010 R.H. LOGO DECALR.H. LOGO DECAL
-
36715900012 R.H. REAR COVER FRONT SIDE STICKERR.H. REAR COVER FRONT SIDE STICKER
-
37715900016 L.H. BOMBARDIER DECALL.H. BOMBARDIER DECAL
-
38A87700172000 DECAL KITDECAL KIT
-
39516000983 BOMBARDIER LOGO DECALBOMBARDIER LOGO DECAL
-
40704900293 WARNING LABEL ENGLISH (TIRE PRESSURE)WARNING LABEL ENGLISH (TIRE PRESSURE)
-
41715900015 R.H. BOMBARDIER DECALR.H. BOMBARDIER DECAL
-
42516000983 BOMBARDIER LOGO DECALBOMBARDIER LOGO DECAL
-
43A87723116000 WARNING LABEL ENGLISH (BATTERY)WARNING LABEL ENGLISH (BATTERY)
-
44A54137166000 BRACKET OF CDIBRACKET OF CDI
