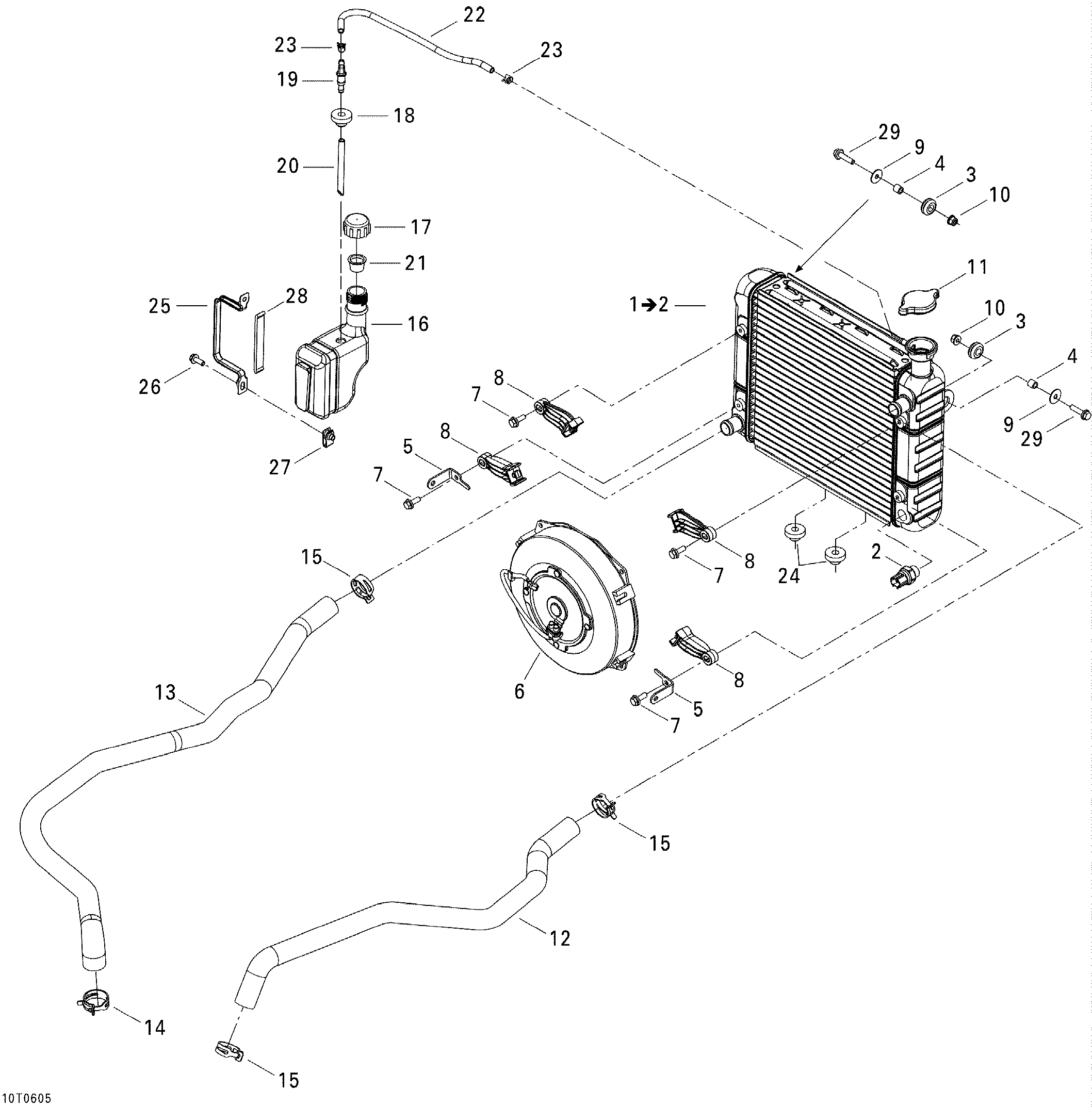

01- Cooling System для BRP Outlander 400 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1709200149 Radiator Ass'y. Includes 1 to 2Radiator Ass'y. Includes 1 to 2
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900045 BushingBushing
-
5705000677 Inner Fender SupportInner Fender Support
-
6709200158 Fan Ass'yFan Ass'y
-
7207562544 Hex Flanged Screw M6 X 25, Scotch GripHex Flanged Screw M6 X 25, Scotch Grip
-
8709200159 Fan SupportFan Support
-
9391302000 Flat WasherFlat Washer
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11709200033 Pressure CapPressure Cap
-
12709200077 Radiator Inlet HoseRadiator Inlet Hose
-
13709200123 Radiator Outlet HoseRadiator Outlet Hose
-
14293650108 Norma Spring ClampNorma Spring Clamp
-
15293650109 Norma Spring ClampNorma Spring Clamp
-
16709200099 Coolant TankCoolant Tank
-
17709200009 Tank CapTank Cap
-
18570135100 GrommetGrommet
-
19414580600 Elbow Male ConnectorElbow Male Connector
-
20415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
21709200034 Protection CapProtection Cap
-
22415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
23414554800 Universal Spring ClampUniversal Spring Clamp
-
24570135100 GrommetGrommet
-
25709200080 Radiator AnchorRadiator Anchor
-
26210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
27250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
28293250087 GasketGasket
-
29207662544 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
