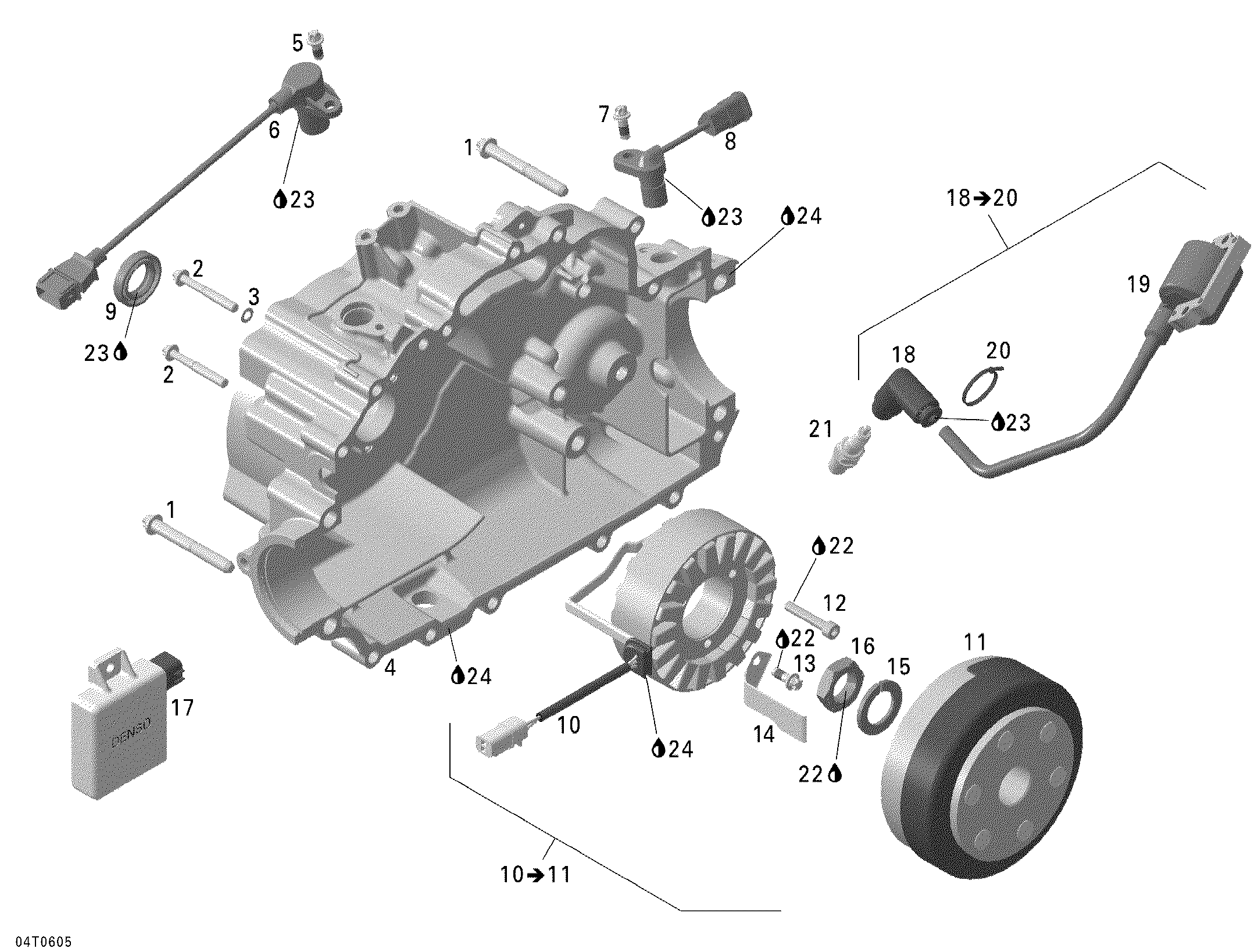

03- Magneto для BRP Outlander 400 STD 4 X 4 - 2006

№

Артикул

Название
1

420440402 Flanged Torx Screw M8 X 65

Flanged Torx Screw M8 X 65

680 ₽
2

420440322 Flanged Torx Screw M6 X 45

Flanged Torx Screw M6 X 45

420 ₽
3

420230415 Seal Washer

Seal Washer

670 ₽
5

420440162 Flanged Torx Screw M6 X 16

Flanged Torx Screw M6 X 16

1 120 ₽
6

420966570 Crank Position Trigger

Crank Position Trigger

49 280 ₽
7

420440162 Flanged Torx Screw M6 X 16

Flanged Torx Screw M6 X 16

1 120 ₽
8

420265622 Speed Sensor

Speed Sensor

11 700 ₽
9

420930392 Oil Seal

Oil Seal

5 670 ₽
10

420684040 Ac Generator. Includes 10 a 11

Ac Generator. Includes 10 a 11

0 ₽
10

420684850 Stator Ass'y

Stator Ass'y

41 750 ₽
11

420684045 Magneto Flywheel

Magneto Flywheel

84 530 ₽
12

420440272 Flanged Torx Screw M6 X 35

Flanged Torx Screw M6 X 35

280 ₽
13

420440162 Flanged Torx Screw M6 X 16

Flanged Torx Screw M6 X 16

1 120 ₽
14

420251270 Inner Cable Cover

Inner Cable Cover

940 ₽
15

420945759 Lock Washer

Lock Washer

660 ₽
16

420842237 Hex Nut M22

Hex Nut M22

0 ₽
17

420664285 Amplifier Box

Amplifier Box

68 660 ₽
18

420265358 Ignition Coil Ass'y. Includes 18 a 20

Ignition Coil Ass'y. Includes 18 a 20

17 280 ₽
18

420265240 Spark Plug Connector

Spark Plug Connector

0 ₽
21

707000246 Spark Plug, NGK DCP-R8E

Spark Plug, NGK DCP-R8E

360 ₽
22

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
23

293550030 Grease, Super Lube

Grease, Super Lube

3 520 ₽
24

293800081 Loctite 5910, 300 ml

Loctite 5910, 300 ml

7 550 ₽
