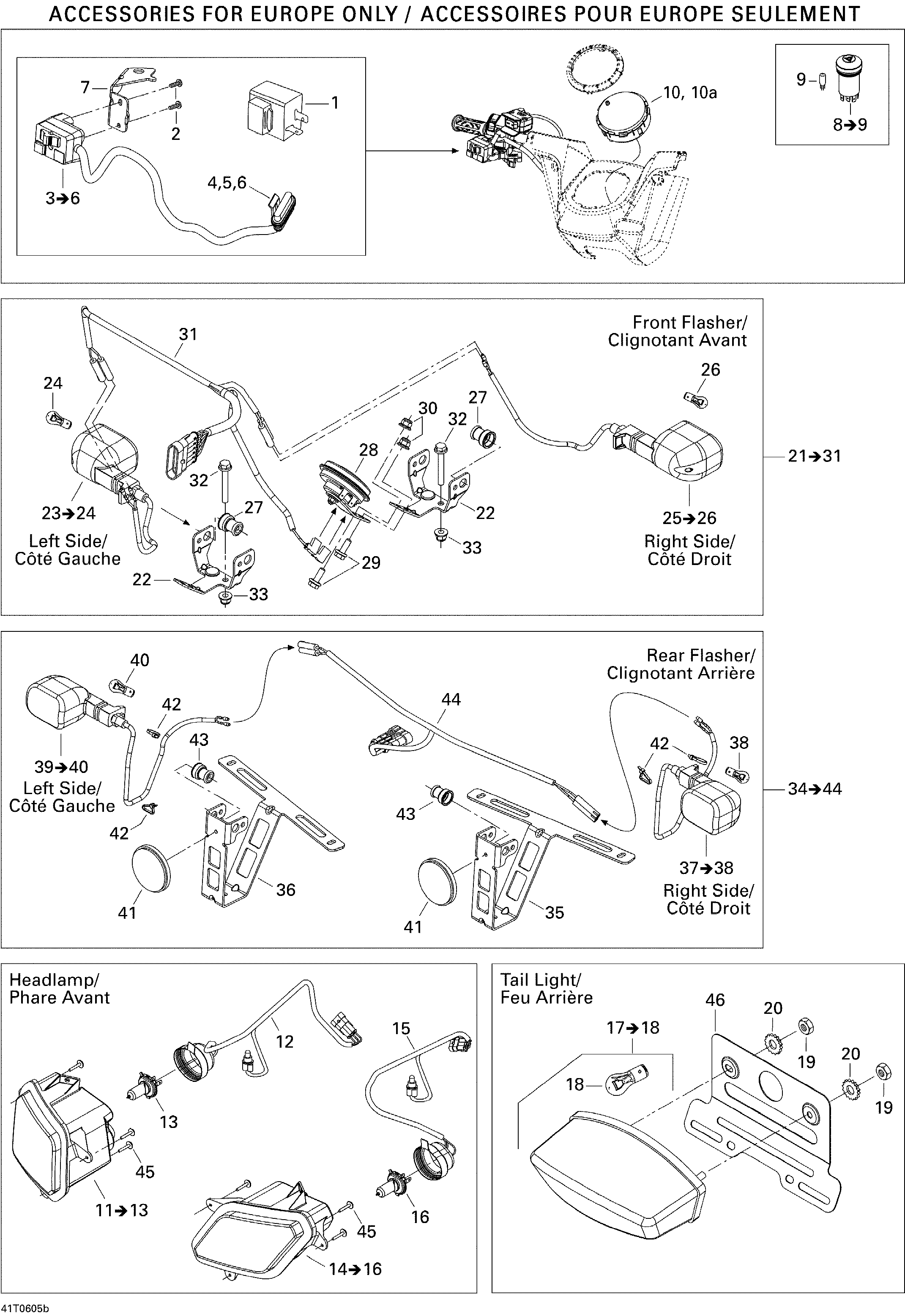

10- Electrical Accessories Europe для BRP Outlander 400 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1710000581 Flasher UnitFlasher Unit
-
2250000078 Screw Hex. M4 X 8Screw Hex. M4 X 8
-
3710000904 Flasher Switch. Includes 3 to 6Flasher Switch. Includes 3 to 6
-
4710000780 ConnectorConnector
-
5278001014 Female TerminalFemale Terminal
-
6278001013 Wire SealWire Seal
-
7710000905 Switch SupportSwitch Support
-
8710000367 Emergency Switch. Includes 8 to 9Emergency Switch. Includes 8 to 9
-
9710000661 Emergency Switch LightEmergency Switch Light
-
10710000860 Calibrated SpeedometerCalibrated Speedometer
-
11710000861 RH Headlamp. Includes 11 to 13RH Headlamp. Includes 11 to 13
-
12710000923 Headlamp HarnessHeadlamp Harness
-
13710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
14710000862 LH Headlamp. Includes 14 to 16LH Headlamp. Includes 14 to 16
-
15710000923 Headlamp HarnessHeadlamp Harness
-
16710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
17710000760 Tail Light. Includes 17 to 18Tail Light. Includes 17 to 18
-
18410504100 Tail Light BulbTail Light Bulb
-
19232061600 Hex Nut M6Hex Nut M6
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
22710000893 BracketBracket
-
23710000546 Flasher. Includes 23 to 24Flasher. Includes 23 to 24
-
25710000547 Flasher. Includes 25 to 26Flasher. Includes 25 to 26
-
27710000765 Protection CapProtection Cap
-
28710000783 HornHorn
-
29207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
30233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
31710000814 Front Fender HarnessFront Fender Harness
-
32207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
33233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
35710000865 RH Flasher Support BracketRH Flasher Support Bracket
-
36710000867 LH Flasher Support BracketLH Flasher Support Bracket
-
37710000546 Flasher. Includes 37 to 38Flasher. Includes 37 to 38
-
39710000547 Flasher. Includes 39 to 40Flasher. Includes 39 to 40
-
41710000775 ReflectorReflector
-
42293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
43710000765 Protection CapProtection Cap
-
44710000931 Rear Fender HarnessRear Fender Harness
-
45250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
46705002230 Plate SupportPlate Support
