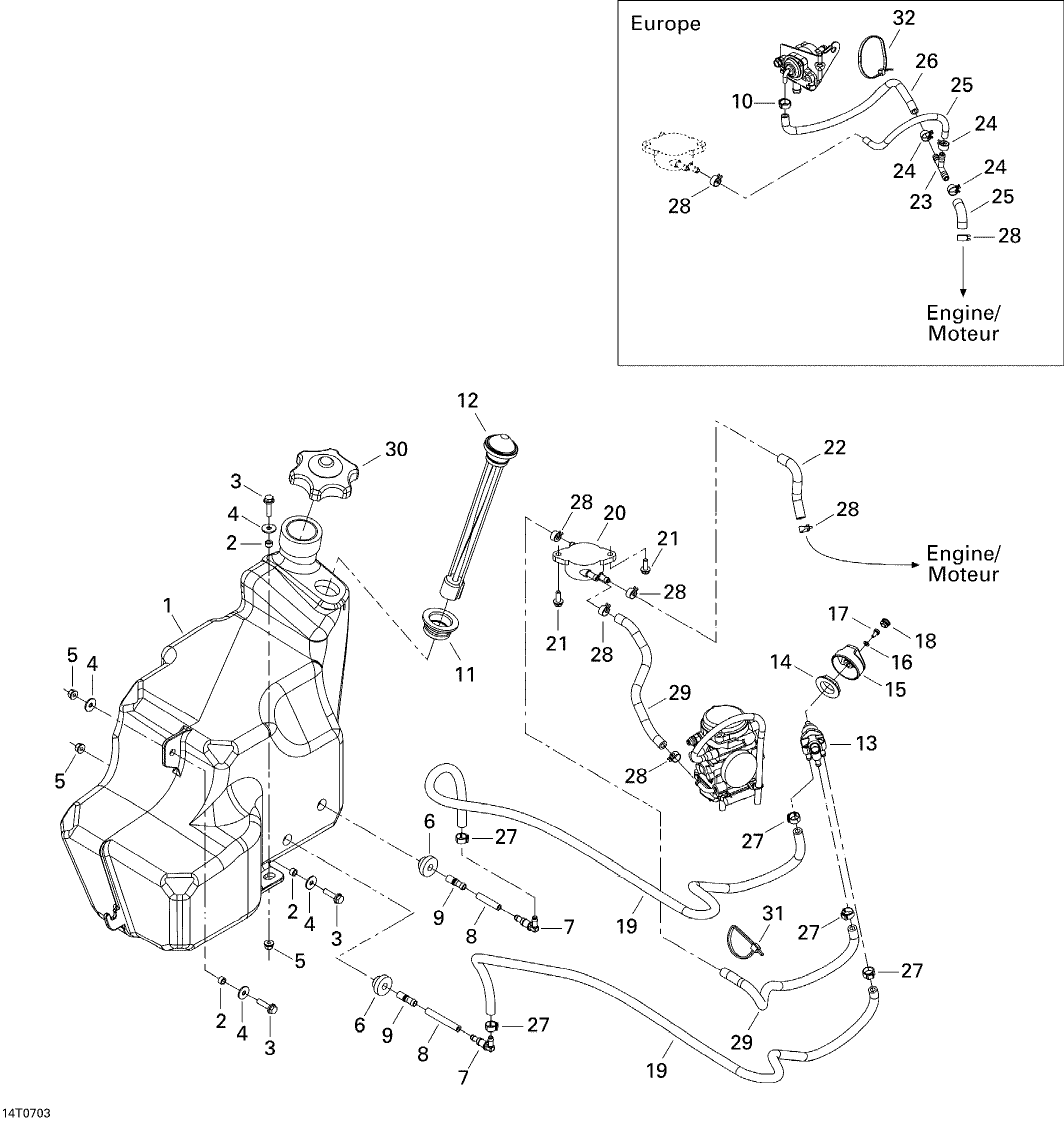

02- Fuel Tank для BRP Outlander MAX 400 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1709000062 Fuel TankFuel Tank
-
2293900029 BushingBushing
-
3207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
4391302000 Flat WasherFlat Washer
-
5233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
6570045500 GrommetGrommet
-
7414580600 Elbow Male ConnectorElbow Male Connector
-
8415080200 Polyurethane HosePolyurethane Hose
-
9414865700 Fuel FilterFuel Filter
-
10293650044 Oetiker Clamp. EuropeOetiker Clamp. Europe
-
11293720058 GrommetGrommet
-
12709000083 Fuel GaugeFuel Gauge
-
13275500098 Fuel ValveFuel Valve
-
14212100009 Hex Plastic NutHex Plastic Nut
-
15275500263 Fuel Valve Knob, BlackFuel Valve Knob, Black
-
16234040600 Flat Washer 4 mmFlat Washer 4 mm
-
17208640860 Pan Head Phillips Screw M4 X 8Pan Head Phillips Screw M4 X 8
-
18275500241 Fuel Valve Cap Plug, BlackFuel Valve Cap Plug, Black
-
19415079800 Hose 1/4''Hose 1/4''
-
20707200183 Fuel PumpFuel Pump
-
21210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
22709000148 Pulsing Formed HosePulsing Formed Hose
-
23293710024 T-fitting. EuropeT-fitting. Europe
-
24414415200 Universal Spring Clamp. EuropeUniversal Spring Clamp. Europe
-
25709000115 Pulsation Hose. EuropePulsation Hose. Europe
-
26709000114 Pulsation Hose. EuropePulsation Hose. Europe
-
27293650042 Oetiker ClampOetiker Clamp
-
28414415200 Universal Spring ClampUniversal Spring Clamp
-
29415079800 Hose 1/4''Hose 1/4''
-
30709000059 Fuel CapFuel Cap
-
31414115200 Tie-rap 180 mmTie-rap 180 mm
-
32293750008 Tie-Rap 350 mm. EuropeTie-Rap 350 mm. Europe
