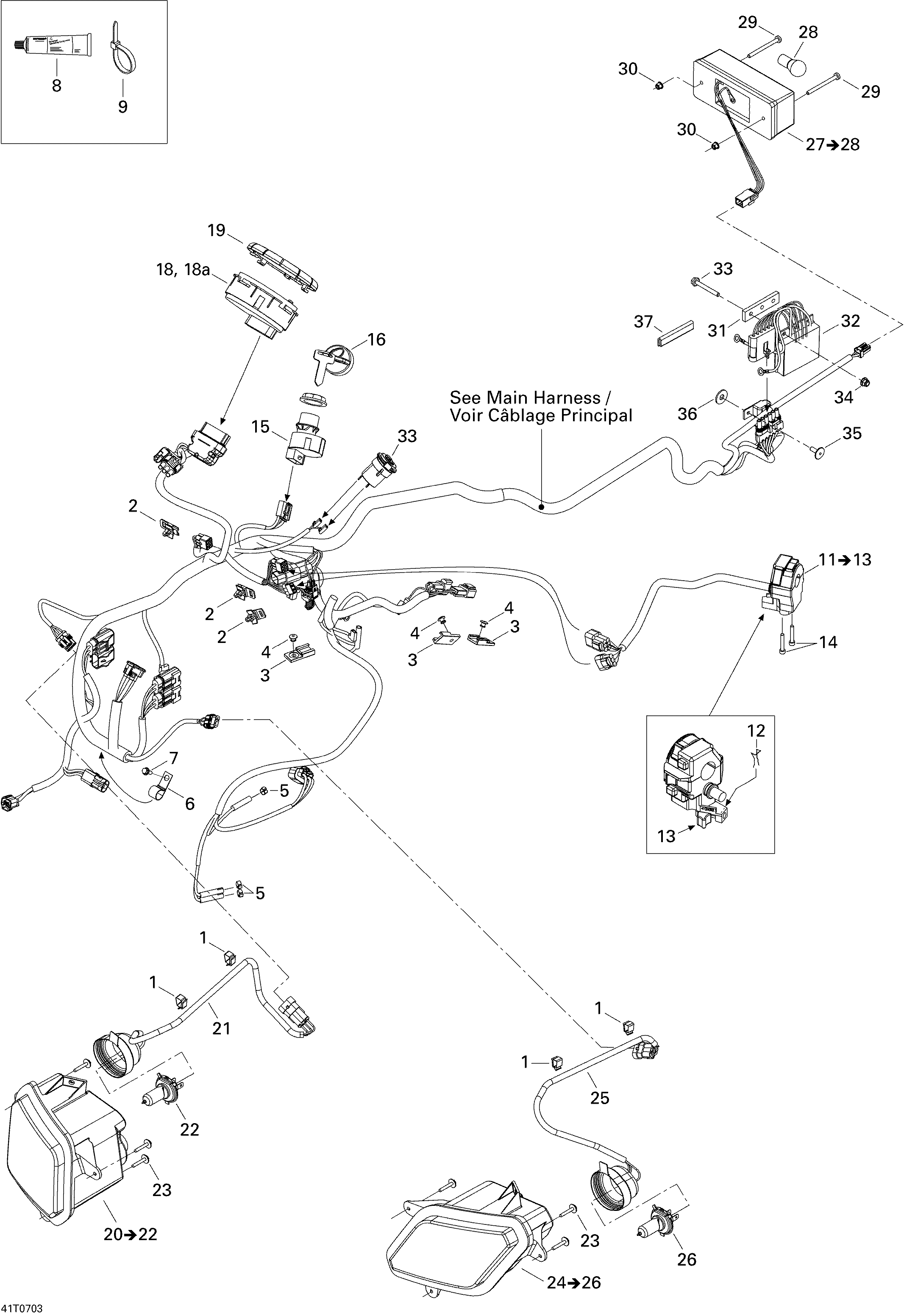

10- Electrical Accessories для BRP Outlander MAX 400 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6705600311 ClampClamp
-
7210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9293750041 Tie-rap 627 mmTie-rap 627 mm
-
11710000311 Multi-Fonction Handle. Includes 11 to 13Multi-Fonction Handle. Includes 11 to 13
-
12710000631 ClipClip
-
13710000632 Choke LeverChoke Lever
-
14205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
15710001030 Ignition SwitchIgnition Switch
-
16715900029 Blank KeyBlank Key
-
18710000850 SpeedometerSpeedometer
-
18a415128938 Replacement Lens, SpeedometerReplacement Lens, Speedometer
-
19710000353 Trim RingTrim Ring
-
20710000697 RH Headlamp. Includes 20 to 22RH Headlamp. Includes 20 to 22
-
21710000828 Light HarnessLight Harness
-
22710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
23250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
24710000641 LH Headlamp. Includes 24 to 26LH Headlamp. Includes 24 to 26
-
25710000828 Light HarnessLight Harness
-
26710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
27710000711 Tail Light Housing Ass'y. Includes 27 to 28Tail Light Housing Ass'y. Includes 27 to 28
-
28410504100 Tail Light BulbTail Light Bulb
-
29208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
30233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
31710000912 SpacerSpacer
-
32710000907 Voltage Regulator A'ssyVoltage Regulator A'ssy
-
33207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
33861507200 Outlet Power Kit, 12 VoltsOutlet Power Kit, 12 Volts
-
34233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
35390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
36391301700 WasherWasher
-
37271000110 Protection TrimProtection Trim
