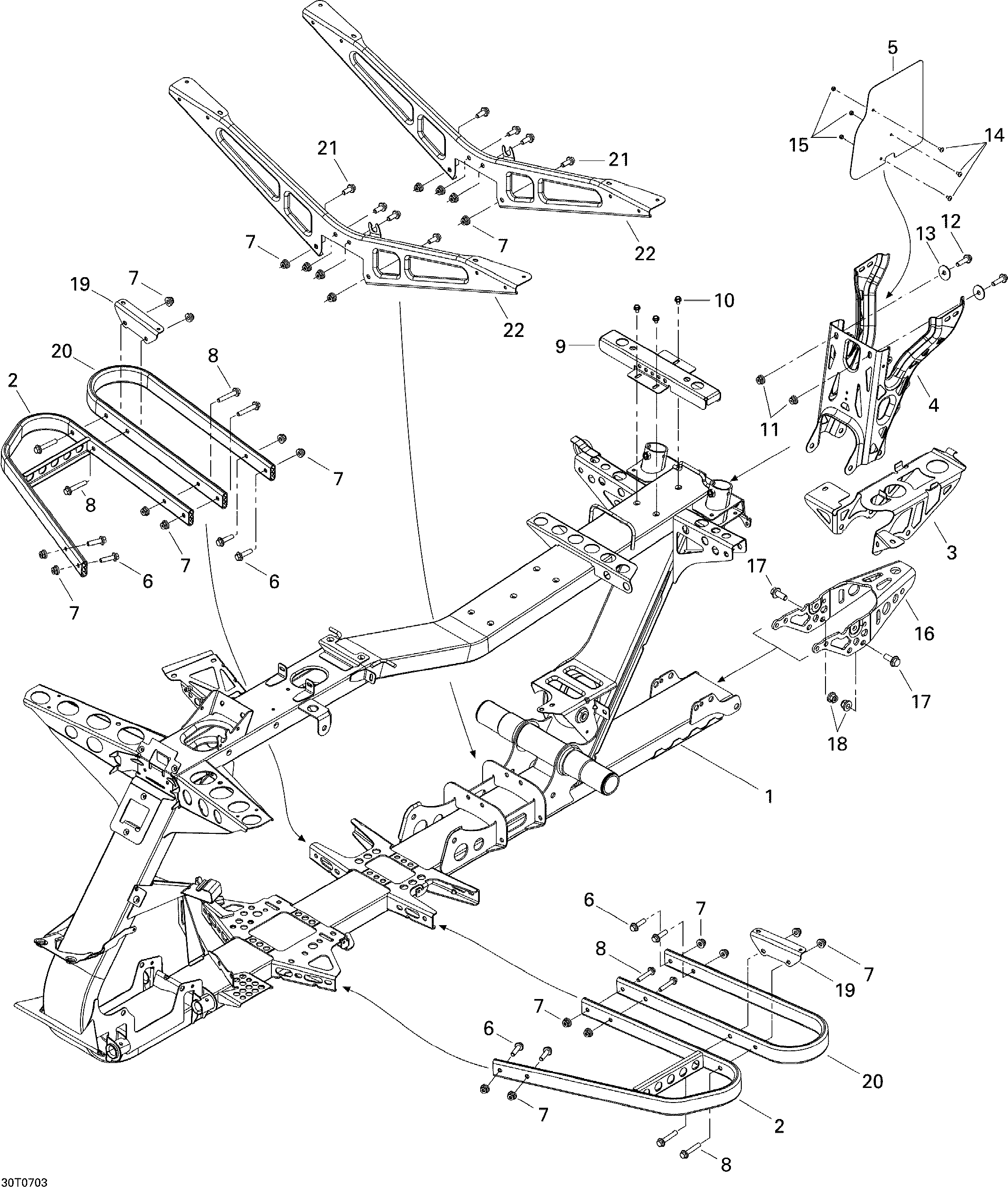

09- Frame для BRP Outlander MAX 400 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1705201265 Frame, BlackFrame, Black
-
2705200872 FootrestFootrest
-
3705201105 Battery Support BaseBattery Support Base
-
4705201445 Rear Battery Support, BlackRear Battery Support, Black
-
5705200936 Heat ShieldHeat Shield
-
6207683044 Hex Flanged Screw M8 X 30Hex Flanged Screw M8 X 30
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
9705201260 Seat SupportSeat Support
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12207683044 Hex Flanged Screw M8 X 30Hex Flanged Screw M8 X 30
-
13224081301 Flat WasherFlat Washer
-
14250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
15232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
16705201112 Trailer Hook, BlackTrailer Hook, Black
-
17207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
18233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
19705201535 Support PlateSupport Plate
-
20705200896 Rear FootrestRear Footrest
-
21207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
22705200812 Rear Diagonal BraceRear Diagonal Brace
