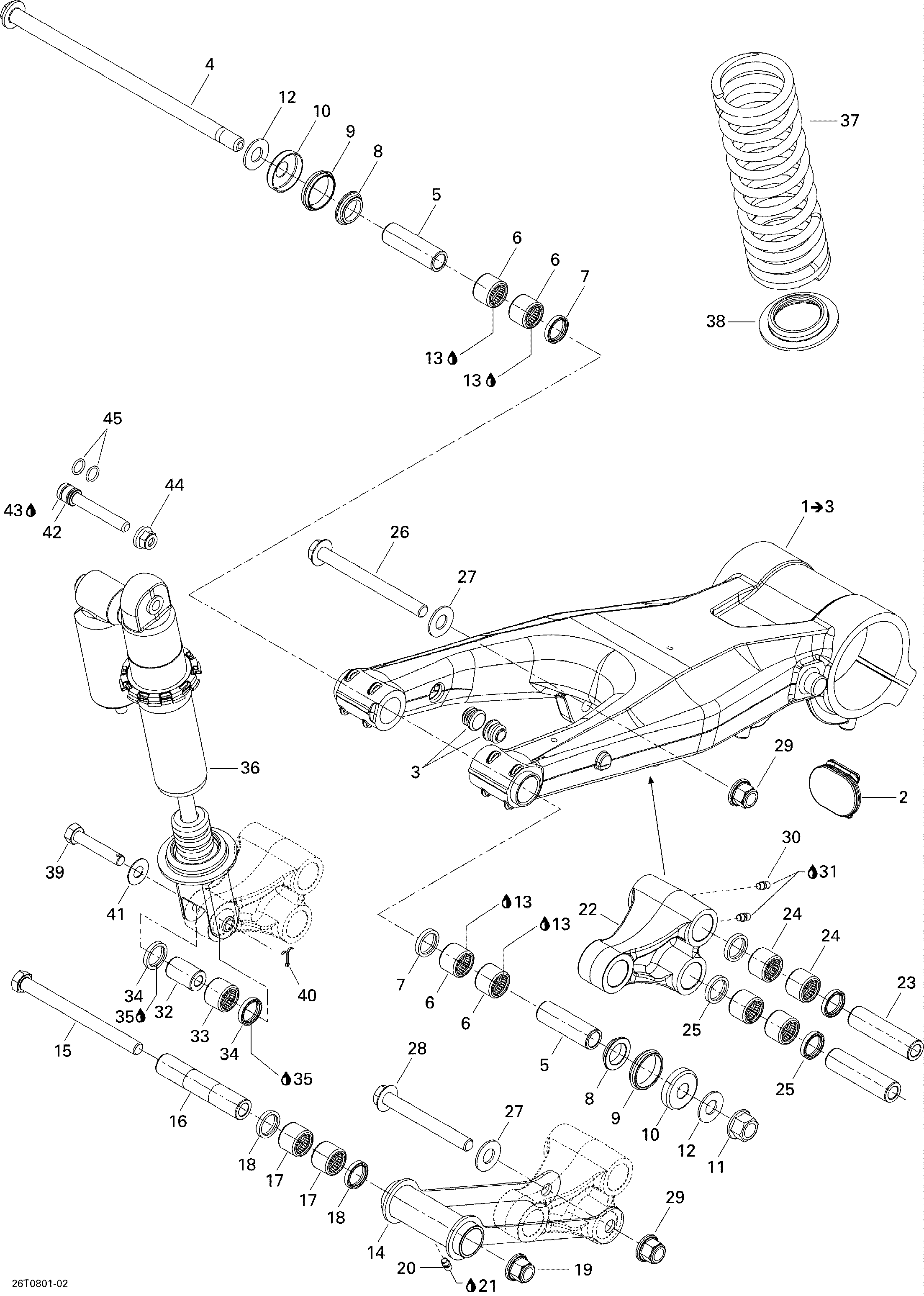

08- Rear Suspension для BRP DS 450 - 2008
-
№АртикулНазвание
-
1706000406 Swing Arm Ass'y. Includes 1 to 3Swing Arm Ass'y. Includes 1 to 3
-
2706000459 Swing Arm CapSwing Arm Cap
-
3517302716 CapCap
-
4250000358 Hex. Screw M14 X 287Hex. Screw M14 X 287
-
5706000441 BushingBushing
-
6706000447 BearingBearing
-
7706000448 SealSeal
-
8706000423 BushingBushing
-
9706000424 SealSeal
-
10706200480 Seal CapSeal Cap
-
11232571436 Elastic Stop NutElastic Stop Nut
-
12250200079 Flat WasherFlat Washer
-
13293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
14706000445 LeverLever
-
15230024586 Hexagonal Screw M12 x 145Hexagonal Screw M12 x 145
-
16706000421 BushingBushing
-
17706000447 BearingBearing
-
18706000448 SealSeal
-
19233221434 Flange Elastic NutFlange Elastic Nut
-
20250000315 Grease FittingGrease Fitting
-
21293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
22706200465 Secondary LeverSecondary Lever
-
23706000422 BushingBushing
-
24706000447 BearingBearing
-
25706000448 SealSeal
-
26230223086 Scoth Grip Hexagonal ScrewScoth Grip Hexagonal Screw
-
27250200086 Flat WasherFlat Washer
-
28230020586 Hexagonal Screw M12 X 105Hexagonal Screw M12 X 105
-
29233221434 Flange Elastic NutFlange Elastic Nut
-
30250000315 Grease FittingGrease Fitting
-
31293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
32706000449 BushingBushing
-
33706000447 BearingBearing
-
34706000448 SealSeal
-
35293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
36706000504 Rear ShockRear Shock
-
37706000505 SpringSpring
-
38706000567 Spring StopperSpring Stopper
-
39250000254 Bolt M10Bolt M10
-
40250400034 Cotter PinCotter Pin
-
41250200074 Flat WasherFlat Washer
-
42706000541 ScrewScrew
-
43293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
44233201436 Flanged Elastic NutFlanged Elastic Nut
-
45504151954 O-RingO-Ring
