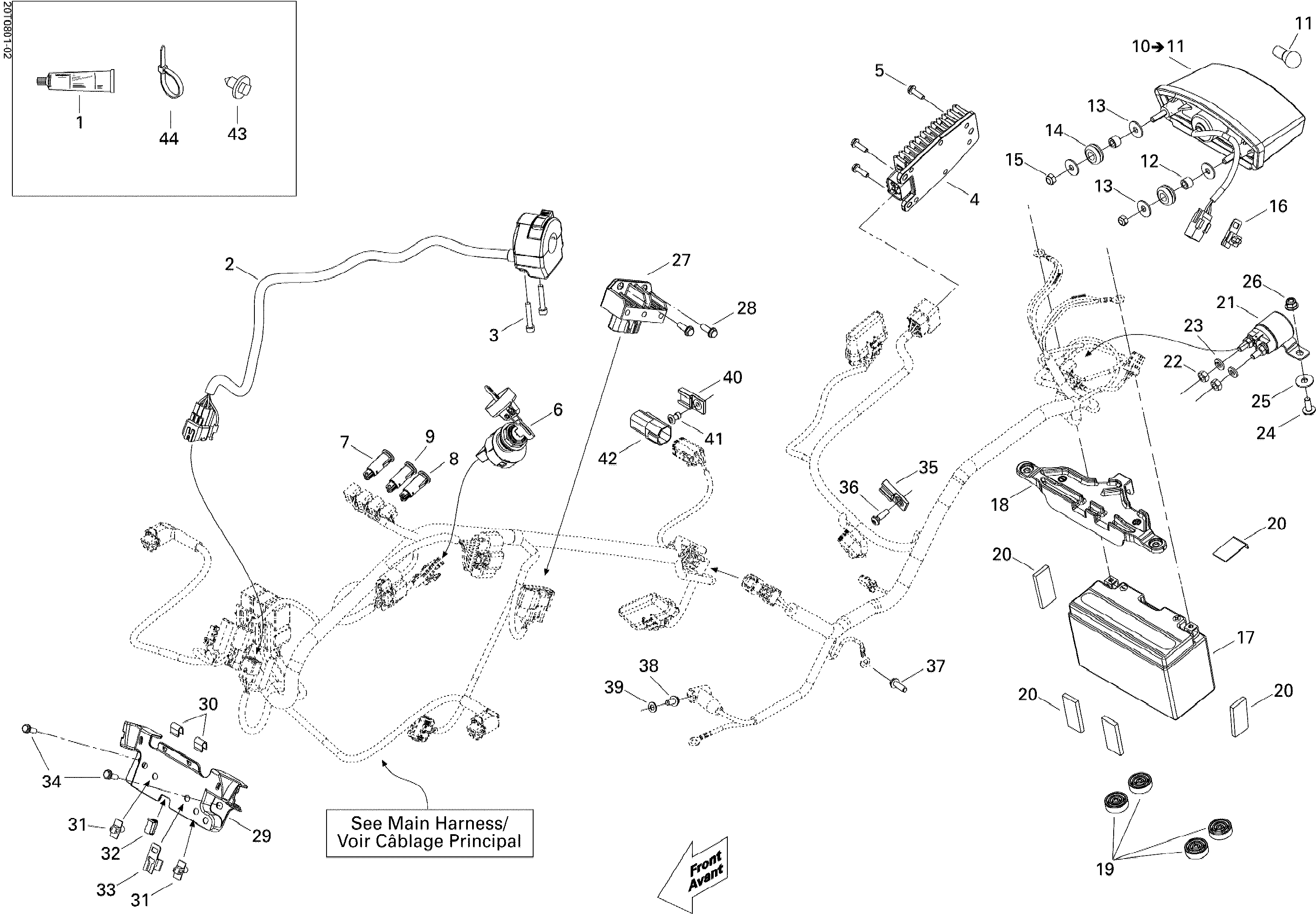

10- Electrical System для BRP DS 450 - 2008
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2710000975 Multi Function SwitchMulti Function Switch
-
3205053088 Socket Head ScrewSocket Head Screw
-
4710000803 RectifierRectifier
-
5207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
6710001207 Ingnition SwitchIngnition Switch
-
7710001010 Pilot Lamp, EnginePilot Lamp, Engine
-
8710001259 Pilot Lamp, Low FuelPilot Lamp, Low Fuel
-
9710001012 Pilot Lamp, NeutralPilot Lamp, Neutral
-
10710001041 Tail Light. Includes 10 to 11Tail Light. Includes 10 to 11
-
11410504100 Tail Light BulbTail Light Bulb
-
12293900089 SpacerSpacer
-
13250200082 Flat WasherFlat Washer
-
14293720053 GrommetGrommet
-
15232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
16515175283 Housing SupportHousing Support
-
17715500305 BatteryBattery
-
17710001297 BatteryBattery
-
18710000963 Battery SupportBattery Support
-
19708000506 Rubber StopperRubber Stopper
-
20293830129 GasketGasket
-
21710001364 Starter RelayStarter Relay
-
22232061600 Hex. Nut M6Hex. Nut M6
-
23234161601 Lock Washer Helical M6Lock Washer Helical M6
-
24250000223 Torx ScrewTorx Screw
-
25250200097 Flat WasherFlat Washer
-
26233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
27710001028 Light ControlLight Control
-
28207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
29710001074 Housing SupportHousing Support
-
30414479100 ClipClip
-
31293730018 Mount DartMount Dart
-
32409014200 ClipClip
-
33515175283 Housing SupportHousing Support
-
34207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
35515175821 ClipClip
-
36250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
37207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
38207551034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
39234051430 Flat WasherFlat Washer
-
40270000141 ClipClip
-
41390909200 Avex RivetAvex Rivet
-
42278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
43293730018 Mount DartMount Dart
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
44414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
44293750041 Tie-rap 627 mmTie-rap 627 mm
-
45293200003 Seal, MeterSeal, Meter
