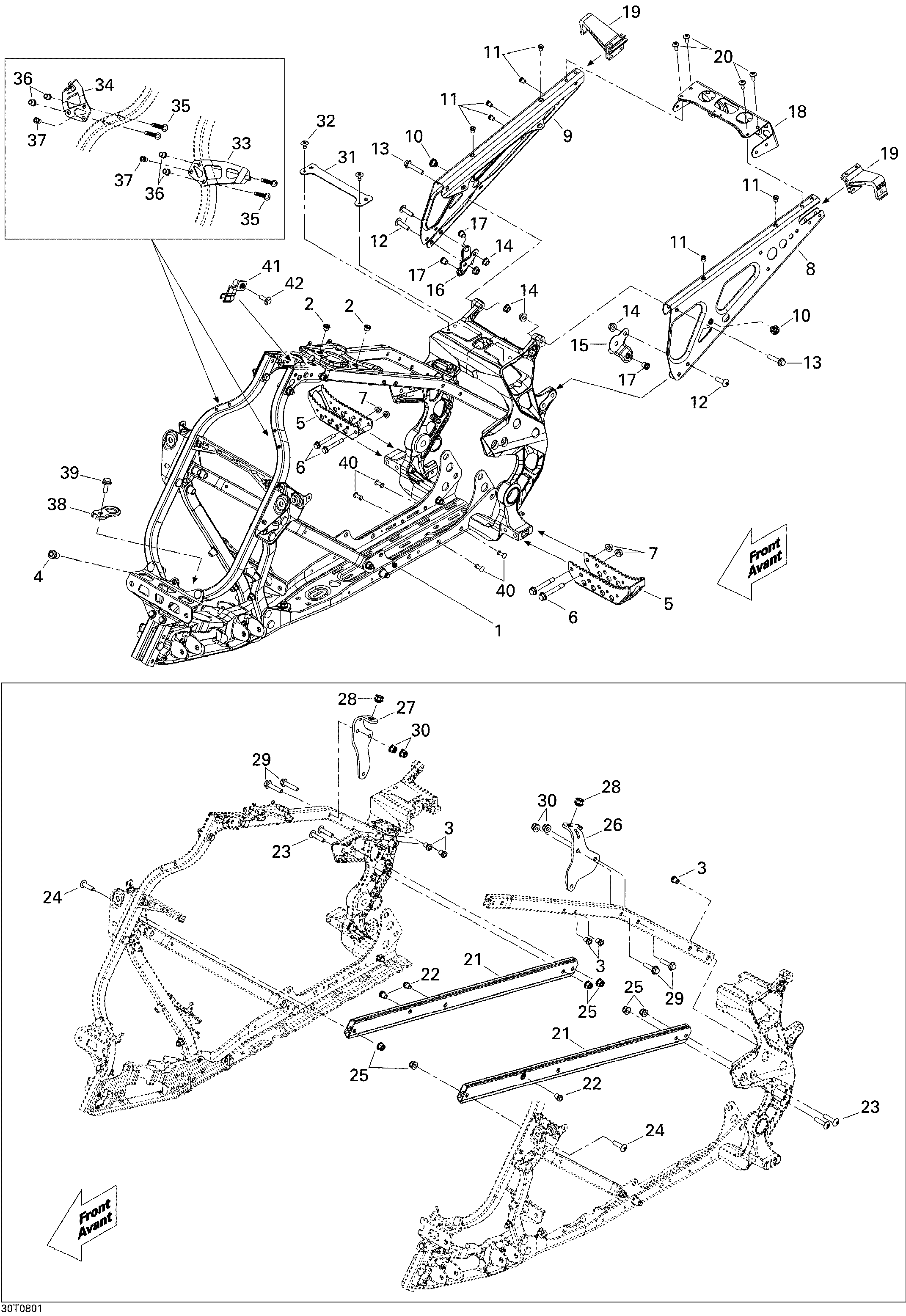

09- Frame для BRP DS 450 - 2008
-
№АртикулНазвание
-
1705201043 Frame Ass'yFrame Ass'y
-
2293450274 InsertInsert
-
3293450268 InsertInsert
-
4293450275 InsertInsert
-
5705201044 FootrestFootrest
-
6207586034 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
7233181434 Hex. Flanged Nut, M8Hex. Flanged Nut, M8
-
8705201081 LH ExtensionLH Extension
-
9705201339 RH ExtensionRH Extension
-
10293450274 InsertInsert
-
11293450268 InsertInsert
-
12250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
13207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
14233181434 Hex. Flanged Nut, M8Hex. Flanged Nut, M8
-
15707600399 LH BracketLH Bracket
-
16705201485 RH BracketRH Bracket
-
17293450275 InsertInsert
-
18705201214 Plate SupportPlate Support
-
19705002094 Rear Fender SupportRear Fender Support
-
20250000223 Torx ScrewTorx Screw
-
21705201059 Side MemberSide Member
-
22293450275 InsertInsert
-
23250000256 Torx Screw M8 X 35Torx Screw M8 X 35
-
24250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
25233281434 Hex Flanged Elastic NutHex Flanged Elastic Nut
-
26705201380 LH Engine SupportLH Engine Support
-
27705201381 RH Engine SupportRH Engine Support
-
28293450278 InsertInsert
-
29207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
30233281434 Hex Flanged Elastic NutHex Flanged Elastic Nut
-
31705201406 Rear BraceRear Brace
-
32293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
33705201461 LH Body Attachment PlateLH Body Attachment Plate
-
34705201462 RH Body Attachment PlateRH Body Attachment Plate
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37293450268 InsertInsert
-
38705201550 Radiator GuideRadiator Guide
-
39207561634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
40390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41707000561 Cable SupportCable Support
-
42243141630 Hex Plastic Screw M4.8 X 16Hex Plastic Screw M4.8 X 16
