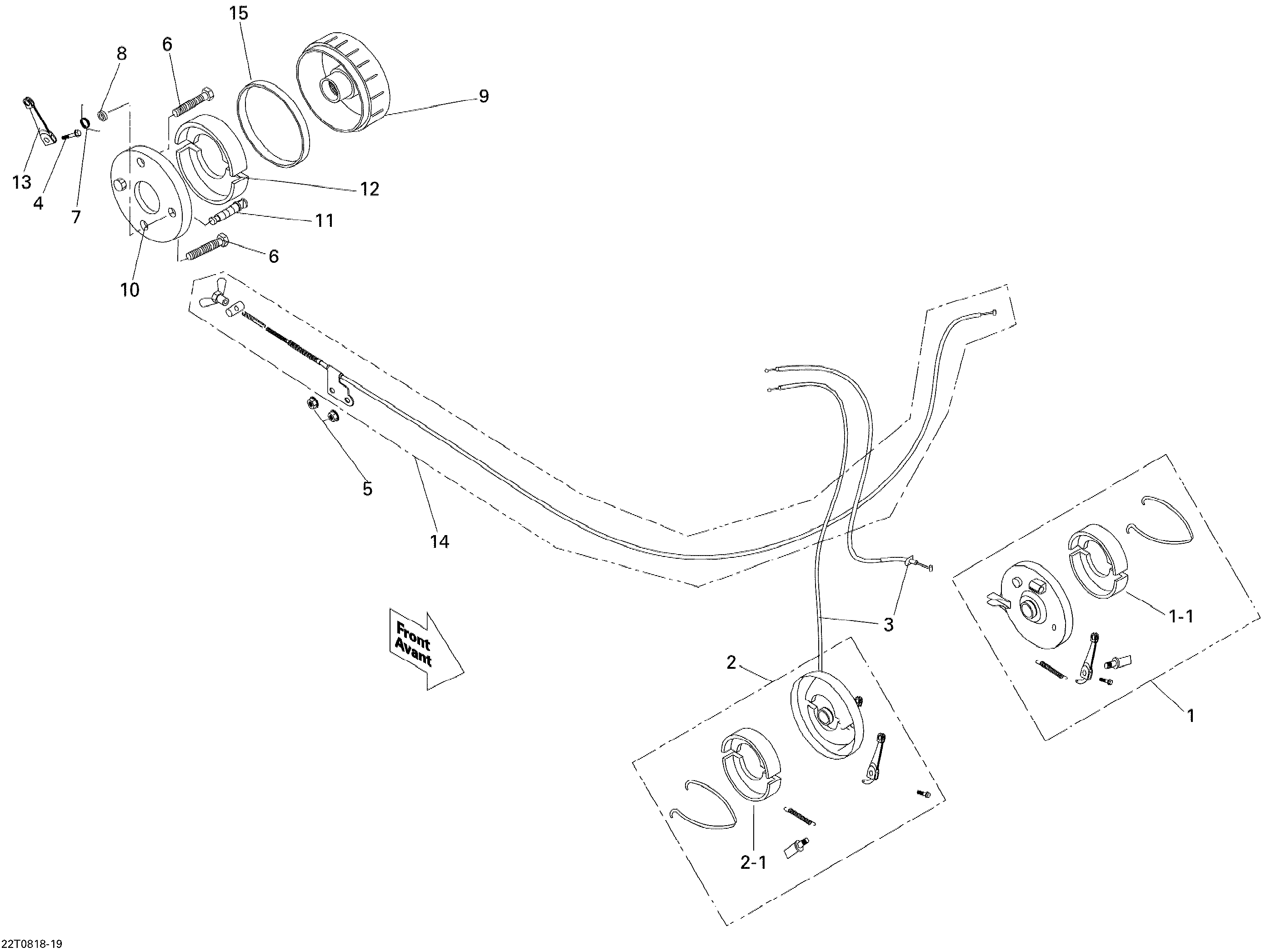

06- Brakes для BRP Mini DS 70cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V45201MAA000 Left Front Brake Ass'yLeft Front Brake Ass'y
-
1-1V45120MAA000 Front Brake Shoe KitFront Brake Shoe Kit
-
2V45202MAA000 Right Front Brake Ass'yRight Front Brake Ass'y
-
2-1V45120MAA000 Front Brake Shoe KitFront Brake Shoe Kit
-
3V45450DGF030 Front Brake CableFront Brake Cable
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6V9200012050 Hex. ScrewHex. Screw
-
7V45130MAA000 Tension SpringTension Spring
-
8V91352MAA000 Cam Shaft RubberCam Shaft Rubber
-
9V42610MAA000 Rear DrumRear Drum
-
10V42605MAA000 Rear Brake PanelRear Brake Panel
-
11V43141MAA000 Rear Brake CamRear Brake Cam
-
12V43121MAA000 Rear Brake Shoe KitRear Brake Shoe Kit
-
13V43410MAA000 Rear Brake ArmRear Brake Arm
-
14V43450DGF030 Rear Brake CableRear Brake Cable
-
15V53446MAA000 Hub PackingHub Packing
