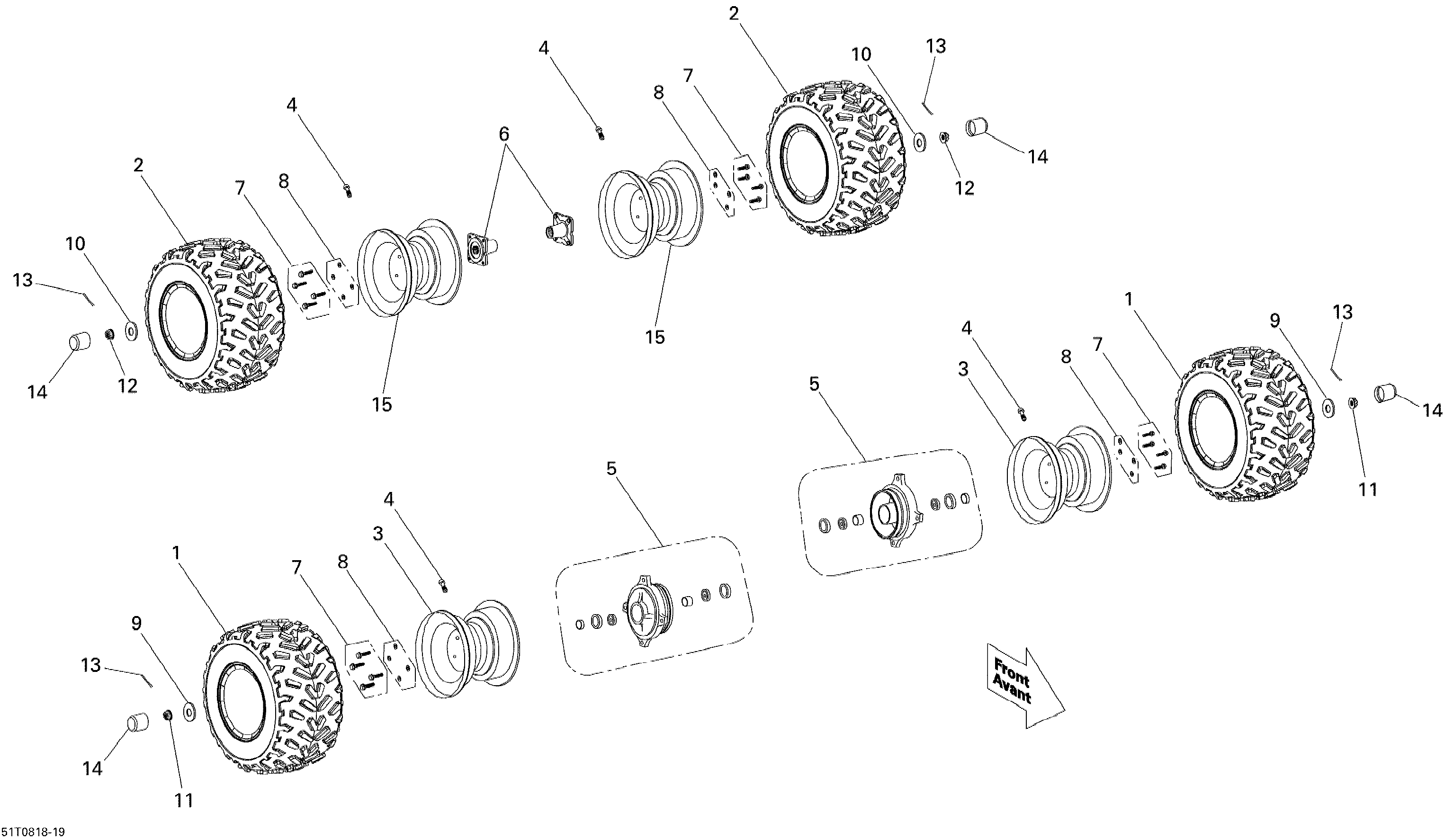

07- Wheels And Tires для BRP Mini DS 70cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V42711DGF000 Front TireFront Tire
-
2V42712DGF000 Rear TireRear Tire
-
3V42707DGF000 Front RimFront Rim
-
4V42751MAA000 Rim ValveRim Valve
-
5V44610MAA00GSL Front HubFront Hub
-
6V44630MAA00GSL Rear Wheel Axle Fixed BracketRear Wheel Axle Fixed Bracket
-
7V9200010020 Hex. ScrewHex. Screw
-
8234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
9V55001MAA000 Front Wheel WasherFront Wheel Washer
-
10V55002MAA000 Rear Wheel WasherRear Wheel Washer
-
11V9405112000 Castle Nut M12Castle Nut M12
-
12V9405214000 Castle Nut M14Castle Nut M14
-
13V9420130032 Cotter PinCotter Pin
-
14V53456MAA000 Rubber CapRubber Cap
-
15V40706DGF000 Rear RimRear Rim
