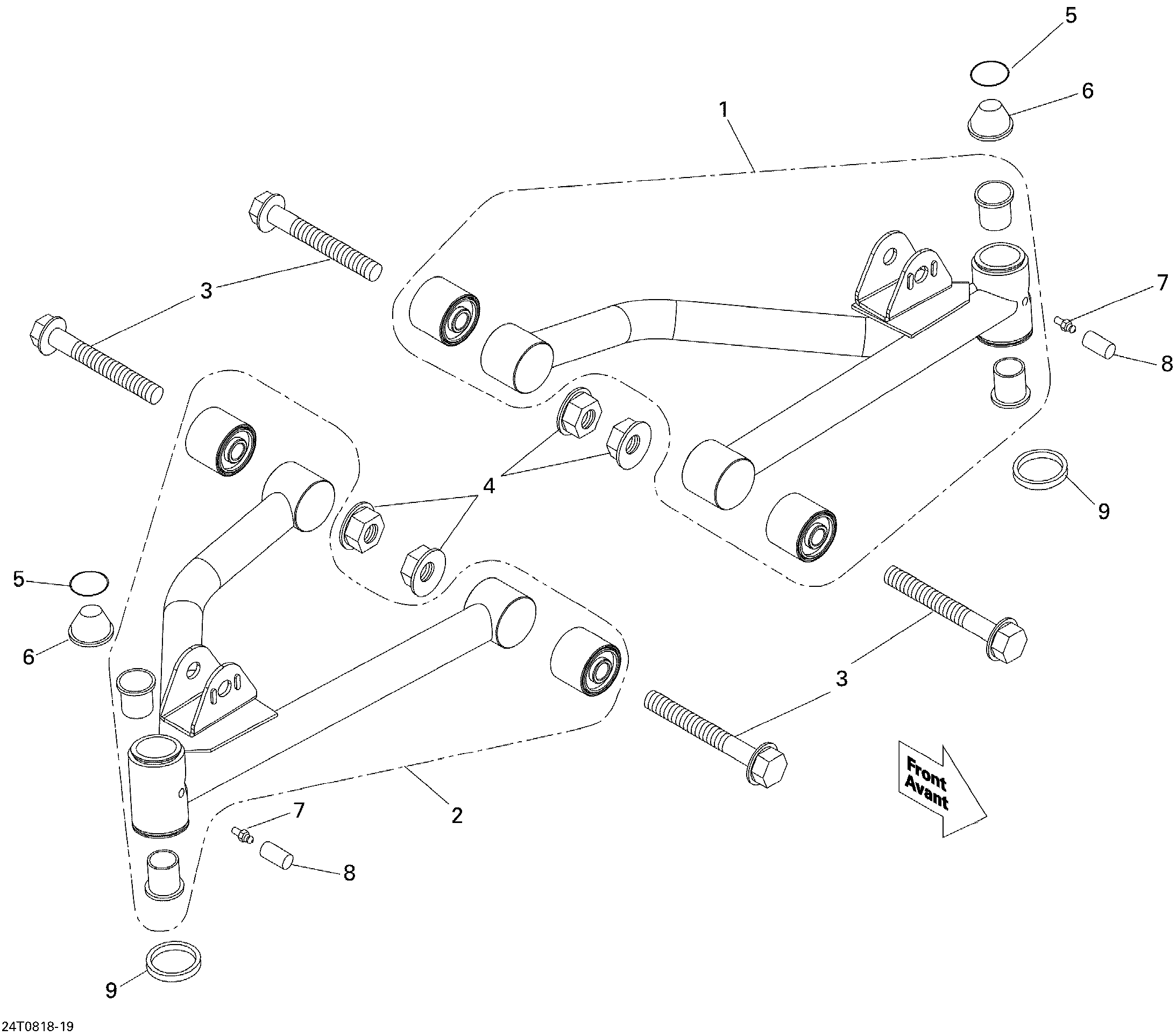

07- Front Suspension Arm для BRP Mini DS 70cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V51449DGF000 LH Suspension ArmLH Suspension Arm
-
2V51459DGF000 RH Suspension ArmRH Suspension Arm
-
3V9600010048 Hexagonal Flange ScrewHexagonal Flange Screw
-
4A9035010000 Nut Nylon M10Nut Nylon M10
-
5V95010CEK000 BushingBushing
-
6V52247DGF000 Rubber ProtectorRubber Protector
-
7V43350MAA000 Grease ValveGrease Valve
-
8V52225MAA000 Grease Valve CapGrease Valve Cap
-
9V52245MAA000 Seal CoverSeal Cover
