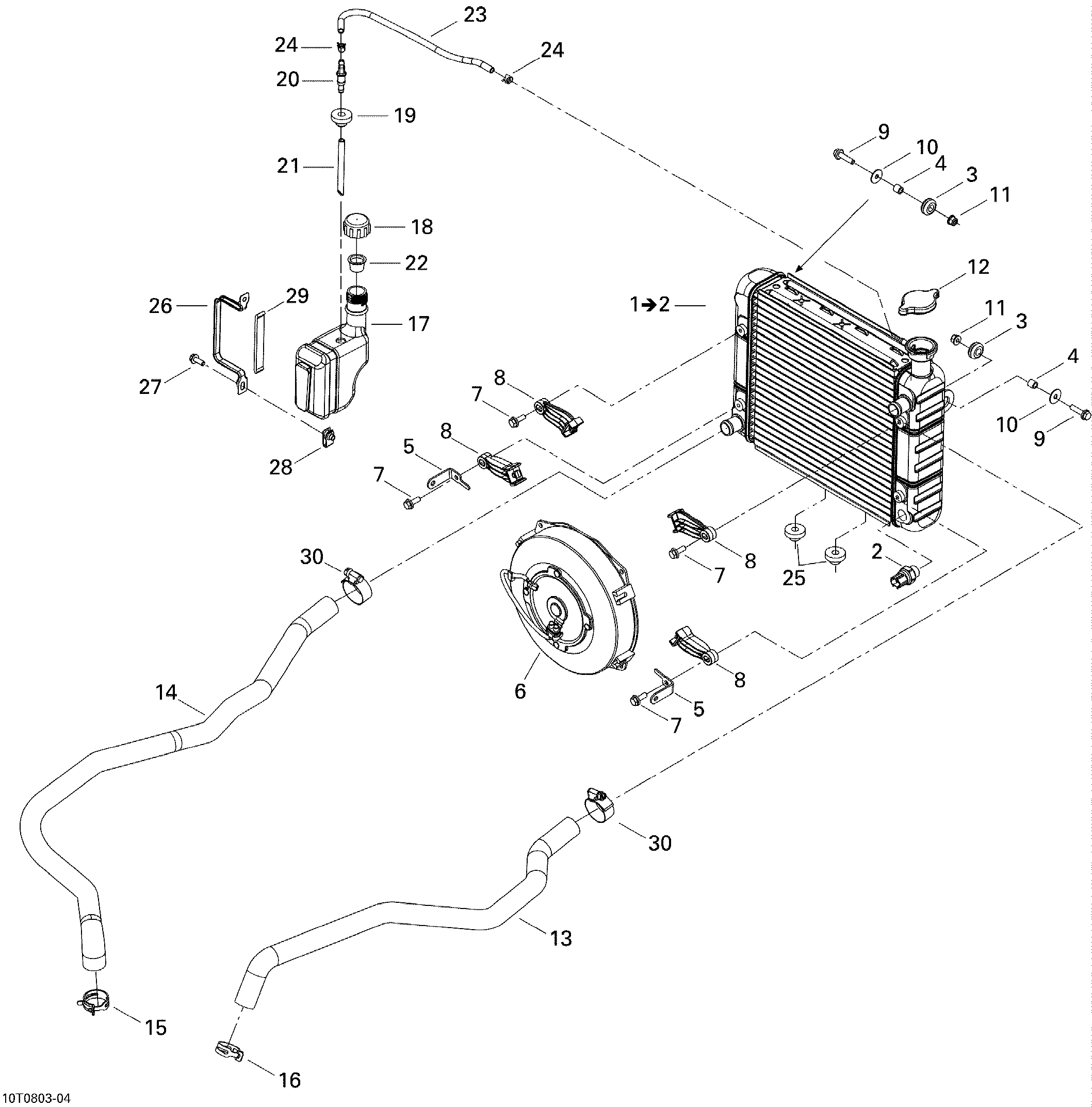

01- Cooling System для BRP Outlander MAX 400 XT - 2008
-
№АртикулНазвание
-
1709200149 Radiator Ass'y. Includes 1 to 2Radiator Ass'y. Includes 1 to 2
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900045 BushingBushing
-
5709200210 SupportSupport
-
6709200158 Fan Ass'yFan Ass'y
-
7207562544 Flanged Hex. Screw M6 X 25, Scotch GripFlanged Hex. Screw M6 X 25, Scotch Grip
-
8709200159 Fan SupportFan Support
-
9207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10250200082 Flat WasherFlat Washer
-
11233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
12709200207 Pressure CapPressure Cap
-
13709200170 Radiator Inlet HoseRadiator Inlet Hose
-
14709200169 Radiator Outlet HoseRadiator Outlet Hose
-
15293650108 Norma Spring ClampNorma Spring Clamp
-
16293650109 Norma Spring ClampNorma Spring Clamp
-
17709200099 Coolant TankCoolant Tank
-
18709200009 Tank CapTank Cap
-
19570135100 GrommetGrommet
-
20414580600 Male ConnectorMale Connector
-
21415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
22709200205 Protection CapProtection Cap
-
23415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
24414554800 Spring ClampSpring Clamp
-
25570135100 GrommetGrommet
-
26709200080 Radiator AnchorRadiator Anchor
-
27210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
28250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
29293250087 GasketGasket
-
30293650051 Tridon Gear ClampTridon Gear Clamp
