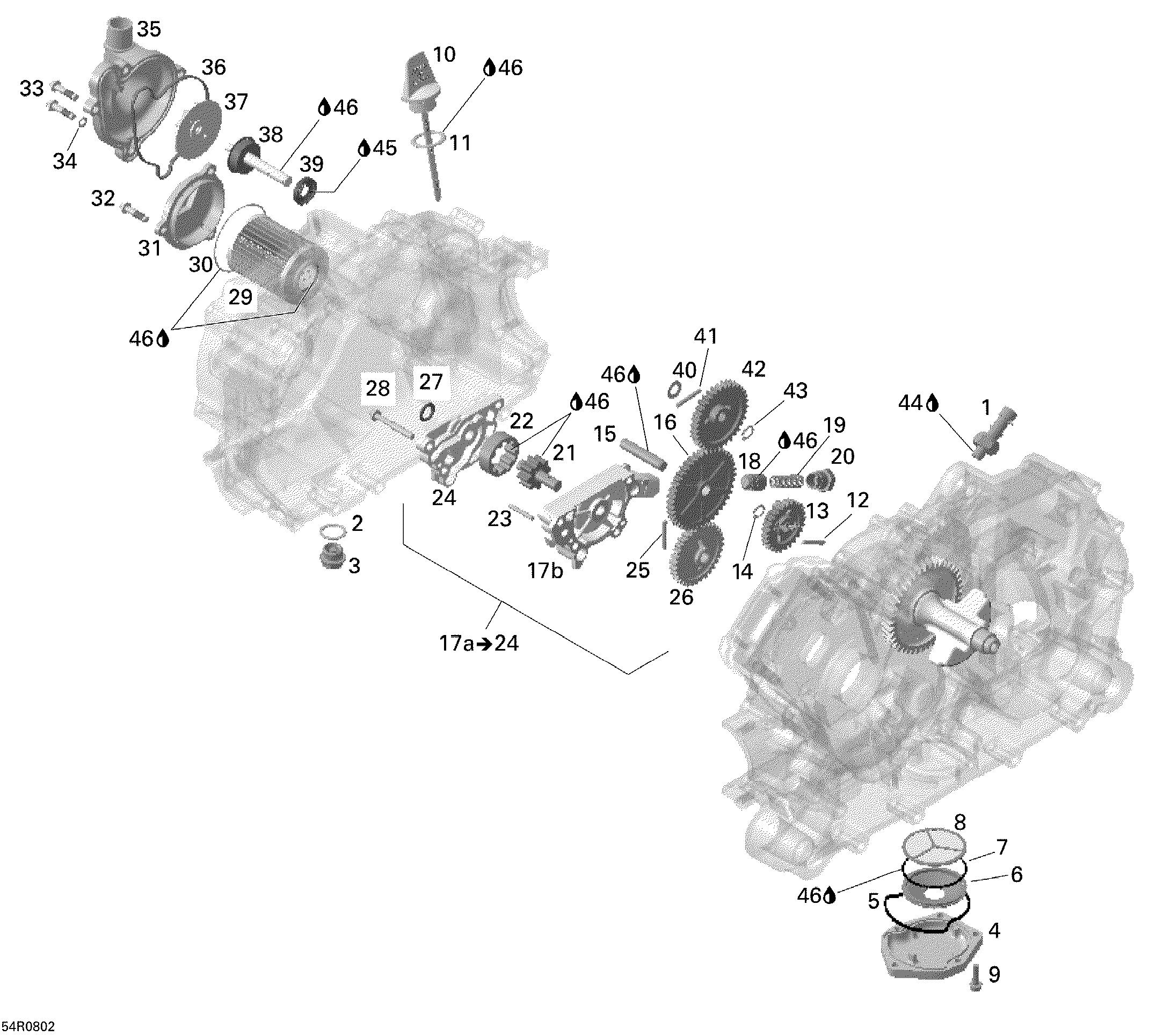

01- Engine Lubrication для BRP Outlander MAX 400 XT - 2008
-
№АртикулНазвание
-
1420256770 Oil Pressure SwitchOil Pressure Switch
-
2420552280 O-RingO-Ring
-
3420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
4420211940 Oil Sieve CoverOil Sieve Cover
-
5420650560 Rubber RingRubber Ring
-
6420256650 Oil CollectorOil Collector
-
7420650695 O-RingO-Ring
-
8420256575 Oil SieveOil Sieve
-
9420440202 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
10420256800 Oil DipstickOil Dipstick
-
11420631640 O-RingO-Ring
-
12420232430 Needle PinNeedle Pin
-
13420635191 Idle Gear, 25 TeethIdle Gear, 25 Teeth
-
14420245330 Snap RingSnap Ring
-
15420229301 Location PinLocation Pin
-
16420635660 Idle Gear, 42 TeethIdle Gear, 42 Teeth
-
17a420296507 Oil Pump Ass'y. Includes 17a to 24Oil Pump Ass'y. Includes 17a to 24
-
17b420610220 Oil Pump HousingOil Pump Housing
-
18420256921 Piston ValvePiston Valve
-
19420238220 Compression SpringCompression Spring
-
20420641167 Plug Screw M16Plug Screw M16
-
21420220814 Oil Pump ShaftOil Pump Shaft
-
22420256935 Oil Pump Outer RotorOil Pump Outer Rotor
-
23420232430 Needle PinNeedle Pin
-
24420610570 Oil Pump CoverOil Pump Cover
-
25420232430 Needle PinNeedle Pin
-
26420635220 Oil Pump Gear, 32 TeethOil Pump Gear, 32 Teeth
-
27420250290 O-ringO-ring
-
28420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
29420256188 Oil FilterOil Filter
-
30420230920 O-RingO-Ring
-
31420210418 Oil Filter CoverOil Filter Cover
-
32420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
33420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
34420230415 Seal WasherSeal Washer
-
35420222680 Water Pump HousingWater Pump Housing
-
36420630270 GasketGasket
-
37420222505 Water ImpellerWater Impeller
-
38420620171 Waterpump Shaft Ass'yWaterpump Shaft Ass'y
-
39420650310 Oil SealOil Seal
-
40420827590 Thrust WasherThrust Washer
-
41420232430 Needle PinNeedle Pin
-
42420635620 Idle Gear, 34 TeethIdle Gear, 34 Teeth
-
43420245330 Snap RingSnap Ring
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45293550030 Grease, Super LubeGrease, Super Lube
