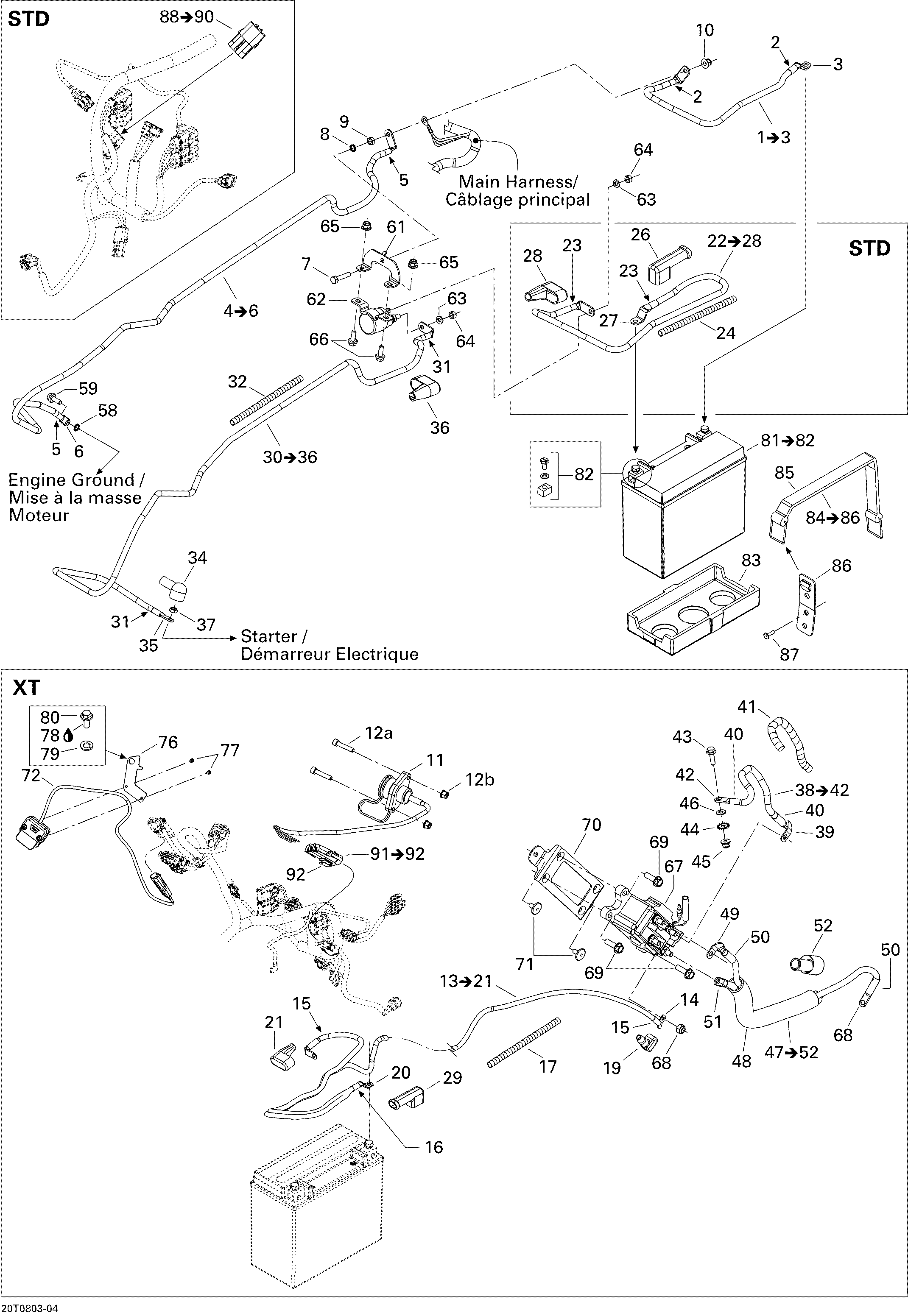

10- Electrical System XT для BRP Outlander MAX 400 XT - 2008
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000844 Ground Cable. Includes 4 to 6Ground Cable. Includes 4 to 6
-
5710000483 Shrink TubingShrink Tubing
-
6710000530 Open BarrelOpen Barrel
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11710001023 Winch ConnectorWinch Connector
-
12a205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
12b233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
13710000843 Positive Cable. Includes 13 to 21Positive Cable. Includes 13 to 21
-
14710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
15710000483 Shrink TubingShrink Tubing
-
16275500578 Shrink TubingShrink Tubing
-
17710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
19710000522 Protector CapProtector Cap
-
20710000519 Open BarrelOpen Barrel
-
21710000902 Protector CapProtector Cap
-
29710000516 Protector CapProtector Cap
-
30710000903 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
34710000526 Protector CapProtector Cap
-
35710000530 Open BarrelOpen Barrel
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38710000455 Negative Cable. Includes 38 to 42Negative Cable. Includes 38 to 42
-
39710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
40710000483 Shrink TubingShrink Tubing
-
41710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
42710000530 Open BarrelOpen Barrel
-
43207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
44250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
45233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
46224061121 Flat WasherFlat Washer
-
47710001251 Winch Cables. Includes 47 to 52Winch Cables. Includes 47 to 52
-
48409901600 Tubing, 19 mmTubing, 19 mm
-
49710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
50710000483 Shrink TubingShrink Tubing
-
51710000530 Open BarrelOpen Barrel
-
52515175919 Protector CapProtector Cap
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
61705201325 Starter Relay SupportStarter Relay Support
-
62515176011 Starter RelayStarter Relay
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
64232061600 Hex. Nut M6Hex. Nut M6
-
65233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
66207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
67710001000 Winch SolenoidWinch Solenoid
-
68232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
69210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
70710001261 Relay SupportRelay Support
-
71390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
72710001001 Winch InterrupterWinch Interrupter
-
76710000755 Winch Interrupter SupportWinch Interrupter Support
-
77250000153 Hex. Cap Screw 6-32 X 1/4''Hex. Cap Screw 6-32 X 1/4''
-
78293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
79234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
80250000029 Hex. Screw M10 X 16Hex. Screw M10 X 16
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84710001033 Strap Ass'y. Includes 84 to 86Strap Ass'y. Includes 84 to 86
-
85293850097 Rubber StrapRubber Strap
-
86293850030 Strap ClipStrap Clip
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
91710001059 Connector Ass'y. Includes 91 to 92Connector Ass'y. Includes 91 to 92
-
92710000992 ClipClip
