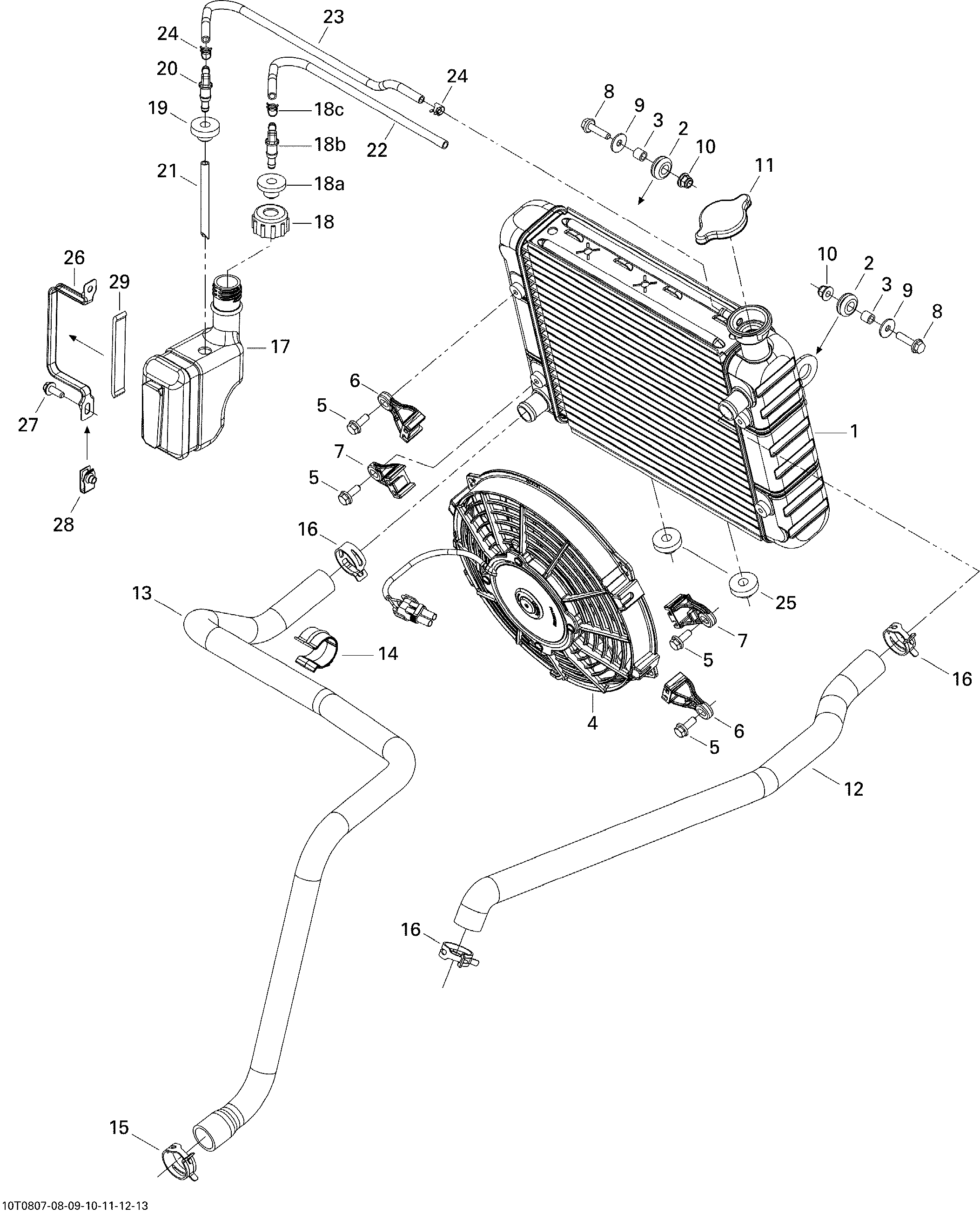

01- Cooling System для BRP Outlander MAX 500 STD - 2008
-
№АртикулНазвание
-
1709200120 RadiatorRadiator
-
2293720053 GrommetGrommet
-
3293900045 BushingBushing
-
4709200124 FanFan
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6709200125 Fan SupportFan Support
-
7709200126 Fan SupportFan Support
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9391302000 Flat WasherFlat Washer
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11709200207 Pressure CapPressure Cap
-
12709200130 Radiator Inlet HoseRadiator Inlet Hose
-
13709200131 Radiator Outlet HoseRadiator Outlet Hose
-
14275500526 RetainerRetainer
-
15293650108 Norma Spring ClampNorma Spring Clamp
-
16293650109 Norma Spring ClampNorma Spring Clamp
-
17709200099 Coolant TankCoolant Tank
-
18548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
18a293830136 GroometGroomet
-
18b414580700 Elbow Male ConnectorElbow Male Connector
-
18c414554800 Spring ClampSpring Clamp
-
19570135100 GrommetGrommet
-
20414580600 Elbow Male ConnectorElbow Male Connector
-
21415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
22415080200 Polyurethane HosePolyurethane Hose
-
23415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
24414554800 Spring ClampSpring Clamp
-
25570135100 GrommetGrommet
-
26709200080 Tank AnchorTank Anchor
-
27210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
28250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
29293250087 GasketGasket
