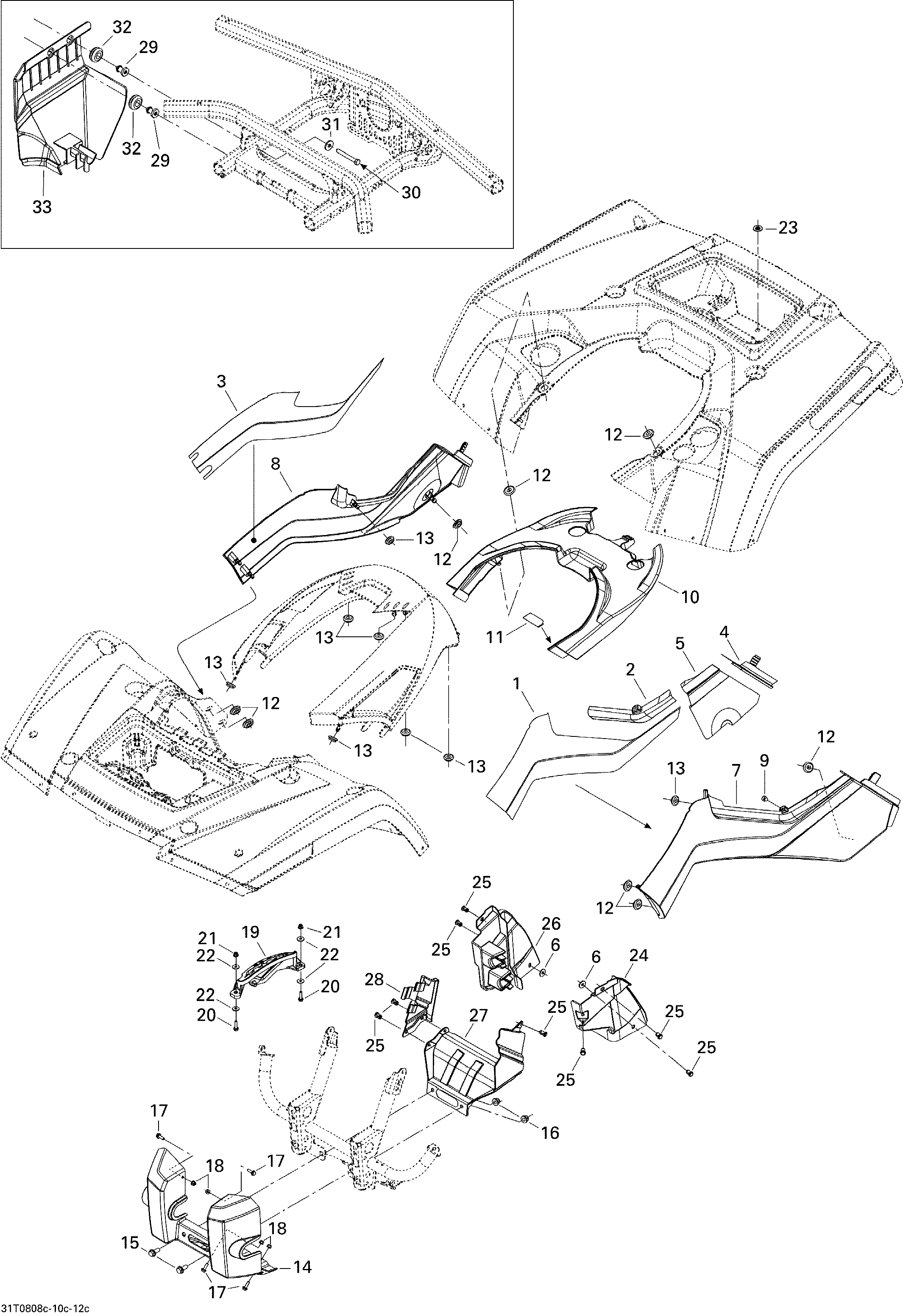

09- Body And Accessories 3, STD для BRP Outlander MAX 500 STD - 2008
-
№АртикулНазвание
-
1705001990 LH Reflective SheetLH Reflective Sheet
-
2705001989 Reflective SheetReflective Sheet
-
3705002126 RH Reflective SheetRH Reflective Sheet
-
4705002183 LH Reflective SheetLH Reflective Sheet
-
5705002184 LH Reflective SheetLH Reflective Sheet
-
6506151252 WasherWasher
-
7705001942 LH Lateral Panel, Red. Viper RedLH Lateral Panel, Red. Viper Red
-
7705002115 LH Lateral Panel, Yellow. YellowLH Lateral Panel, Yellow. Yellow
-
7705002116 LH Lateral Panel, Green. Laurentian GreenLH Lateral Panel, Green. Laurentian Green
-
7705002475 LH Lateral Panel, Camo. CamoLH Lateral Panel, Camo. Camo
-
8705001943 RH Lateral Panel, Red. Viper RedRH Lateral Panel, Red. Viper Red
-
8705002117 RH Lateral Panel, Yellow. YellowRH Lateral Panel, Yellow. Yellow
-
8705002118 RH Lateral Panel, Green. Laurentian GreenRH Lateral Panel, Green. Laurentian Green
-
8705002476 RH Lateral Panel, Camo. CamoRH Lateral Panel, Camo. Camo
-
9293830005 Rubber Plug, BlackRubber Plug, Black
-
10705001947 Storage Tray, Red. Viper RedStorage Tray, Red. Viper Red
-
10705002119 Storage Tray, Yellow. YellowStorage Tray, Yellow. Yellow
-
10705002120 Storage Tray, Green. Laurentian GreenStorage Tray, Green. Laurentian Green
-
10705002477 Storage Tray, Camo. CamoStorage Tray, Camo. Camo
-
11705002185 Reflective SheetReflective Sheet
-
12705005156 Oblong WasherOblong Washer
-
13705002149 GrommetGrommet
-
14705001530 Front Protection Plate. STDFront Protection Plate. STD
-
15207602544 Hex Flanged Screw M10 X 25. STDHex Flanged Screw M10 X 25. STD
-
16233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19705001532 Lever IndicatorLever Indicator
-
20207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
21233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
22250200072 Flat WasherFlat Washer
-
23414859400 CapCap
-
24705002125 LH Inner FenderLH Inner Fender
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
26705002124 RH Inner FenderRH Inner Fender
-
27705002134 LH DeflectorLH Deflector
-
28705002135 RH DeflectorRH Deflector
-
29517303439 KnobKnob
-
30241055030 Hex. Screw K50 X 50Hex. Screw K50 X 50
-
31391301600 WasherWasher
-
32293720053 GrommetGrommet
-
33705002264 Thread CoverThread Cover
