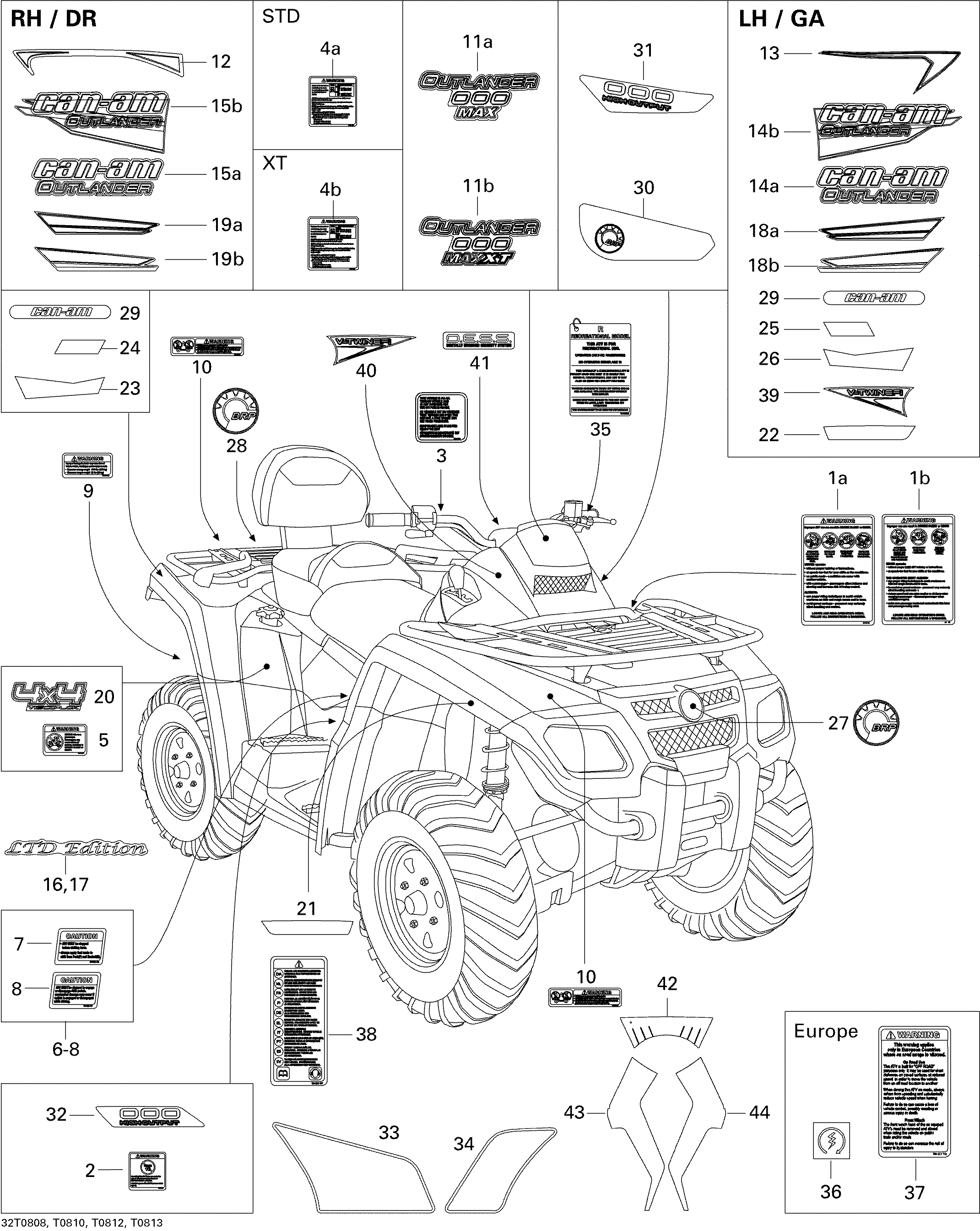

09- Decals STD для BRP Outlander MAX 500 STD - 2008
-
№АртикулНазвание
-
1a704900904 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
1b704901442 Warning Label, Death And Injuries. EuropeWarning Label, Death And Injuries. Europe
-
2704900642 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901438 Transport Canada Label. Canada/USATransport Canada Label. Canada/USA
-
3704901438 Transport Canada Label. InternationalTransport Canada Label. International
-
4a704901120 Warning Label, Tire Pressure. STDWarning Label, Tire Pressure. STD
-
5704901113 Warning Label, Under 12 Years OldWarning Label, Under 12 Years Old
-
6704900434 Caution Label, Lever And 4wd Switch. InternationalCaution Label, Lever And 4wd Switch. International
-
6704900434 Caution Label, Lever And 4wd Switch. Canada/USACaution Label, Lever And 4wd Switch. Canada/USA
-
6704900470 Caution Label, Shifting Lever. EuropeCaution Label, Shifting Lever. Europe
-
7704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
7704900470 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
8704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
8704900471 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
9704901091 CE Warning Label. EuropeCE Warning Label. Europe
-
9704901123 Warning Decal, Trailer. Canada/USAWarning Decal, Trailer. Canada/USA
-
9704901123 Warning Decal, Trailer. InternationalWarning Decal, Trailer. International
-
10704901089 Warning Label, LoadWarning Label, Load
-
11a704901324 Pod 500 Max Decal. 500 STDPod 500 Max Decal. 500 STD
-
12704901243 RH Panel Decal. Yellow, Laurentian Green, Viper RedRH Panel Decal. Yellow, Laurentian Green, Viper Red
-
13704901244 LH Panel Decal. Yellow, Laurentian Green, Viper RedLH Panel Decal. Yellow, Laurentian Green, Viper Red
-
14a704901216 LH & RH Decal. CamoLH & RH Decal. Camo
-
14b704901360 LH Front DecalLH Front Decal
-
15a704901216 LH & RH Decal. CamoLH & RH Decal. Camo
-
15b704901361 RH Front DecalRH Front Decal
-
18a704901249 LH Rear Lateral Decal. Yellow, Laurentian Green, Viper RedLH Rear Lateral Decal. Yellow, Laurentian Green, Viper Red
-
19a704901250 RH Rear Lateral Decal. Yellow, Laurentian Green, Viper RedRH Rear Lateral Decal. Yellow, Laurentian Green, Viper Red
-
20704901219 4x4 Decal4x4 Decal
-
21704901422 RH Reflector (Long)RH Reflector (Long)
-
22704901421 LH Reflector (Long)LH Reflector (Long)
-
23704901426 RH Rear ReflectorRH Rear Reflector
-
24704901424 RH Rear ReflectorRH Rear Reflector
-
25704901423 LH Rear ReflectorLH Rear Reflector
-
26704901425 LH Rear ReflectorLH Rear Reflector
-
27219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
28219902672 BRP Logo 68 mmBRP Logo 68 mm
-
29704901271 Signature LabelSignature Label
-
29704901273 Signature Label. CamoSignature Label. Camo
-
30704900963 CVT DecalCVT Decal
-
31704901205 Cvt 500 Decal. 500Cvt 500 Decal. 500
-
32704901242 Engine Cover Decal. 500Engine Cover Decal. 500
-
35704900906 Warning Label, 2-up VehicleWarning Label, 2-up Vehicle
-
36704900705 Symbol Label, Start. EuropeSymbol Label, Start. Europe
-
37704901444 Europe Warning Label. EuropeEurope Warning Label. Europe
-
38704901177 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
38704901177 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
39704901115 LH Console DecalLH Console Decal
-
40704901116 RH Console DecalRH Console Decal
-
41704901117 DESS DecalDESS Decal
-
42704901475 Central Protector DecalCentral Protector Decal
-
43704901477 Side Protector Decal, LHSide Protector Decal, LH
-
44704901479 Side Protector Decal, RHSide Protector Decal, RH
