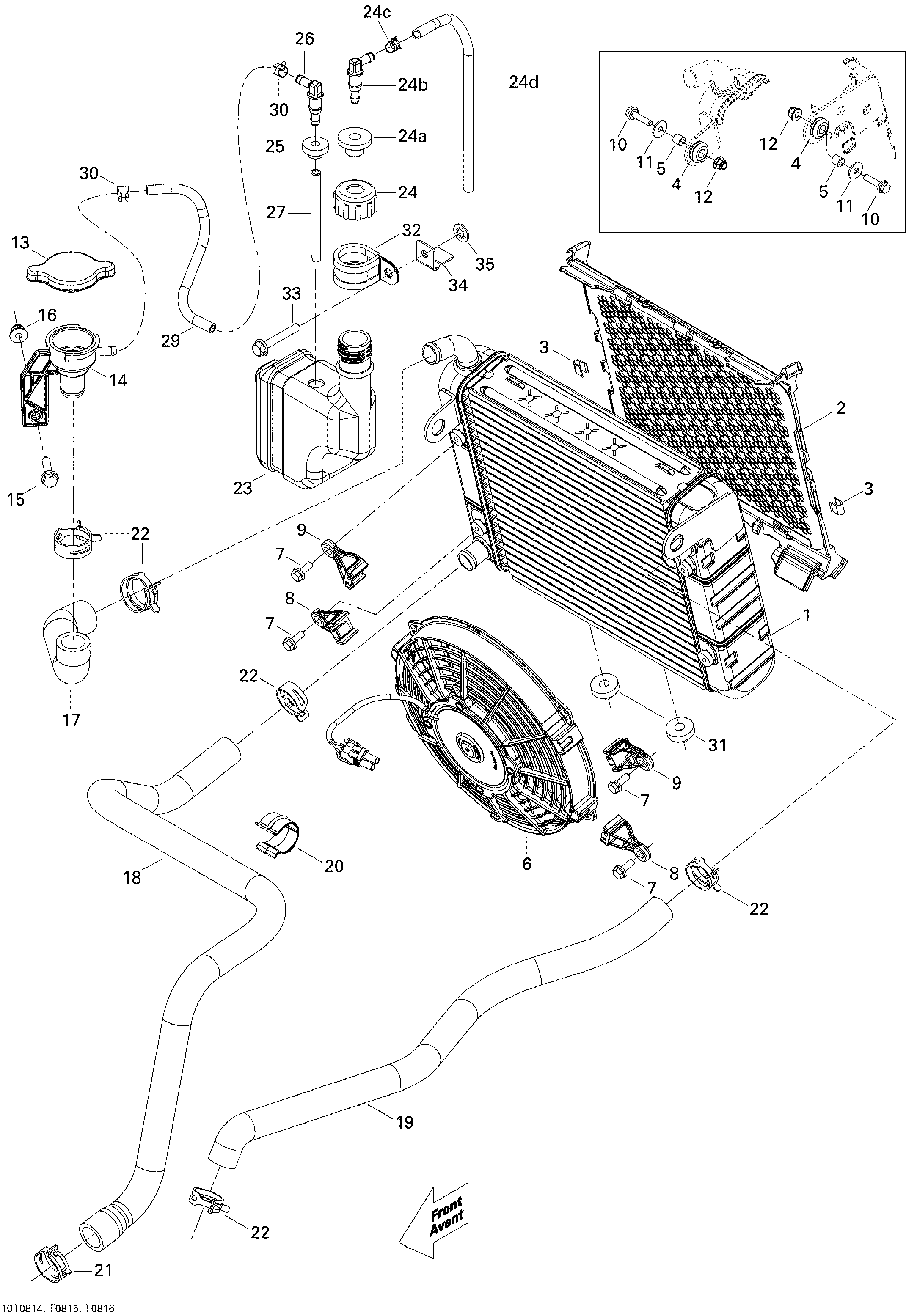

01- Cooling System для BRP Renegade 800 X - 2008
-
№АртикулНазвание
-
1709200178 RadiatorRadiator
-
2709200187 Radiator Protector. Includes 2, 3Radiator Protector. Includes 2, 3
-
3414479100 ClipClip
-
4293720053 GrommetGrommet
-
5293900045 BushingBushing
-
6709200124 Fan Ass'yFan Ass'y
-
7207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
8709200125 Fan SupportFan Support
-
9709200126 Fan SupportFan Support
-
10207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
11391302000 Flat WasherFlat Washer
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13709200033 Pressure CapPressure Cap
-
14709200179 Filler NeckFiller Neck
-
15207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
16233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
17709200180 Filler Neck HoseFiller Neck Hose
-
18709200181 Outlet Radiator HoseOutlet Radiator Hose
-
19709200182 Inlet HoseInlet Hose
-
20275500526 RetainerRetainer
-
21293650108 Norma Spring ClampNorma Spring Clamp
-
22293650109 Norma Spring ClampNorma Spring Clamp
-
23709200099 Coolant TankCoolant Tank
-
24548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
24a293830136 GroometGroomet
-
24b414580700 Elbow Male ConnectorElbow Male Connector
-
24c414554800 Spring ClampSpring Clamp
-
24d415080200 Polyurethane HosePolyurethane Hose
-
25570135100 GrommetGrommet
-
26414580600 Male ConnectorMale Connector
-
27415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
29415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
30414554800 Spring ClampSpring Clamp
-
31570135100 GrommetGrommet
-
32709200036 Hose AnchorHose Anchor
-
33207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
34709200209 BracketBracket
-
35732610072 Push NutPush Nut
