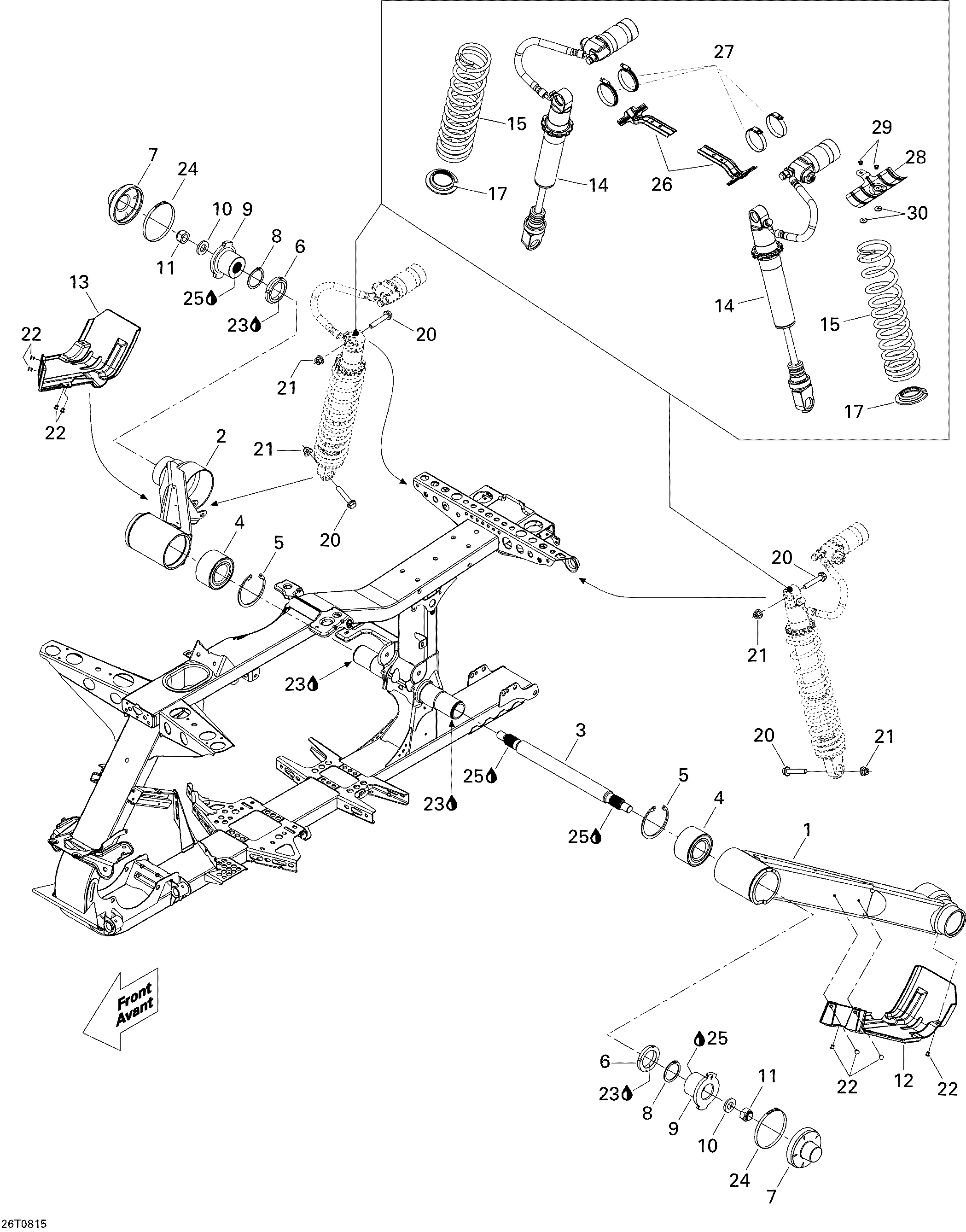

08- Rear Suspension для BRP Renegade 800 X - 2008
-
№АртикулНазвание
-
1706000555 LH Swing ArmLH Swing Arm
-
2706000556 RH Swing ArmRH Swing Arm
-
3706000452 Sway BarSway Bar
-
4293350037 Ball BearingBall Bearing
-
5293370041 CirclipCirclip
-
6706000221 NutNut
-
7706000222 CoverCover
-
8293370027 Circlip 45 mmCirclip 45 mm
-
9706000554 LeverLever
-
10250200045 WasherWasher
-
11232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
12706000333 LH ProtectorLH Protector
-
13706000334 RH ProtectorRH Protector
-
14706000542 LH ShockLH Shock
-
14706000581 RH ShockRH Shock
-
15706000570 SpringSpring
-
17706000567 Spring StopperSpring Stopper
-
20207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
21233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
22293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
23293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
24293650162 Oetiker ClampOetiker Clamp
-
25293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
26706000579 SupportSupport
-
27293650075 Norma ClampNorma Clamp
-
28706000580 DeflectorDeflector
-
29390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517124300 WasherWasher
