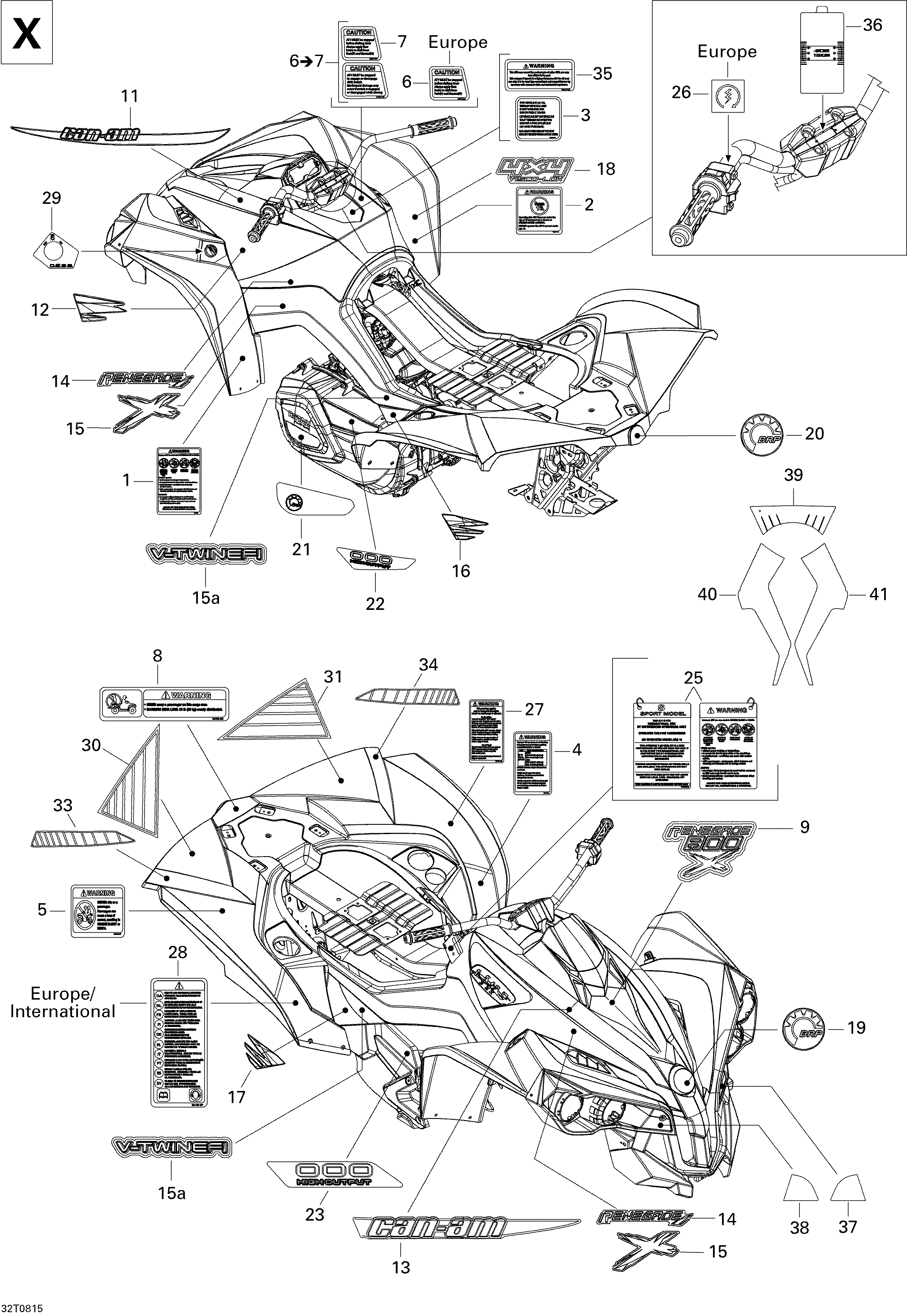

09- Decals для BRP Renegade 800 X - 2008
-
№АртикулНазвание
-
1704900112 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
1704901440 Warning Label, Death And Injuries. EuropeWarning Label, Death And Injuries. Europe
-
2704900011 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
3704901438 Transport Canada LabelTransport Canada Label
-
4704901419 Warning Label, Tire PressureWarning Label, Tire Pressure
-
5704900005 Warning Label, PassengerWarning Label, Passenger
-
6704901308 Caution Label, Lever And 4wd SwitchCaution Label, Lever And 4wd Switch
-
6704901309 Caution Label, Shifting Lever. EuropeCaution Label, Shifting Lever. Europe
-
7704901309 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
8704901333 Warning Label, LoadWarning Label, Load
-
9704901368 Console Decal, Renegade 800X. 800 XConsole Decal, Renegade 800X. 800 X
-
11704901369 LH Top Decal. XLH Top Decal. X
-
12704901298 LH Lower Front DecalLH Lower Front Decal
-
13704901370 RH Front Decal, Renegade. XRH Front Decal, Renegade. X
-
14704901371 Upper Side Decal. XUpper Side Decal. X
-
15704901485 Lower Side Decal. XLower Side Decal. X
-
15a704901437 Side Decal ''V TWIN EFI''Side Decal ''V TWIN EFI''
-
16704901303 LH Rear Lateral DecalLH Rear Lateral Decal
-
17704901304 RH Rear Lateral DecalRH Rear Lateral Decal
-
18704901302 4X4 Decal, Visco Lok4X4 Decal, Visco Lok
-
19219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
20219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
21704900963 CVT DecalCVT Decal
-
22704900964 CVT 800 Decal. 800CVT 800 Decal. 800
-
23704901240 Engine Cover Decal, 800 High Output. 800Engine Cover Decal, 800 High Output. 800
-
25704900923 Warning Label, Sport ModelWarning Label, Sport Model
-
26704900705 Symbol Label, Start. EuropeSymbol Label, Start. Europe
-
27704901444 Europe Warning Label. EuropeEurope Warning Label. Europe
-
28704901177 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
28704901177 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
29704901311 D.E.S.S DecalD.E.S.S Decal
-
30704901375 RH Rear Fender Decal. XRH Rear Fender Decal. X
-
31704901376 LH Rear Fender Decal. XLH Rear Fender Decal. X
-
33704901377 LH Rear Decal. XLH Rear Decal. X
-
34704901378 RH Rear Decal. XRH Rear Decal. X
-
35704900089 Warning Label, PerformanceWarning Label, Performance
-
36704901411 Micro-Adjust DecalMicro-Adjust Decal
-
37704901488 LH Front Decal. XLH Front Decal. X
-
38704901487 RH Front Decal. XRH Front Decal. X
-
39704901475 Central Protector DecalCentral Protector Decal
-
40704901477 Side Protector Decal, LHSide Protector Decal, LH
-
41704901479 Side Protector Decal, RHSide Protector Decal, RH
