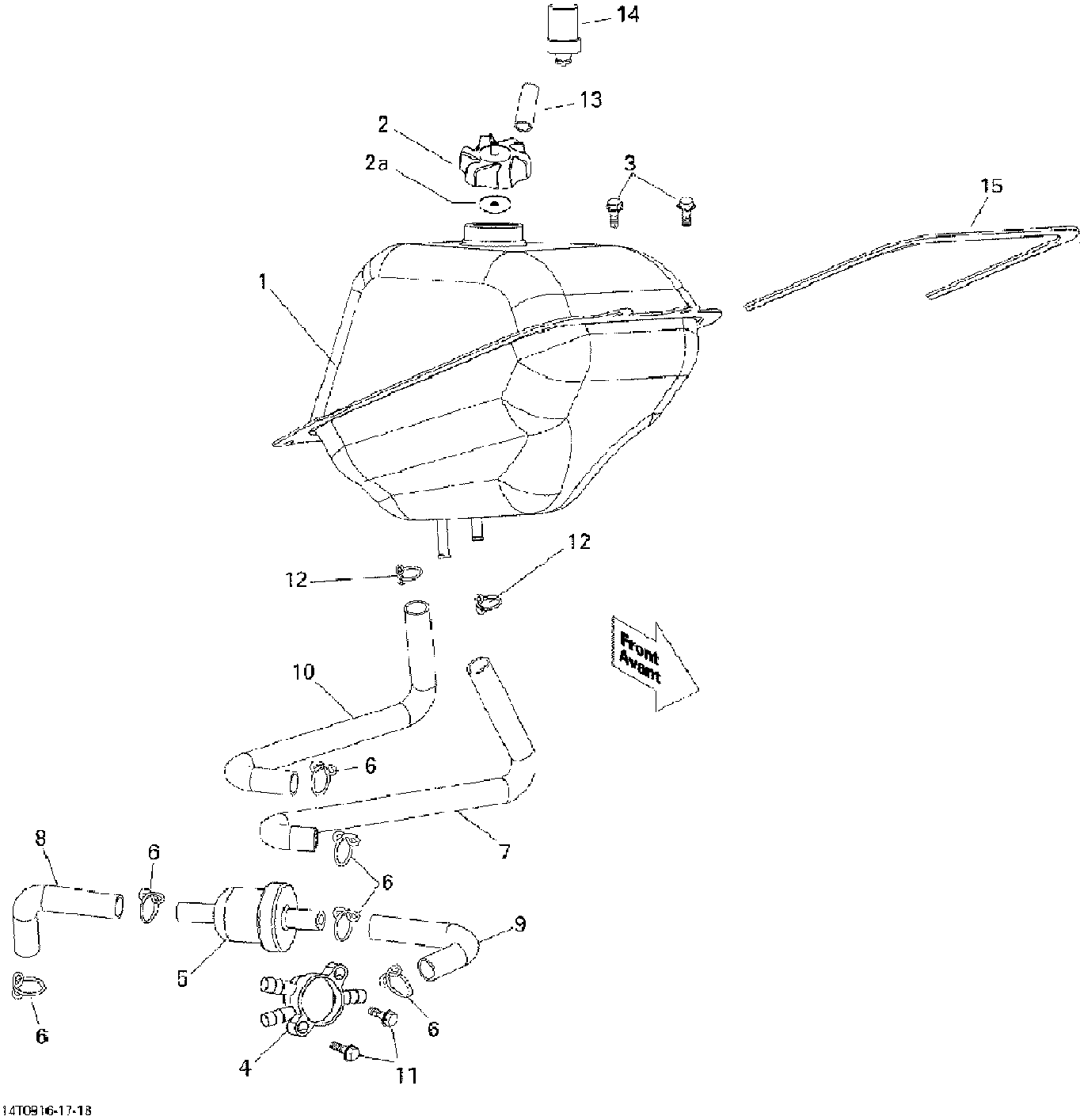

02- Fuel System для BRP DS 70 - 2009
-
№АртикулНазвание
-
1V17500DGF060 Fuel TankFuel Tank
-
2V17620DGF010 Fuel Tank CapFuel Tank Cap
-
2aV17624DGF010 Fuel Tank Cap GasketFuel Tank Cap Gasket
-
3207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4S16950RCA010 Fuel ValveFuel Valve
-
5V16910MAA000 Fuel FilterFuel Filter
-
6V17209DGF010 Hose ClampHose Clamp
-
7V17684DGF010 Fuel TubeFuel Tube
-
8V17682DGF010 Fuel TubeFuel Tube
-
9V17683DGF000 Fuel TubeFuel Tube
-
10V17685DGF000 Fuel TubeFuel Tube
-
11V9350005022 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
12V17210DGF000 Hose ClampHose Clamp
-
13V17686DGF010 TubeTube
-
14V43351DGF000 One Way ValveOne Way Valve
-
15V81149MEM010 Waterproof StripWaterproof Strip
