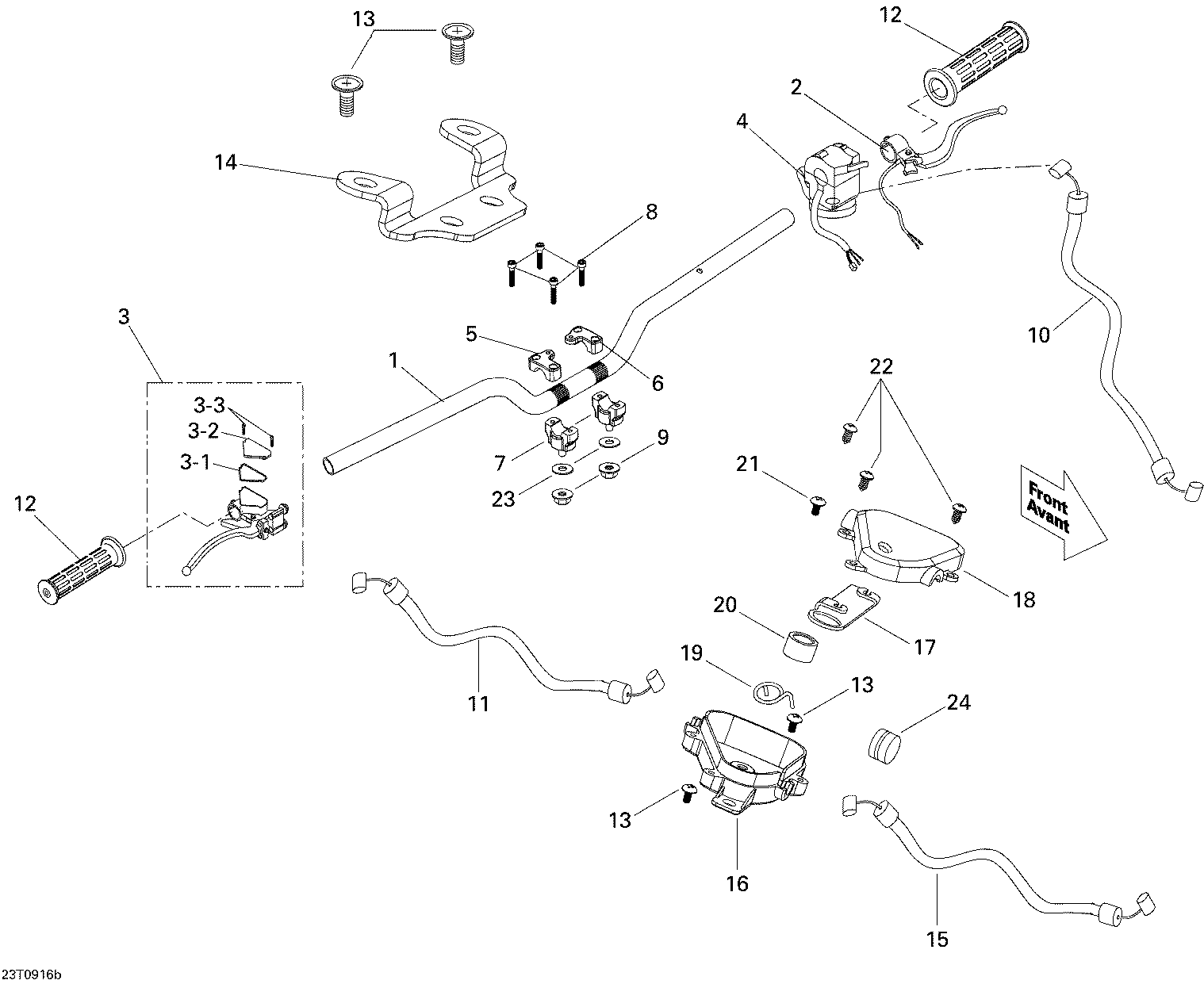

07- Handlebar для BRP DS 70 - 2009
-
№АртикулНазвание
-
1V53100DGF040BK Handle BarHandle Bar
-
2V53178MAA000B LH Brake LeverLH Brake Lever
-
3V53177MAA000 RH Lever Ass'yRH Lever Ass'y
-
3-1V53182MAA000 RH Lever GasketRH Lever Gasket
-
3-2V53183MAA000 Lever Body CoverLever Body Cover
-
3-3V9350004016 ScrewScrew
-
4V35160DGF02H Multi-Function SwitchMulti-Function Switch
-
5V53170MAA000BK LH Upper Handle Bar ClampLH Upper Handle Bar Clamp
-
6V53175MAA000BK RH Upper Handle Bar ClampRH Upper Handle Bar Clamp
-
7V45517MAA000BK Lower Handle Bar ClampLower Handle Bar Clamp
-
8V9100006025 Hexagonal Socket Bolt M6 X 25Hexagonal Socket Bolt M6 X 25
-
9A9035010000G Nylon Nut, 10 mm X 1.25Nylon Nut, 10 mm X 1.25
-
10V43316DGF030 Choke CableChoke Cable
-
11V17910DGE030 Throttle CableThrottle Cable
-
12V53140DGF000BK Handle GripHandle Grip
-
13V9300006012 Round Head ScrewRound Head Screw
-
14V50223DGF020 SupportSupport
-
15V17911DGE010 Throttle CableThrottle Cable
-
16V80120DGE010 Lower CoverLower Cover
-
17V50336DGE010 PlatePlate
-
18V80121DGE000 Upper CoverUpper Cover
-
19V54292DGE020 SpringSpring
-
20V50337DGE000 CollarCollar
-
21V9300005012 Round Head BoltRound Head Bolt
-
22V9309303508 Tapping ScrewTapping Screw
-
23234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
24V80122DGE000 Rubber CapRubber Cap
