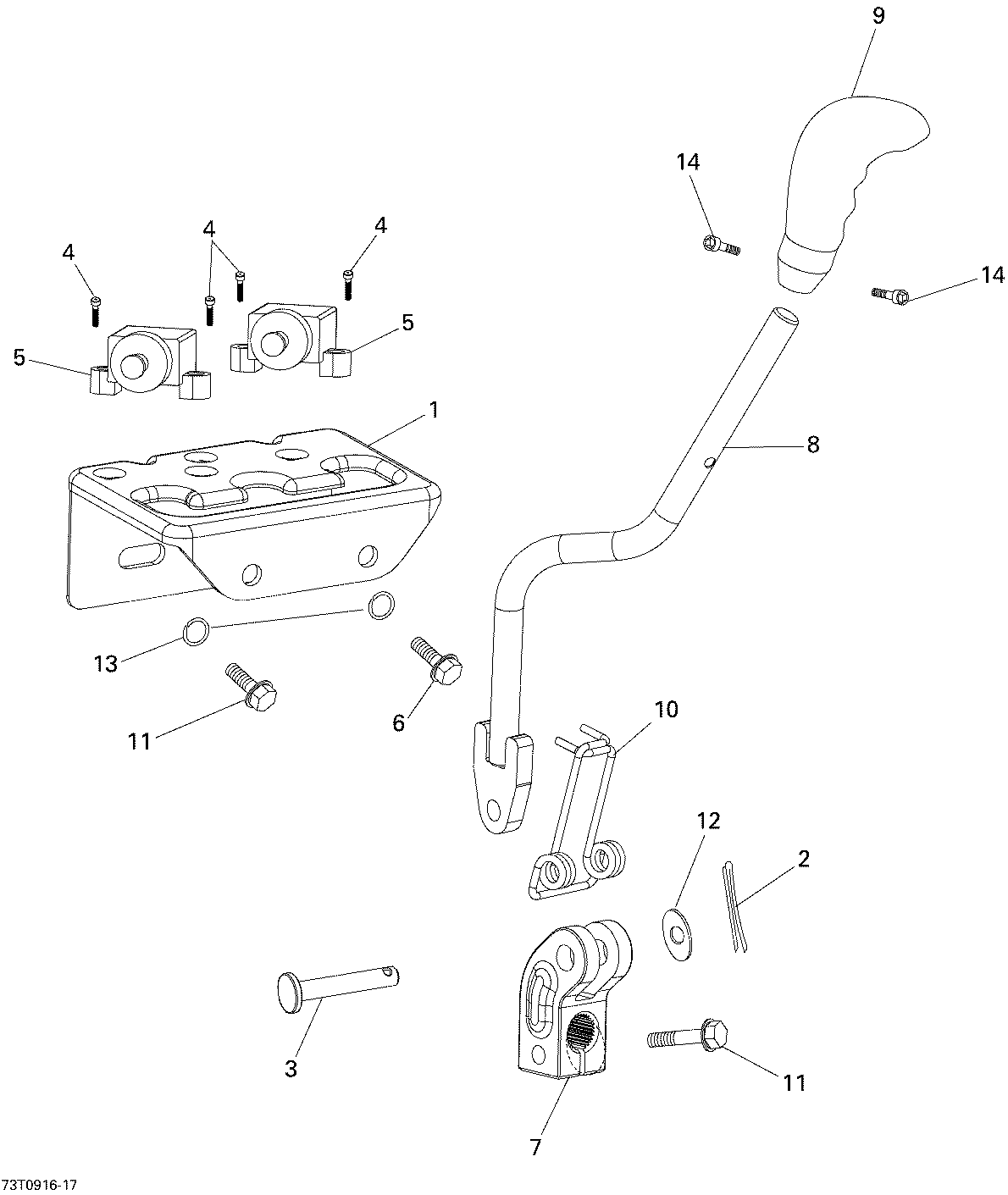

05- Shift Lever для BRP DS 70 - 2009
-
№АртикулНазвание
-
1V72101DGF040 Shift PlateShift Plate
-
2V9420130032 Cotter PinCotter Pin
-
3V0226MAF020 PinPin
-
4A9350005015 Pan Head Phillips Bolt M5 X 15Pan Head Phillips Bolt M5 X 15
-
5V35152DGF050 SwitchSwitch
-
6207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7V72315MAD020 Support ShifterSupport Shifter
-
8V72314DGF040 ShifterShifter
-
9V72201CEK020 Handle PlasticHandle Plastic
-
10V54294MAF010 SpringSpring
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12V941010816015 WasherWasher
-
13234161601 Lock Washer Helical M6Lock Washer Helical M6
-
14V9105005006 Socket Head ScrewSocket Head Screw
