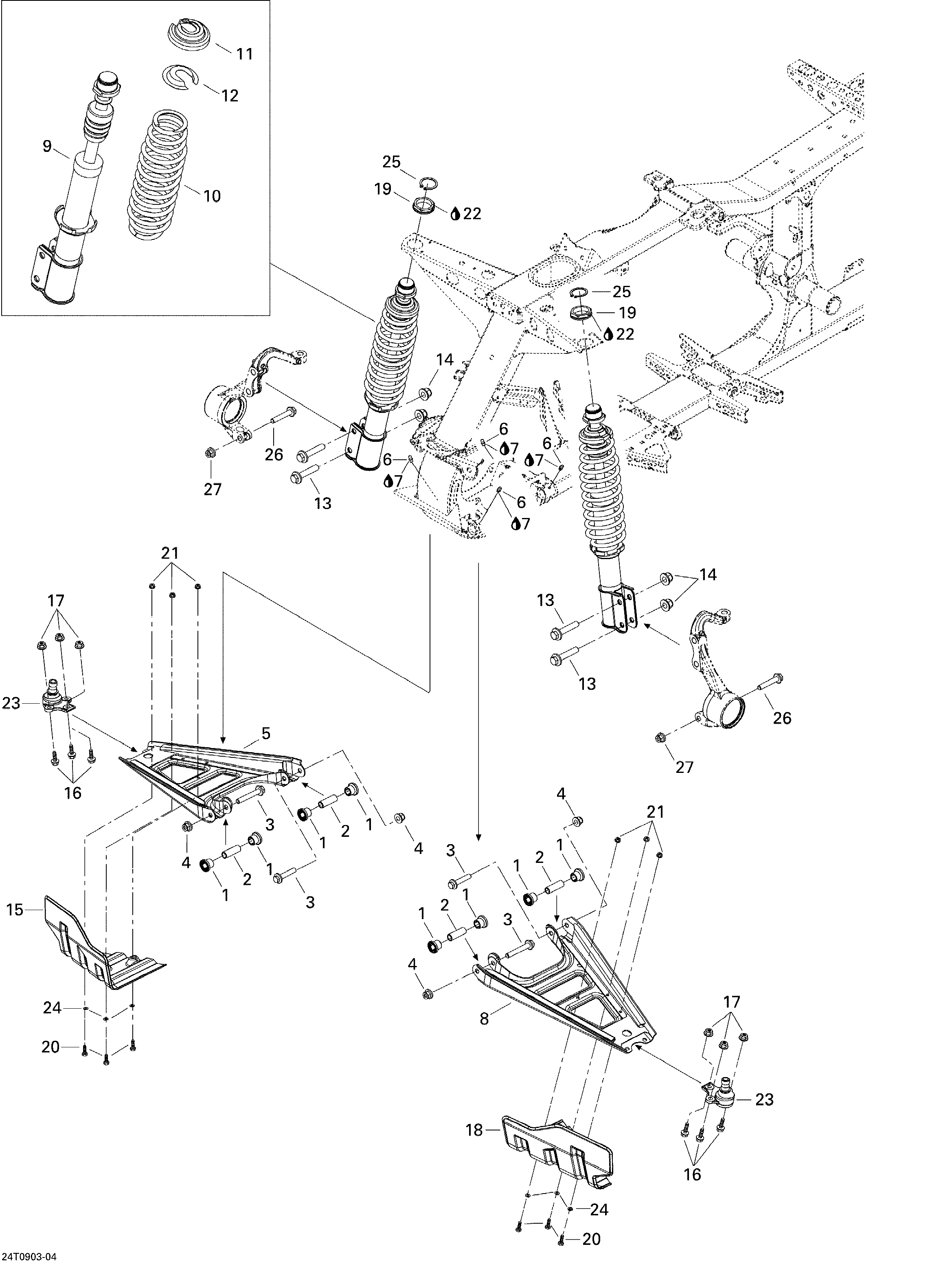

07- Front Suspension XT для BRP Outlander 500 EFI XT - 2009
-
№АртикулНазвание
-
1706200181 CushionCushion
-
2706200678 Inner BushingInner Bushing
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5706200751 Suspension Arm, BlackSuspension Arm, Black
-
6408200700 Grease FittingGrease Fitting
-
7293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
8706200751 Suspension Arm, BlackSuspension Arm, Black
-
9706200661 Front ShockFront Shock
-
10706200824 Front Spring. XTFront Spring. XT
-
11706200882 Stopper SpringStopper Spring
-
12706200656 CapCap
-
13207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
14233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
15706200214 RH ProtectorRH Protector
-
16207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18706200213 LH ProtectorLH Protector
-
19706200443 NutNut
-
20207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
21233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23706200444 Joint AttachmentJoint Attachment
-
24391301700 WasherWasher
-
25293370009 Circlip 32 mmCirclip 32 mm
-
26207604544 Hex. Flanged Screw M10 X 45Hex. Flanged Screw M10 X 45
-
27233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
