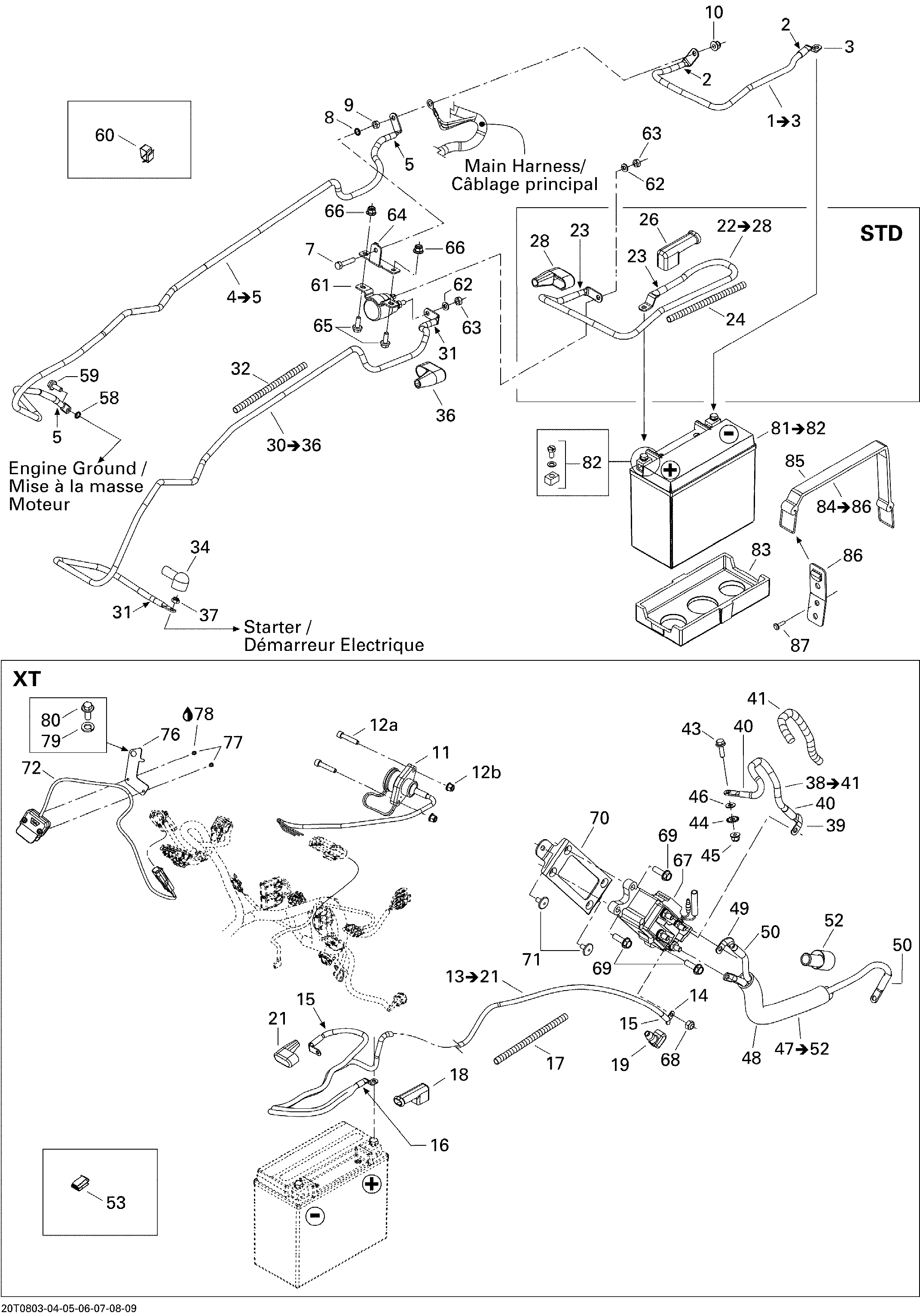

10- Electrical System XT для BRP Outlander 500 EFI XT - 2009
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000831 Ground Cable. Includes 4 to 5Ground Cable. Includes 4 to 5
-
5710000483 Shrink TubingShrink Tubing
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11710001023 Winch Connector. XTWinch Connector. XT
-
12a205052588 Socket Head Screw M5 X 25. XTSocket Head Screw M5 X 25. XT
-
12b233251414 Hex. Flanged Elastic Nut M5. XTHex. Flanged Elastic Nut M5. XT
-
13710001485 Positive Cable. XT, Includes 13 to 21Positive Cable. XT, Includes 13 to 21
-
14710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
15710000483 Shrink Tubing. XTShrink Tubing. XT
-
16275500578 Shrink Tubing. XTShrink Tubing. XT
-
17710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
18710000516 Protector Cap. XTProtector Cap. XT
-
19710000522 Protector Cap. XTProtector Cap. XT
-
21710000902 Protector Cap. XTProtector Cap. XT
-
30710000833 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
34710000526 Protector CapProtector Cap
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38710000455 Negative Cable. XT, Includes 38 to 41Negative Cable. XT, Includes 38 to 41
-
39710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
40710000483 Shrink Tubing. XTShrink Tubing. XT
-
41710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
43207662044 Hex. Flanged Screw M6 X 20. XTHex. Flanged Screw M6 X 20. XT
-
44250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
45233261414 Hex. Flanged Elastic Nut M6. XTHex. Flanged Elastic Nut M6. XT
-
46224061121 Flat Washer. XTFlat Washer. XT
-
47710001251 Winch Cables. XTWinch Cables. XT
-
48409901600 Tubing, 19 mm. XTTubing, 19 mm. XT
-
49710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
50710000483 Shrink Tubing. XTShrink Tubing. XT
-
52515175919 Protector Cap. XTProtector Cap. XT
-
53710000992 Clip. XTClip. XT
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
60414227300 ClipClip
-
61710001364 Starter RelayStarter Relay
-
62234161601 Lock Washer Helical M6Lock Washer Helical M6
-
63232061600 Hex. Nut M6Hex. Nut M6
-
64710001260 Solenoid SupportSolenoid Support
-
65207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
66233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
67710001000 Winch Solenoid. XTWinch Solenoid. XT
-
68232561434 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
69210262080 Hex. Forming Screw M6 X 20. XTHex. Forming Screw M6 X 20. XT
-
70710001261 Relay Support. XTRelay Support. XT
-
71390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
72710001001 Winch Interrupter. XTWinch Interrupter. XT
-
76710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
77250000153 Hex. Cap Screw 6-32 X 1/4''. XTHex. Cap Screw 6-32 X 1/4''. XT
-
78293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
79234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
80250000029 Hex. Screw M10 X 16. XTHex. Screw M10 X 16. XT
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84710001033 Strap Ass'yStrap Ass'y
-
85293850097 Retainer StrapRetainer Strap
-
86293850030 Strap ClipStrap Clip
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
