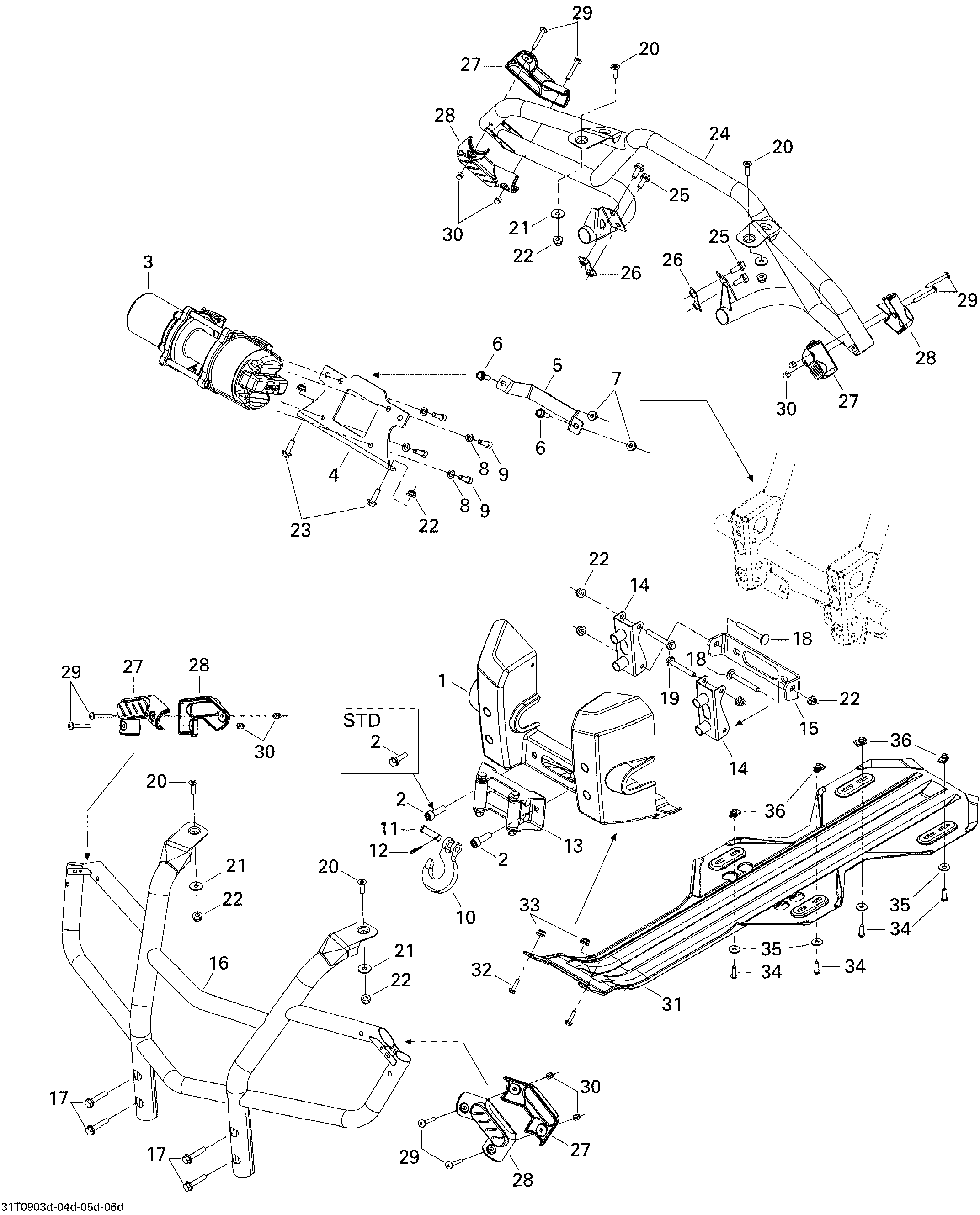

09- Body And Accessories 4, XT для BRP Outlander 500 EFI XT - 2009
-
№АртикулНазвание
-
1705002990 Front Protection Plate. XTFront Protection Plate. XT
-
2205003544 Socket Screw M10 X 35. XTSocket Screw M10 X 35. XT
-
3705002505 Winch. XTWinch. XT
-
3705003296 Winch. EuropeWinch. Europe
-
4705002816 Mounting Plate. XTMounting Plate. XT
-
5705001460 Winch Bracket, Black. XTWinch Bracket, Black. XT
-
6207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
7233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
8234181401 Lock Washer 8 mm. XTLock Washer 8 mm. XT
-
9205082044 Socket Head Screw M8 X 20. XTSocket Head Screw M8 X 20. XT
-
10705002329 Hook. XTHook. XT
-
11250400021 Clevis Pin. XTClevis Pin. XT
-
12250400022 Cotter Pin. XTCotter Pin. XT
-
13715000011 Winch Roller. XTWinch Roller. XT
-
14705001058 Bumper Anchoring. XTBumper Anchoring. XT
-
15705001073 Winch Bracket. XTWinch Bracket. XT
-
16705002677 Front Bumber. XTFront Bumber. XT
-
17207584044 Hex. Flanged Screw M8x40, Scotch Grip. XTHex. Flanged Screw M8x40, Scotch Grip. XT
-
18207787044 Carriage Bolt M8 X 70. XTCarriage Bolt M8 X 70. XT
-
19207686044 Hex. Flanged Screw M8 x 60. XTHex. Flanged Screw M8 x 60. XT
-
20235482584 Torx Screw M8 X 25. XTTorx Screw M8 X 25. XT
-
21234082410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
22233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
23207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
24705003220 Rear Bumper. XTRear Bumper. XT
-
25207582084 Hex. Flanged Screw M8 X 20, Scotch Grip. XTHex. Flanged Screw M8 X 20, Scotch Grip. XT
-
26705001075 Attachment Plate. XTAttachment Plate. XT
-
27705001042 Male Cap. XTMale Cap. XT
-
28705001043 Female Cap. XTFemale Cap. XT
-
29250000215 Torx Screw M6 X 45. XTTorx Screw M6 X 45. XT
-
30232361493 Domed Nut M6. XTDomed Nut M6. XT
-
31715000688 Skid Plate. Includes 31 to 36Skid Plate. Includes 31 to 36
-
32207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35234082410 Flat Washer 8 mmFlat Washer 8 mm
-
36250100111 Panel Nut M8Panel Nut M8
