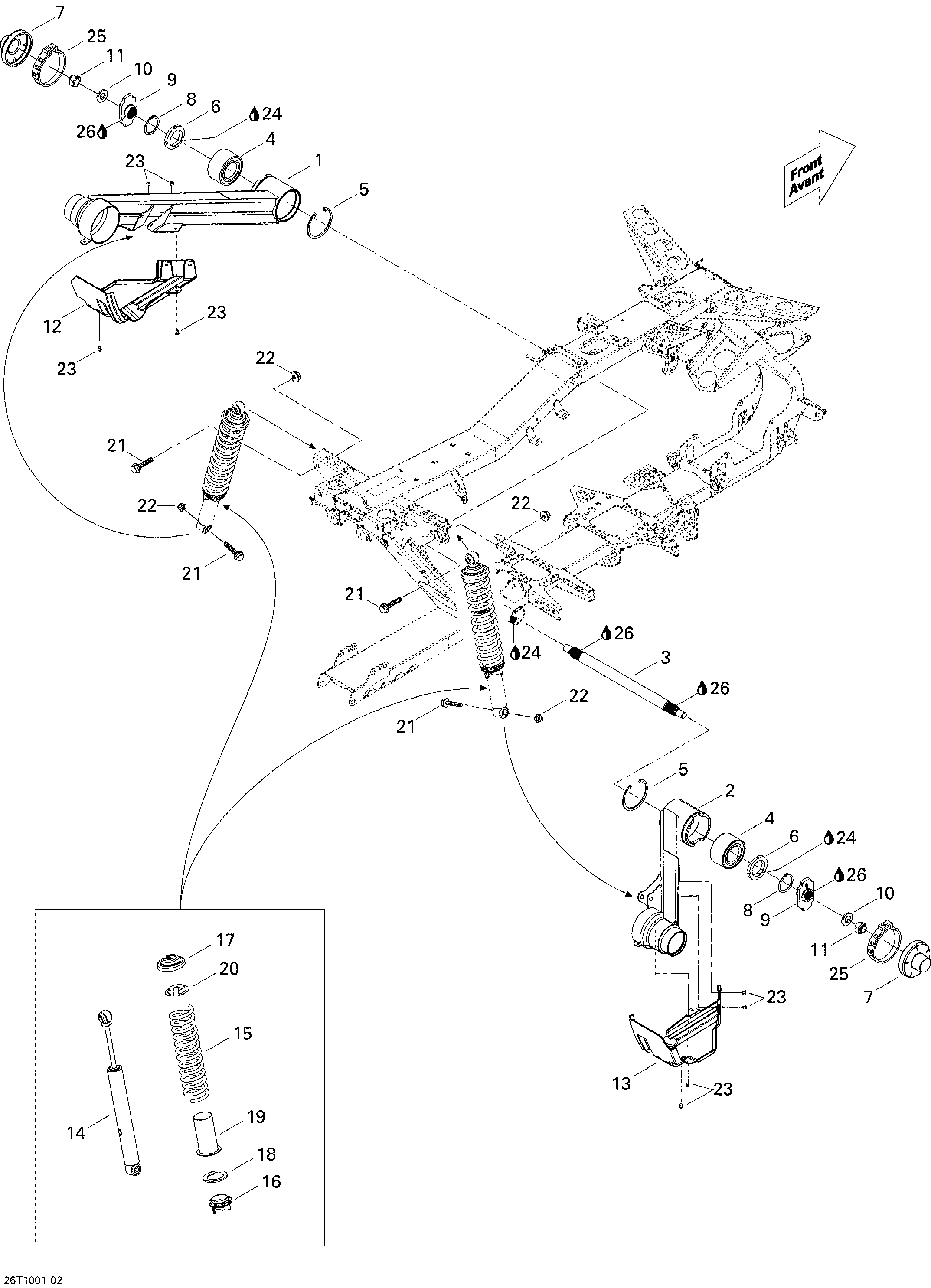

08- Rear Suspension для BRP Outlander 400 EFI - 2010
-
№АртикулНазвание
-
1706000634 LH Swing ArmLH Swing Arm
-
2706000635 RH Swing ArmRH Swing Arm
-
3706000450 Sway BarSway Bar
-
4293350037 Ball BearingBall Bearing
-
5293370041 CirclipCirclip
-
6706000221 NutNut
-
7706000749 CoverCover
-
8293370027 Circlip 45 mmCirclip 45 mm
-
9706000548 LeverLever
-
10250200045 WasherWasher
-
11232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
12706000333 LH ProtectorLH Protector
-
13706000334 RH ProtectorRH Protector
-
14706000391 Rear ShockRear Shock
-
15706000649 Paint SpringPaint Spring
-
16706000294 Adjuster RingAdjuster Ring
-
17706200881 Spring StopperSpring Stopper
-
18706000533 Spring SeatSpring Seat
-
19503139800 ProtectorProtector
-
20706200785 CapCap
-
21207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
22233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
25293650162 Oetiker ClampOetiker Clamp
-
26293800005 Loctite 271, 10 mlLoctite 271, 10 ml
