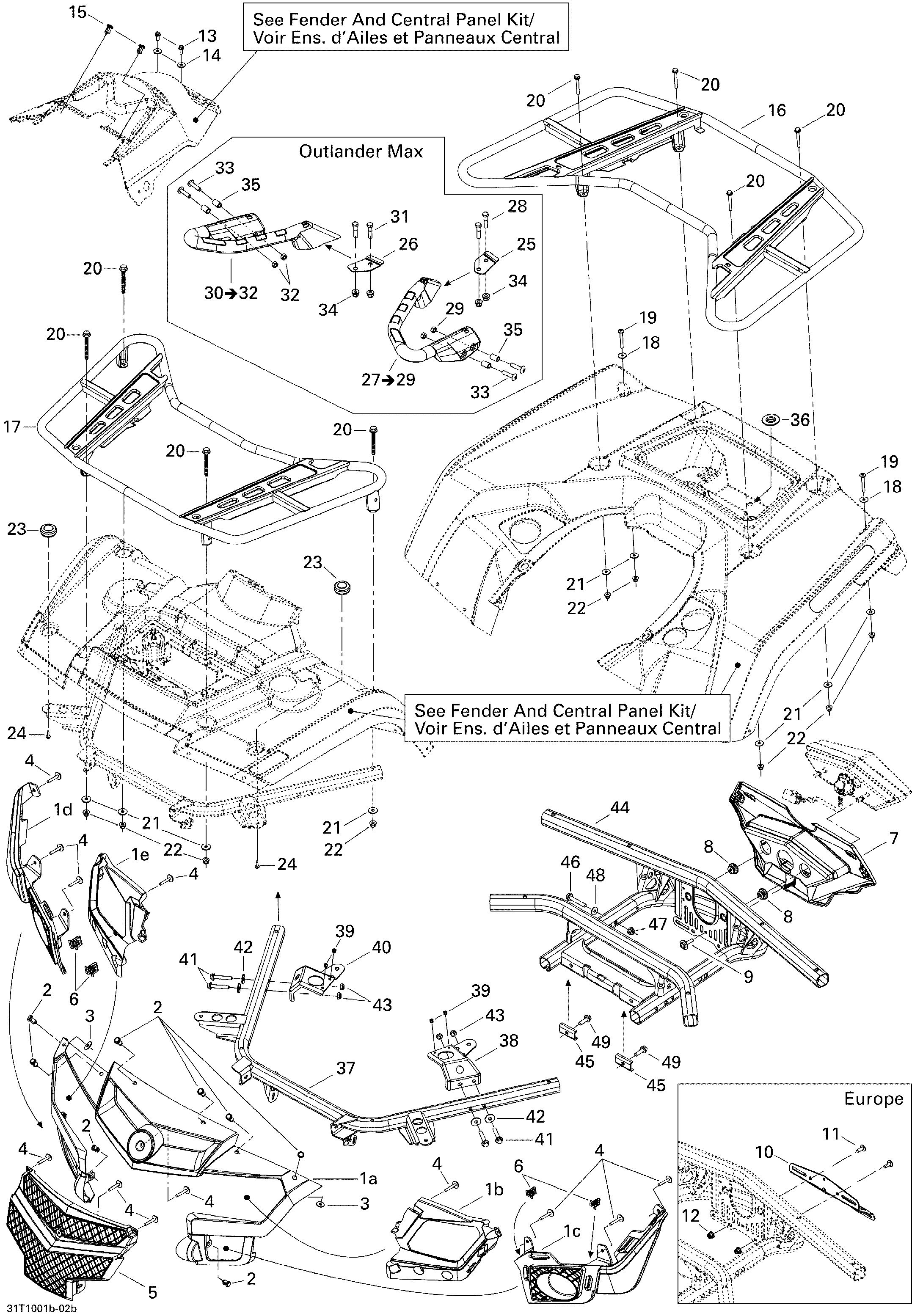

09- Body And Accessories 2 для BRP Outlander 400 EFI - 2010
-
№АртикулНазвание
-
1a705002778 Front Fascia, Yellow. Yellow ModelFront Fascia, Yellow. Yellow Model
-
1a705003080 Front Fascia, Red. Viper Red ModelFront Fascia, Red. Viper Red Model
-
1a705003640 Front Fascia, Green. Green ModelFront Fascia, Green. Green Model
-
1b705002825 LH Head Lamp SupportLH Head Lamp Support
-
1c705002780 LH Lower Front FaciaLH Lower Front Facia
-
1c705002889 LH Lower Front Facia. EuropeLH Lower Front Facia. Europe
-
1d705002781 RH Lower Front FaciaRH Lower Front Facia
-
1d705002890 RH Lower Front Facia. EuropeRH Lower Front Facia. Europe
-
1e705002826 RH Head Lamp SupportRH Head Lamp Support
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
5705002779 Upper GrillUpper Grill
-
6517302785 ClipClip
-
7705003840 Rear FaciaRear Facia
-
8705003666 Rubber GrommetRubber Grommet
-
9250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
10705002499 Support. EuropeSupport. Europe
-
11250000261 Torx Screw M6 X 16. EuropeTorx Screw M6 X 16. Europe
-
12233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
13210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14391302000 Flat WasherFlat Washer
-
15293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
16705002617 Rear Luggage RackRear Luggage Rack
-
17705002616 Front Luggage RackFront Luggage Rack
-
18250200040 Flat WasherFlat Washer
-
19250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
20207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
21250200072 Flat WasherFlat Washer
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23705003667 Rubber CapRubber Cap
-
24365901100 Hex. Screw 12 X 3/4Hex. Screw 12 X 3/4
-
36414859400 CapCap
-
37705003655 Front SupportFront Support
-
38705002995 LH Anchor PlateLH Anchor Plate
-
39390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
40705002997 RH Anchor PlateRH Anchor Plate
-
41207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
42234082410 Flat Washer 8 mmFlat Washer 8 mm
-
43232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
44705003656 Rear SupportRear Support
-
45705003647 U ReinforcementU Reinforcement
-
46207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
48234082410 Flat Washer 8 mmFlat Washer 8 mm
-
49207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
