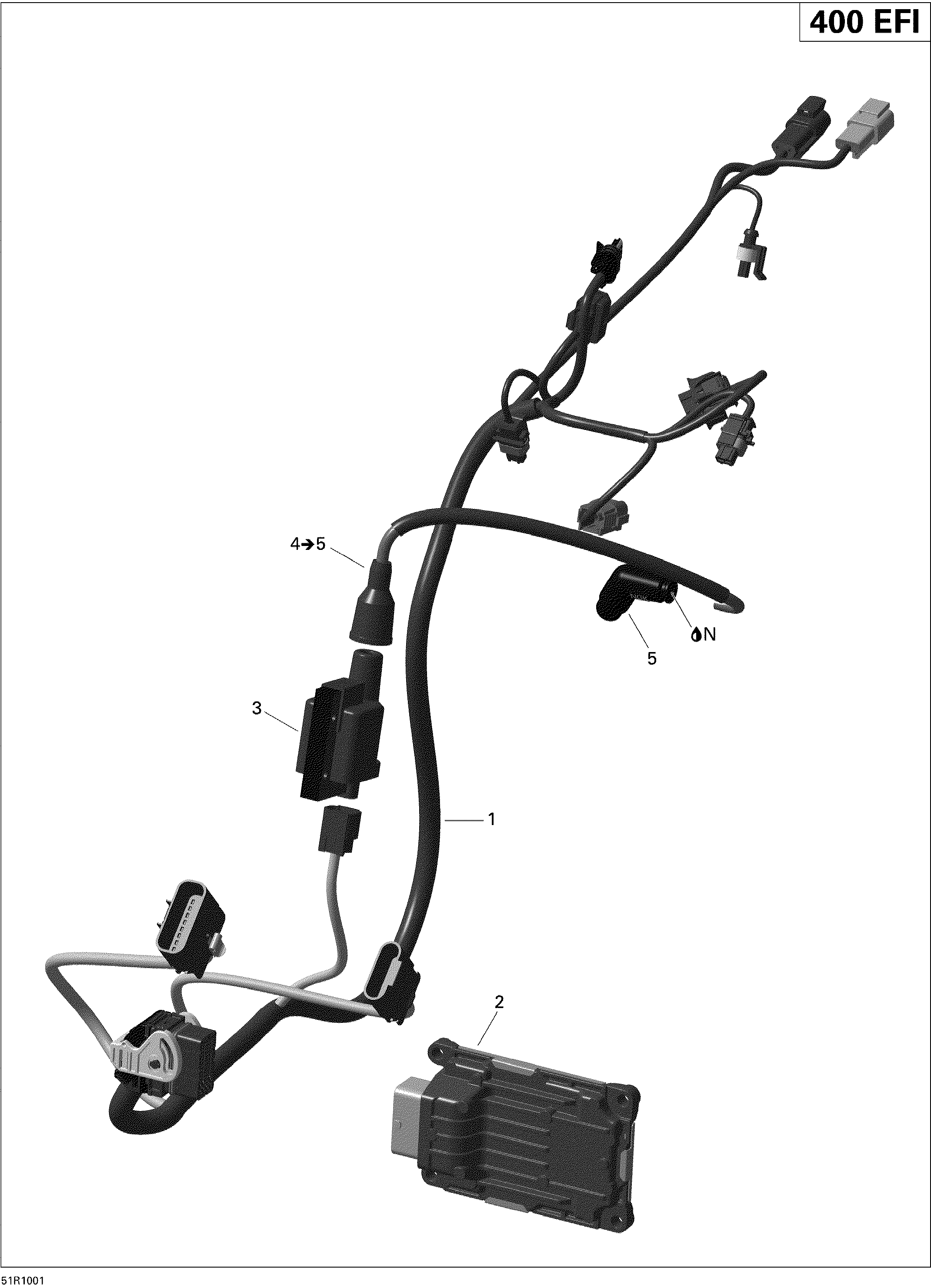

10- Engine Harness And Electronic Module для BRP Outlander 400 EFI - 2010
-
№АртикулНазвание
-
1420265837 Engine Wiring Harness Ass'yEngine Wiring Harness Ass'y
-
2420266820 ECM, Engine Control Module. North AmericaECM, Engine Control Module. North America
-
2420266821 ECM, Engine Control Module. EuropeECM, Engine Control Module. Europe
-
2420266579 ECM, Engine Control Module. InternationalECM, Engine Control Module. International
-
3420665710 Ignition CoilIgnition Coil
-
4420266600 Spark Plug Cable. Includes 4 to 5Spark Plug Cable. Includes 4 to 5
-
5420265240 Spark Plug ConnectorSpark Plug Connector
-
N293550030 Grease, Super LubeGrease, Super Lube
