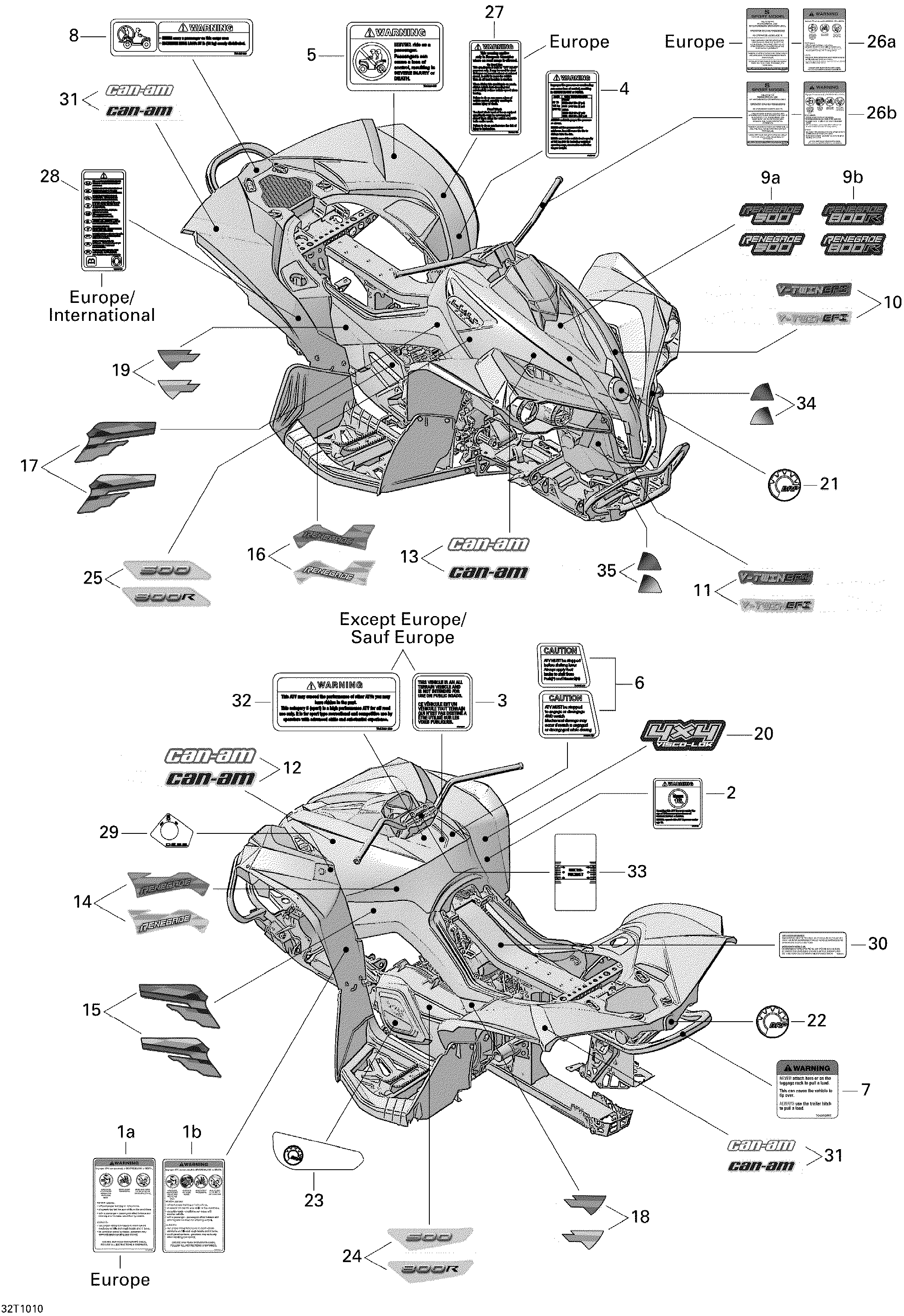

09- Decals 500 EFI для BRP Renegade 500 EFI - 2010
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4704901419 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704901308 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7704902005 Warning Label, Porte-BagagesWarning Label, Porte-Bagages
-
8704901333 Warning Decal, LoadWarning Decal, Load
-
9a704901523 Console Decal, 500. Viper Red 500 EFIConsole Decal, 500. Viper Red 500 EFI
-
9a704901827 Console Decal, 500. Yellow 500 EFIConsole Decal, 500. Yellow 500 EFI
-
10704901526 LH Front Center Decal. Viper RedLH Front Center Decal. Viper Red
-
10704901527 LH Front Center Decal. YellowLH Front Center Decal. Yellow
-
11704901824 RH Front Center Decal. Viper RedRH Front Center Decal. Viper Red
-
11704901825 RH Front Center Decal. YellowRH Front Center Decal. Yellow
-
12704901550 LH Front Can-am Decal. Viper RedLH Front Can-am Decal. Viper Red
-
12704901551 LH Front Can-am Decal. YellowLH Front Can-am Decal. Yellow
-
13704901823 RH Front Can-am Decal. Viper RedRH Front Can-am Decal. Viper Red
-
13704901822 RH Front Can-am Decal. YellowRH Front Can-am Decal. Yellow
-
14704901536 LH Side Decal. Viper RedLH Side Decal. Viper Red
-
14704901537 LH Side Decal. YellowLH Side Decal. Yellow
-
15704901538 LH Side Decal. Viper RedLH Side Decal. Viper Red
-
15704901539 LH Side Decal. YellowLH Side Decal. Yellow
-
16704901540 RH Side Decal. Viper RedRH Side Decal. Viper Red
-
16704901541 RH Side Decal. YellowRH Side Decal. Yellow
-
17704901542 RH Side Decal. Viper RedRH Side Decal. Viper Red
-
17704901543 RH Side Decal. YellowRH Side Decal. Yellow
-
18704901531 LH Side Decal. Viper RedLH Side Decal. Viper Red
-
18704901532 LH Side Decal. YellowLH Side Decal. Yellow
-
19704901528 RH Side Decal. Viper RedRH Side Decal. Viper Red
-
19704901529 RH Side Decal. YellowRH Side Decal. Yellow
-
20704901486 Decal, 4X4Decal, 4X4
-
21219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
22219902468 Logo, BRP 48 mmLogo, BRP 48 mm
-
23704900963 Decal, CVTDecal, CVT
-
24704901554 Decal, CVT 500. 500 EFIDecal, CVT 500. 500 EFI
-
25704901555 Decal, Engine Cover, 500. 500 EFIDecal, Engine Cover, 500. 500 EFI
-
26a704901877 Warning Decal, General Use Model. EuropeWarning Decal, General Use Model. Europe
-
26b704901876 Warning Decal, General Use Model. Except EuropeWarning Decal, General Use Model. Except Europe
-
27704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
28704901177 International Decal, Multilingual. Europe, InternationalInternational Decal, Multilingual. Europe, International
-
29704901311 D.E.S.S DecalD.E.S.S Decal
-
30707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
31704901548 Rear Can-am Decal. Viper RedRear Can-am Decal. Viper Red
-
31704901549 Rear Can-am Decal. YellowRear Can-am Decal. Yellow
-
32704900089 Warning Decal, Performance. Except EuropeWarning Decal, Performance. Except Europe
-
33704901411 Micro-Adjust DecalMicro-Adjust Decal
-
34704901534 LH Front Decal. Viper RedLH Front Decal. Viper Red
-
34704901488 LH Front Decal. YellowLH Front Decal. Yellow
-
35704901535 RH Front Decal. Viper RedRH Front Decal. Viper Red
-
35704901487 RH Front Decal. YellowRH Front Decal. Yellow
