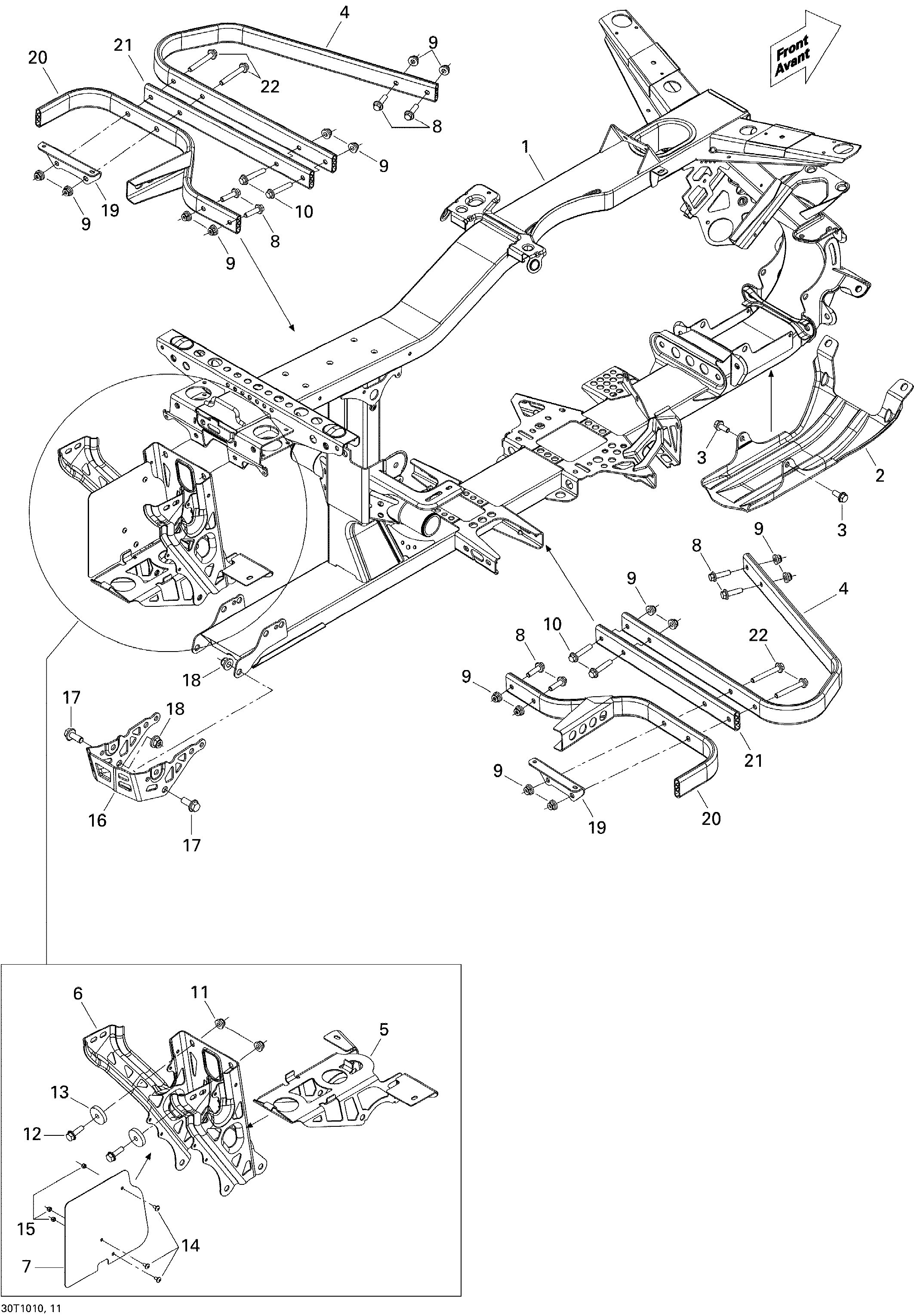

09- Frame для BRP Renegade 500 EFI - 2010
-
№АртикулНазвание
-
1705201801 Frame, BlackFrame, Black
-
2705201432 Skid PlateSkid Plate
-
3207582084 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4705201877 ReinforcementReinforcement
-
5705201942 Battery Support BaseBattery Support Base
-
6705202142 Rear Battery Support, BlackRear Battery Support, Black
-
7705201510 Head ShieldHead Shield
-
8207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
11233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
13705202083 SpacerSpacer
-
14250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
15232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
16705201504 Support, BlackSupport, Black
-
17207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
18233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
19705201535 SupportSupport
-
20705202085 Rear FootrestRear Footrest
-
21705201992 TubeTube
-
22207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
