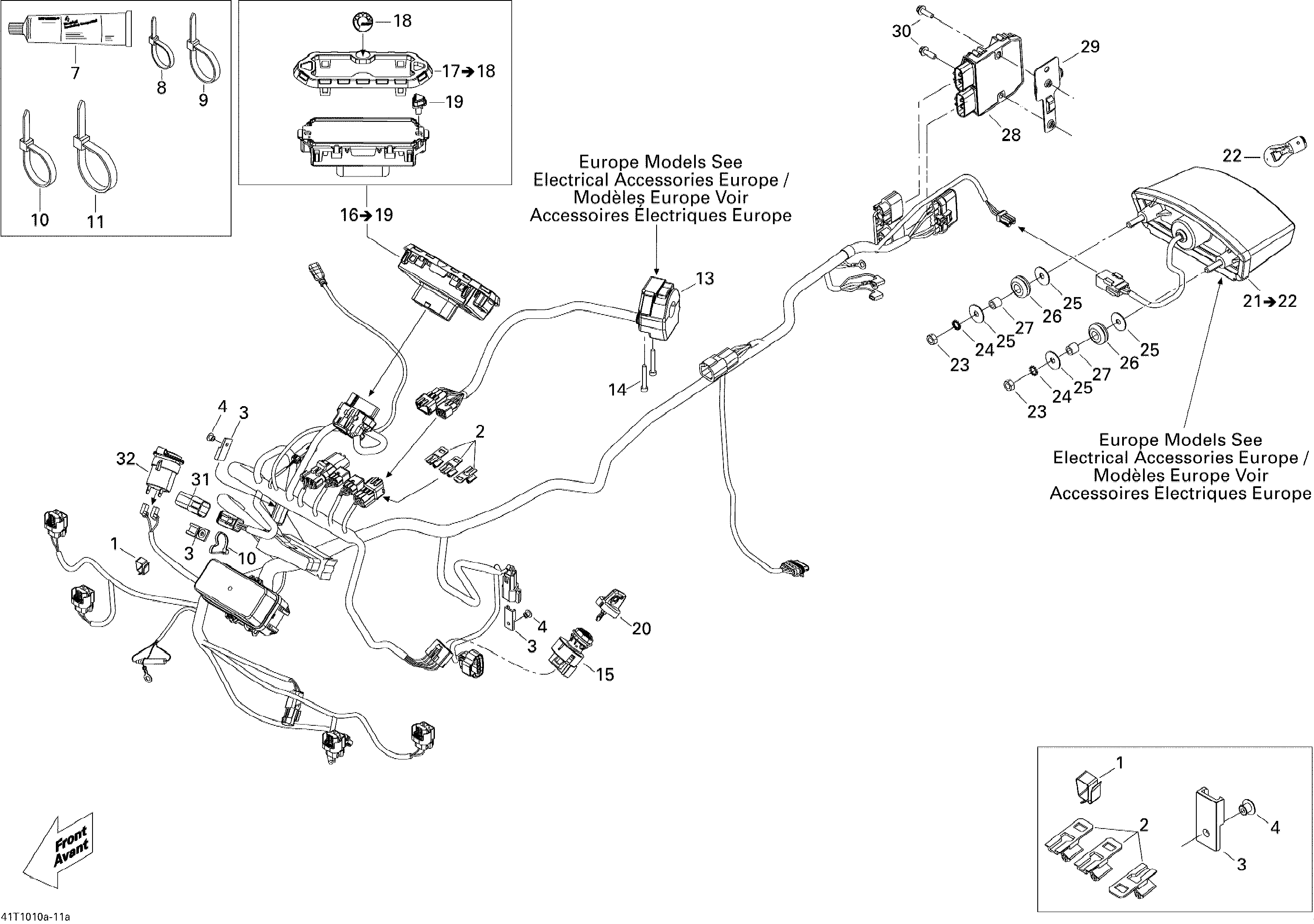

10- Electrical Accessories 500 EFI для BRP Renegade 500 EFI - 2010
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
2515175283 Housing Support. EuropeHousing Support. Europe
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
7293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
8293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13710000791 Multi-fonction HandleMulti-fonction Handle
-
13710001428 Multi function Handle. EuropeMulti function Handle. Europe
-
14205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
15710001421 Ignition SwitchIgnition Switch
-
16710001987 Speedometer. Includes 16 to 19Speedometer. Includes 16 to 19
-
17710001183 Trim Ring. Includes 17 to 18Trim Ring. Includes 17 to 18
-
18704901270 BRP Logo, 13mmBRP Logo, 13mm
-
19710001473 ButtonButton
-
20710000817 Black-Electronic KeyBlack-Electronic Key
-
20710000817 Black-Electronic Key. EuropeBlack-Electronic Key. Europe
-
21710000760 Tail Light. Includes 21 to 22, EuropeTail Light. Includes 21 to 22, Europe
-
21710001041 Tail Light. Includes 21 to 22Tail Light. Includes 21 to 22
-
22410504100 Tail Light BulbTail Light Bulb
-
23232061600 Hex. Nut M6Hex. Nut M6
-
24234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25224060201 Flat WasherFlat Washer
-
26293720053 GrommetGrommet
-
27293900045 BushingBushing
-
28710001103 Voltage RegulatorVoltage Regulator
-
29710001262 Rectifier SupportRectifier Support
-
30210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
31278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
32710001248 Outlet DCOutlet DC
