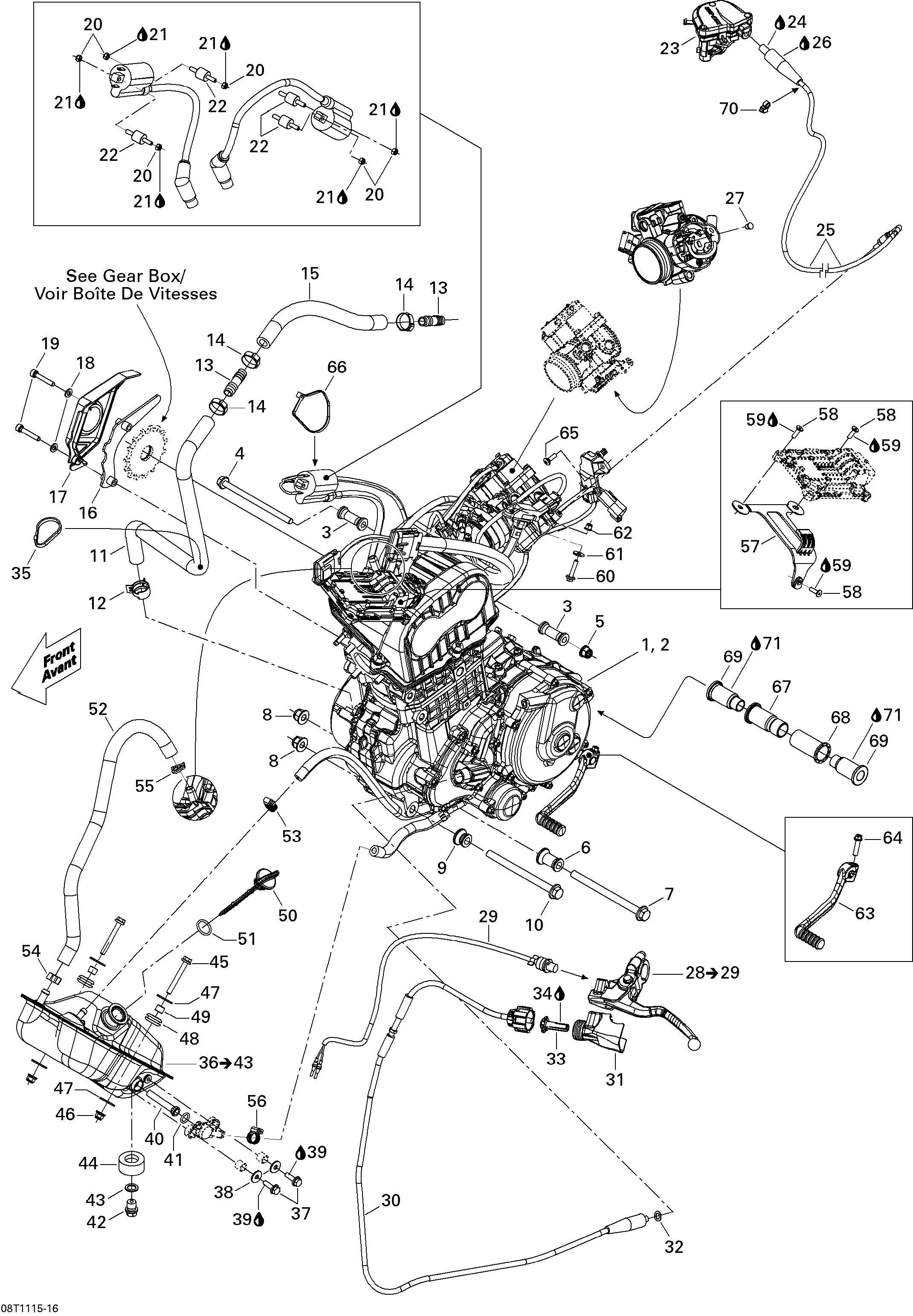

01- Engine And Engine Support для BRP DS 450 EFI - 2011
-
№АртикулНазвание
-
2420044903 Long Block, 449 EFI EngineLong Block, 449 EFI Engine
-
3293900071 SpacerSpacer
-
4230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6293900072 SpacerSpacer
-
7230603536 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9293900074 SpacerSpacer
-
10230603036 Hex. Flanged Screw M10 X 130Hex. Flanged Screw M10 X 130
-
11707000502 HoseHose
-
12293650110 Norma ClampNorma Clamp
-
13293710119 ConnectorConnector
-
14293650012 Oetiker ClampOetiker Clamp
-
15707000537 Hose 12 mmHose 12 mm
-
16707000464 Chain GuardChain Guard
-
17707000425 Sprocket CoverSprocket Cover
-
18234061430 Flat Washer M6Flat Washer M6
-
19205563536 Socket Head Screw M6 X 35, Scotch GripSocket Head Screw M6 X 35, Scotch Grip
-
20233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22707000746 Rubber MountRubber Mount
-
23707000440 Throttle HandleThrottle Handle
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25707000439 Throttle CableThrottle Cable
-
26293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
27707000434 Cable GuideCable Guide
-
28707000469 Handle Lever Ass'y. Includes 28 to 29Handle Lever Ass'y. Includes 28 to 29
-
29707000183 Lever Shifter SwitchLever Shifter Switch
-
30707000422 Clutch CableClutch Cable
-
31293830122 BootBoot
-
32504082900 WasherWasher
-
33707000602 ScrewScrew
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36707000806 Oil Tank Ass'y. Includes 36 to 43Oil Tank Ass'y. Includes 36 to 43
-
37207662034 Hex. Flanged ScrewHex. Flanged Screw
-
38234062430 Flat Washer M6Flat Washer M6
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40519000144 StrainerStrainer
-
41293300128 O-RingO-Ring
-
42250500010 PlugPlug
-
43250200061 Copper WasherCopper Washer
-
44705001678 Rubber StopperRubber Stopper
-
45207665034 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
46233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
47250200099 Flat WasherFlat Washer
-
48293720062 GrommetGrommet
-
49293900089 SpacerSpacer
-
50707000526 Oil CapOil Cap
-
51709000089 O-RingO-Ring
-
52707000544 HoseHose
-
53293650171 Tridon Gear ClampTridon Gear Clamp
-
54293650011 Oetiker ClampOetiker Clamp
-
55293650180 Rotoclip ClampRotoclip Clamp
-
56293650171 Tridon Gear ClampTridon Gear Clamp
-
57710000972 Module SupportModule Support
-
58250000295 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
60207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
61391301600 WasherWasher
-
62233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
63420248540 Gearshift PedalGearshift Pedal
-
64420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
65250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
66293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
67707000947 RH SpacerRH Spacer
-
68707000948 LH SpacerLH Spacer
-
69707000800 Rubber MountRubber Mount
-
70293750002 Tie-Rap 130 mmTie-Rap 130 mm
