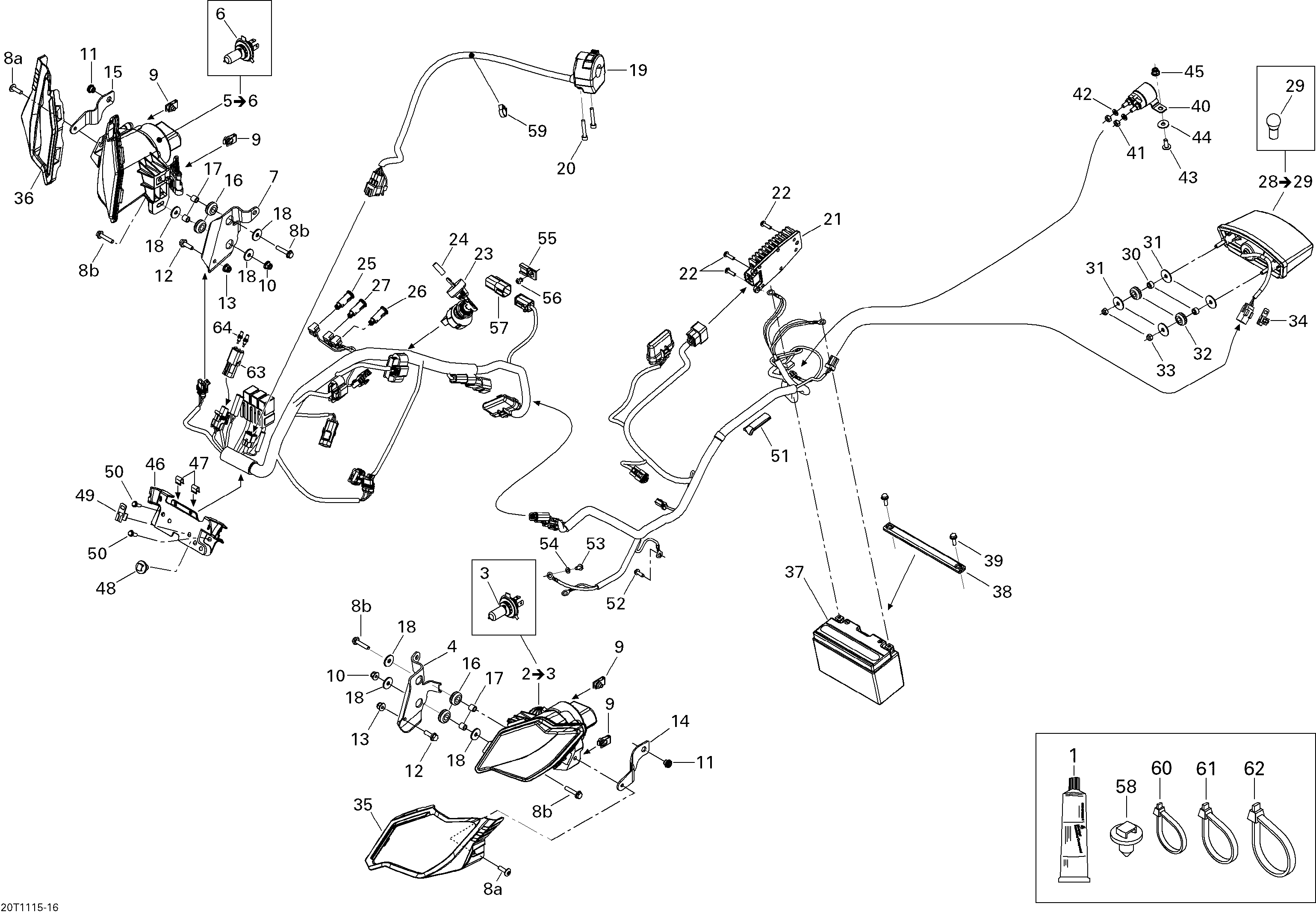

10- Electrical System для BRP DS 450 EFI - 2011
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2710001469 LH Front Light. Includes 2 to 3LH Front Light. Includes 2 to 3
-
3710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
4710001763 LH Front SupportLH Front Support
-
5710001470 RH Front Light. Includes 5 to 6RH Front Light. Includes 5 to 6
-
6710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
7710001764 RH Front SupportRH Front Support
-
8a250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8b207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
11293450274 InsertInsert
-
12207662034 Hex. Flanged ScrewHex. Flanged Screw
-
13233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
14710001519 LH SupportLH Support
-
15710001520 RH SupportRH Support
-
16293720053 GrommetGrommet
-
17293900045 BushingBushing
-
18224061201 Flat WasherFlat Washer
-
19710000975 Multi Function SwitchMulti Function Switch
-
20205053088 Socket Head ScrewSocket Head Screw
-
21710000803 RectifierRectifier
-
22207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
23710002323 Ingnition Switch With KeyIngnition Switch With Key
-
23a715900029 Blank KeyBlank Key
-
24415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
25710001010 Pilot Lamp, EnginePilot Lamp, Engine
-
26710001259 Pilot Lamp, Low FuelPilot Lamp, Low Fuel
-
27710001012 Pilot Lamp, NeutralPilot Lamp, Neutral
-
28710001041 Tail Light. Includes 28 to 29Tail Light. Includes 28 to 29
-
29520000758 BulbBulb
-
30293900089 SpacerSpacer
-
31250200099 Flat WasherFlat Washer
-
32293720053 GrommetGrommet
-
33232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
34515175283 Housing SupportHousing Support
-
35710001310 ProtectorProtector
-
36710001311 ProtectorProtector
-
37715500305 BatteryBattery
-
38710002266 Battery SupportBattery Support
-
39207662034 Hex. Flanged ScrewHex. Flanged Screw
-
40710001364 Starter RelayStarter Relay
-
41232061600 Hex. Nut M6Hex. Nut M6
-
42234161601 Lock Washer Helical M6Lock Washer Helical M6
-
43250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
45233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
46710001074 Housing SupportHousing Support
-
47414479100 ClipClip
-
48293730018 Mount DartMount Dart
-
49515175283 Housing SupportHousing Support
-
50207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
51293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
52207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
53207551034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
54234051430 Flat WasherFlat Washer
-
55270000141 ClipClip
-
56390909200 Avex RivetAvex Rivet
-
57278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
58293730018 Mount DartMount Dart
-
59293650082 ClampClamp
-
60293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
61414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
62293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
63278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
64278000216 Wire SealWire Seal
