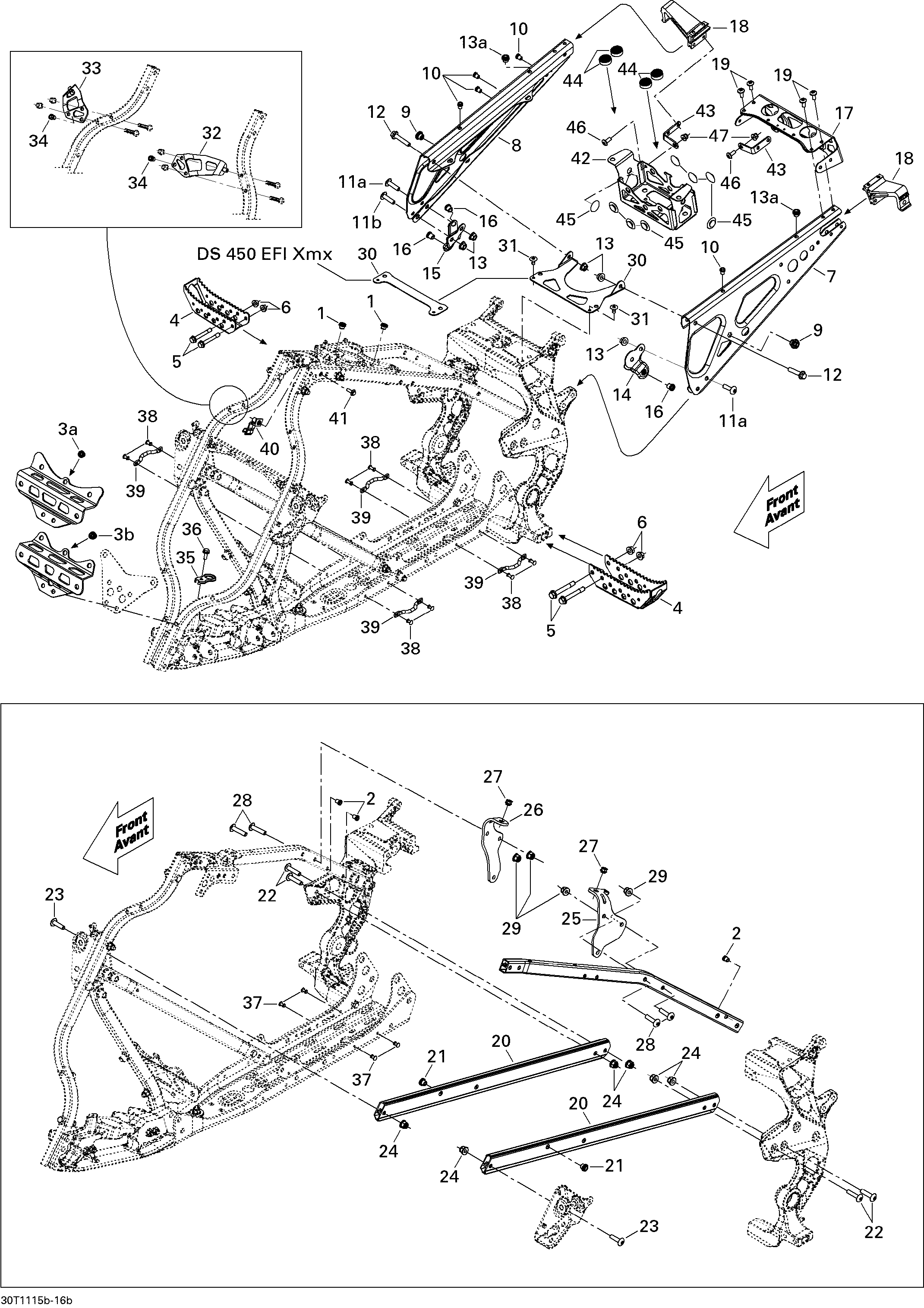

09- Frame, System 2 для BRP DS 450 EFI - 2011
-
№АртикулНазвание
-
1293450274 InsertInsert
-
2293450268 InsertInsert
-
3b293450275 InsertInsert
-
4705201044 FootrestFootrest
-
5207586034 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
6233181434 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
7705202470 LH ExtensionLH Extension
-
8705202471 RH ExtensionRH Extension
-
9293450274 InsertInsert
-
10293450268 InsertInsert
-
11a250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
11b250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
12207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13233181434 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
13a293450275 InsertInsert
-
14707600399 LH BracketLH Bracket
-
15705201485 RH BracketRH Bracket
-
16293450275 InsertInsert
-
17705201898 Plate SupportPlate Support
-
18705002094 Rear Fender SupportRear Fender Support
-
19250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
20705201059 Side MemberSide Member
-
21293450275 InsertInsert
-
22250000256 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
23250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
24233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
25705201380 LH Engine SupportLH Engine Support
-
26705201381 RH Engine SupportRH Engine Support
-
27293450278 InsertInsert
-
28250000256 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
29233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30705202014 Rear BraceRear Brace
-
31293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
32705201461 LH Body Attachment PlateLH Body Attachment Plate
-
33705201462 RH Body Attachment PlateRH Body Attachment Plate
-
34293450268 InsertInsert
-
35705201550 Radiator GuideRadiator Guide
-
36207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
37390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40707000561 Cable SupportCable Support
-
41243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
42705202456 SupportSupport
-
43707000864 BracketBracket
-
44708000506 Rubber StopperRubber Stopper
-
45708000862 Rubber StopperRubber Stopper
-
46250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
47233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
