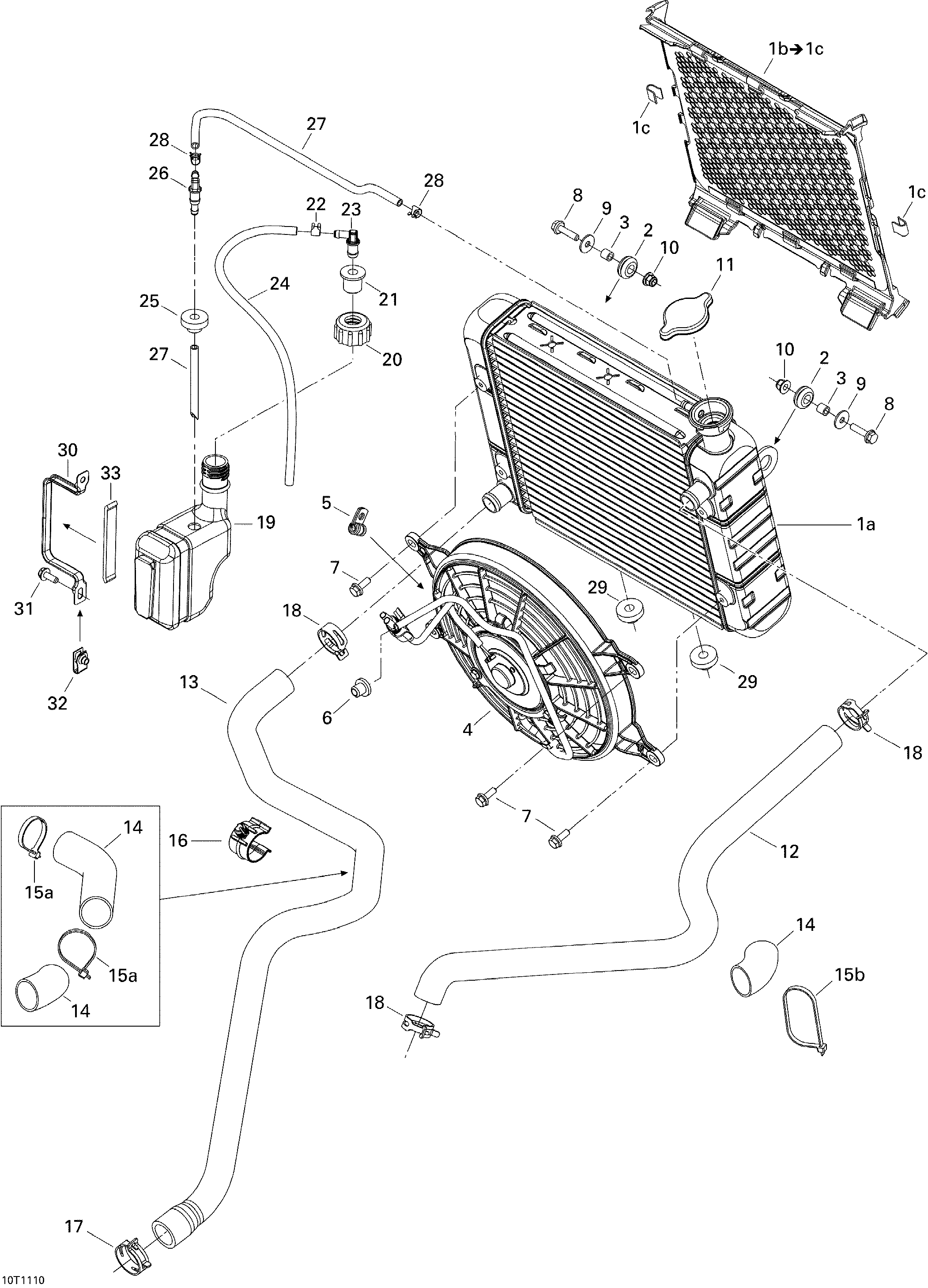

01- Cooling System для BRP Outlander 800R EFI, XXC - 2011
-
№АртикулНазвание
-
1a709200305 RadiatorRadiator
-
1b709200187 Radiator Protector. Includes 1b to 1cRadiator Protector. Includes 1b to 1c
-
1c414479100 ClipClip
-
2293720053 GrommetGrommet
-
3293900045 BushingBushing
-
4709200371 Fan Ass'yFan Ass'y
-
5705600459 ClampClamp
-
6293720029 GrommetGrommet
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9391302000 Flat WasherFlat Washer
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11709200207 Pressure CapPressure Cap
-
12709200182 Inlet HoseInlet Hose
-
13709200246 Hose OutletHose Outlet
-
14515176260 Tubing 35mmTubing 35mm
-
15a414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15b293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
16275500590 RetainerRetainer
-
17293650108 Norma Spring ClampNorma Spring Clamp
-
18293650109 Norma Spring ClampNorma Spring Clamp
-
19709200099 Coolant TankCoolant Tank
-
20548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
21293830136 GrommetGrommet
-
22414554800 Spring ClampSpring Clamp
-
23414580700 Male ConnectorMale Connector
-
24415080200 Hose, PolyurethaneHose, Polyurethane
-
25709200285 GrommetGrommet
-
26414580600 Elbow Male ConnectorElbow Male Connector
-
27415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
28414554800 Spring ClampSpring Clamp
-
29709200285 GrommetGrommet
-
30709200080 Tank AnchorTank Anchor
-
31210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
32250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
33293250087 GasketGasket
