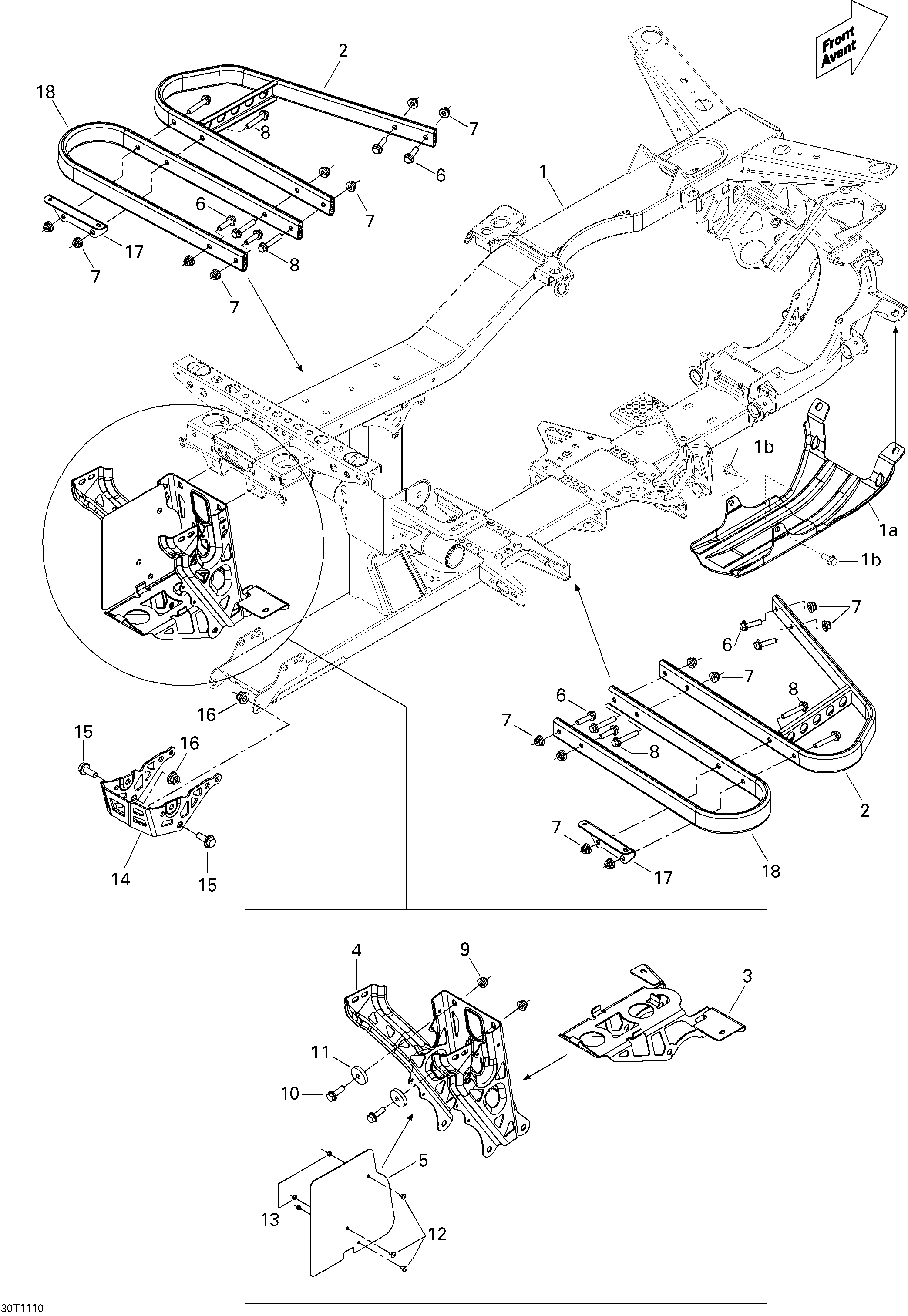

09- Frame для BRP Outlander 800R EFI, XXC - 2011
-
№АртикулНазвание
-
1705202416 Black FrameBlack Frame
-
1a705202399 Protection PlateProtection Plate
-
1b207562044 Hex Screw Scotch GripHex Screw Scotch Grip
-
2705202081 Footboard Ass'yFootboard Ass'y
-
3705201942 Battery Support BaseBattery Support Base
-
4705202142 Rear Battery Support, BlackRear Battery Support, Black
-
5705202394 Heat ShieldHeat Shield
-
6207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11705202083 SpacerSpacer
-
12250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
13232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
14705201504 Support, BlackSupport, Black
-
15207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
16233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17705202402 SupportSupport
-
18705201993 Rear FootrestRear Footrest
