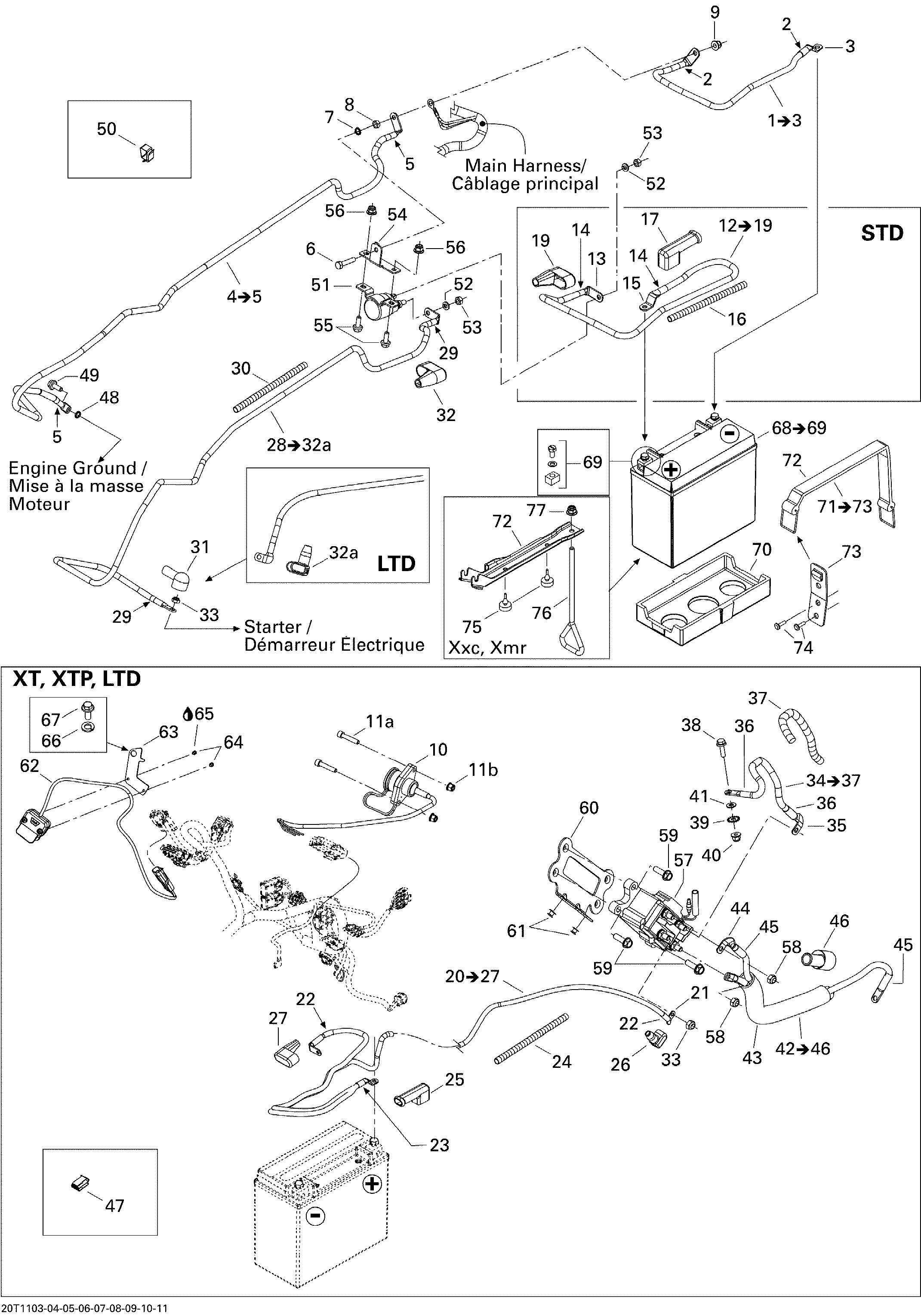

10- Electrical System для BRP Outlander 800R EFI, XXC - 2011
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000831 Ground Cable. Includes 4 to 5Ground Cable. Includes 4 to 5
-
5710000483 Shrink TubingShrink Tubing
-
6207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
7234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
8232061414 Hex. Nut M6Hex. Nut M6
-
9233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
12710001822 Positive Cable. Includes 12 to 19Positive Cable. Includes 12 to 19
-
14710000483 Shrink TubingShrink Tubing
-
16710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
17710001829 Protector CapProtector Cap
-
19710001817 Protector CapProtector Cap
-
28710001818 Positive Cable. Includes 28 to 32aPositive Cable. Includes 28 to 32a
-
29710000483 Shrink TubingShrink Tubing
-
30710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
31710000526 Protector CapProtector Cap
-
32710001817 Protector CapProtector Cap
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
48234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
49207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
50414227300 ClipClip
-
51710001364 Starter RelayStarter Relay
-
52234161601 Lock Washer Helical M6Lock Washer Helical M6
-
53232061600 Hex. Nut M6Hex. Nut M6
-
54710001260 Solenoid SupportSolenoid Support
-
55207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
56233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
67250000029 Hex. Screw M10 X 16Hex. Screw M10 X 16
-
68410301203 Battery, 18 Amperes. Includes 68 to 69Battery, 18 Amperes. Includes 68 to 69
-
69295500849 Battery Fastener KitBattery Fastener Kit
-
70710000279 Insulator PadInsulator Pad
-
71710001019 Fixation PlateFixation Plate
-
75708000759 Rubber StopperRubber Stopper
-
76710001107 HookHook
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
