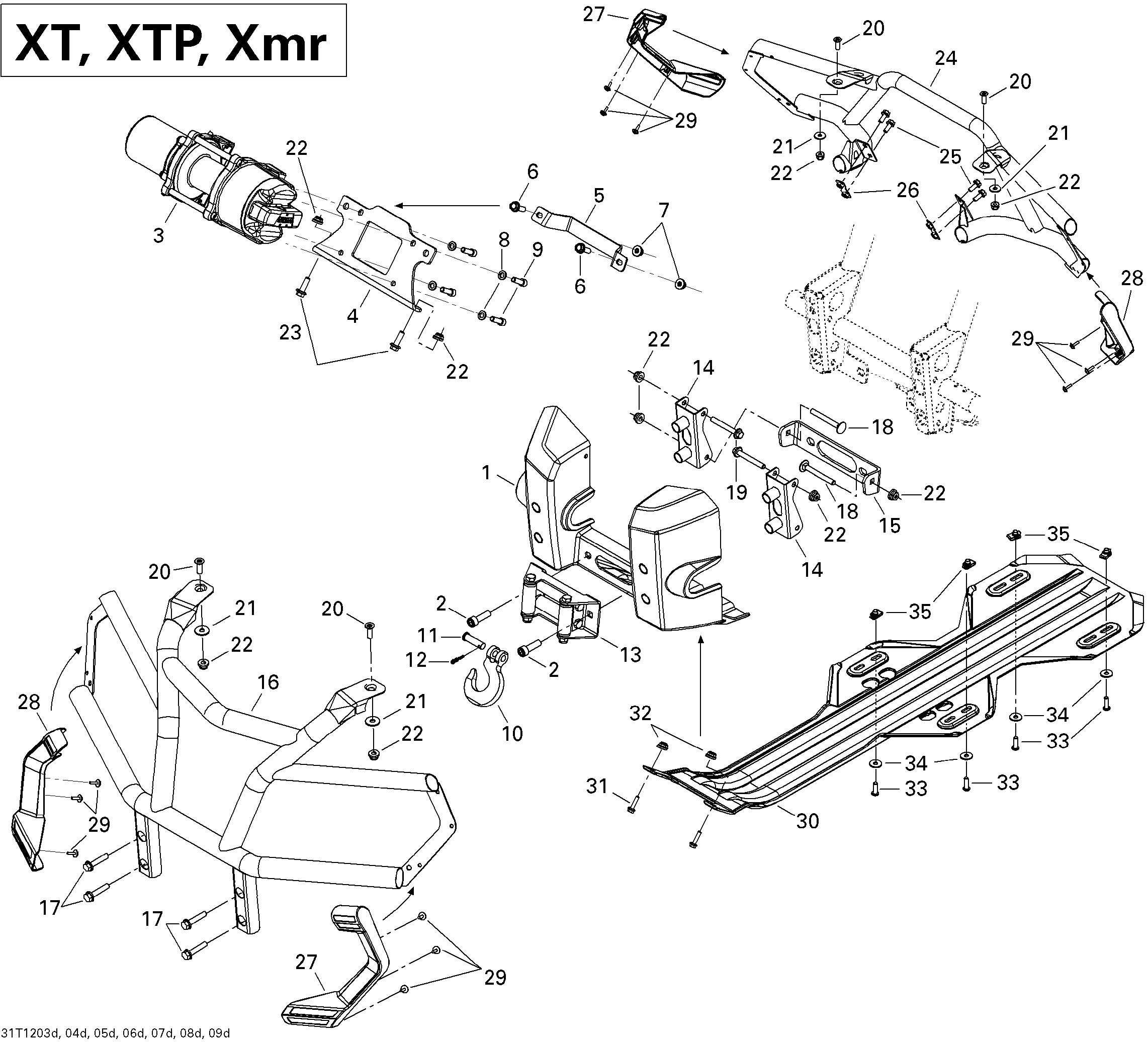

09- Body And Accessories 4 для BRP Outlander 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1705003495 Guard Plate. STDGuard Plate. STD
-
1705003496 Guard Plate. XTGuard Plate. XT
-
2205003544 Socket Screw M10 X 35. XTSocket Screw M10 X 35. XT
-
3705003296 Winch. XTWinch. XT
-
4705004278 Mounting Plate, Black. XTMounting Plate, Black. XT
-
5705001460 Winch Bracket, Black. XTWinch Bracket, Black. XT
-
6207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
7233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
8234181401 Lock Washer 8 mm. XTLock Washer 8 mm. XT
-
9205082044 Socket Head Screw M8 X 20. XTSocket Head Screw M8 X 20. XT
-
10705002329 Hook. XTHook. XT
-
11250400021 Clevis Pin. XTClevis Pin. XT
-
12250400022 Cotter Pin. XTCotter Pin. XT
-
13715000011 Winch Roller. XTWinch Roller. XT
-
14705003828 Bumper Bracket. XTBumper Bracket. XT
-
15705003649 Winch Bracket. XTWinch Bracket. XT
-
16705002812 Front Bumber. XTFront Bumber. XT
-
18207787044 Carriage Bolt M8 X 70. XTCarriage Bolt M8 X 70. XT
-
19207686044 Hex. Flanged Screw M8 x 60. XTHex. Flanged Screw M8 x 60. XT
-
20235482584 Torx Screw M8 X 25. XTTorx Screw M8 X 25. XT
-
21234082410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
22233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
22233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
23207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
24705002806 Rear Bumber. XTRear Bumber. XT
-
25207582084 Hex. Flanged Screw M8 X 20, Scotch Grip. XTHex. Flanged Screw M8 X 20, Scotch Grip. XT
-
26705003796 Link Plate. XTLink Plate. XT
-
27705002802 LH Front Cap. XTLH Front Cap. XT
-
28705002803 RH Front Cap. XTRH Front Cap. XT
-
29250000113 Screw M4 X 16, Type K-40. XTScrew M4 X 16, Type K-40. XT
-
30715000688 Skid PlateSkid Plate
-
31207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
34234082410 Flat Washer 8 mmFlat Washer 8 mm
-
35250100111 Panel Nut M8Panel Nut M8
