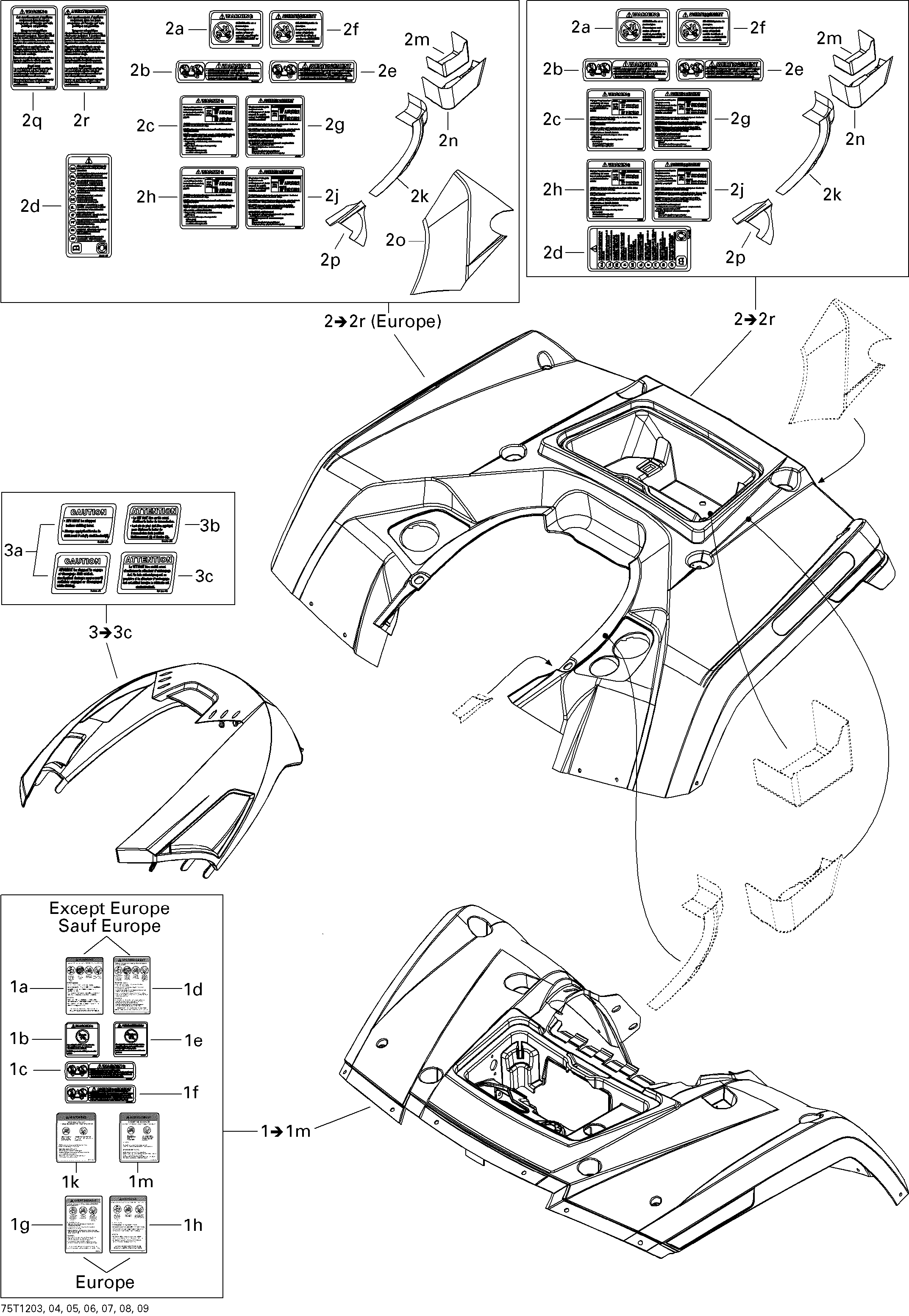

09- Fender And Central Panel Kit для BRP Outlander 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1715000809 Front Fender Kit, Red. OUT RedFront Fender Kit, Red. OUT Red
-
1715000811 Front Fender Kit, Yellow. OUT Yellow XTFront Fender Kit, Yellow. OUT Yellow XT
-
1715000815 Front Fender Kit, Black. OUT BlackFront Fender Kit, Black. OUT Black
-
1715001146 Front Fender Kit, Camo. OUT CamoFront Fender Kit, Camo. OUT Camo
-
1a704901878 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
1b704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
1c704901089 Warning Decal, LoadWarning Decal, Load
-
1d704900002 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
1e704900012 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
1f704901090 Warning Decal, LoadWarning Decal, Load
-
1g704901441 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
1h704901875 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
2715000819 Rear Fender Kit, Red. OUT Red Except EuropeRear Fender Kit, Red. OUT Red Except Europe
-
2715000820 Rear Fender Kit, Yellow. OUT Yellow Except EuropeRear Fender Kit, Yellow. OUT Yellow Except Europe
-
2715000821 Rear Fender Kit, Black. OUT Black Except EuropeRear Fender Kit, Black. OUT Black Except Europe
-
2715000822 Rear Fender Kit, Black. OUT Black EuropeRear Fender Kit, Black. OUT Black Europe
-
2715001150 Rear Fender Kit, Camo. OUT CamoRear Fender Kit, Camo. OUT Camo
-
2a704900005 Warning Decal, PassengerWarning Decal, Passenger
-
2c704902398 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
2c704902354 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
2d704901177 Warning Decal, MultilingualWarning Decal, Multilingual
-
2f704900006 Warning Decal, Passenger, FrenchWarning Decal, Passenger, French
-
2g704902399 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
2g704902355 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
2k705002085 Reflective SheetReflective Sheet
-
2m705002191 Reflective SheetReflective Sheet
-
2n705005888 Reflective SheetReflective Sheet
-
2o705005889 Reflective Sheet. EuropeReflective Sheet. Europe
-
2p705002014 Reflective SheetReflective Sheet
-
2q704901444 Warning Decal, Public Roads Use. OUT Black EuropeWarning Decal, Public Roads Use. OUT Black Europe
-
2r704901158 Warning Decal, Public Roads Use. OUT Black EuropeWarning Decal, Public Roads Use. OUT Black Europe
-
3715000824 Central Panel Kit, BlackCentral Panel Kit, Black
-
3a704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
3b704900475 Caution Decal, Shifting LeverCaution Decal, Shifting Lever
-
3c704900476 Caution Decal, 4wd SwitchCaution Decal, 4wd Switch
