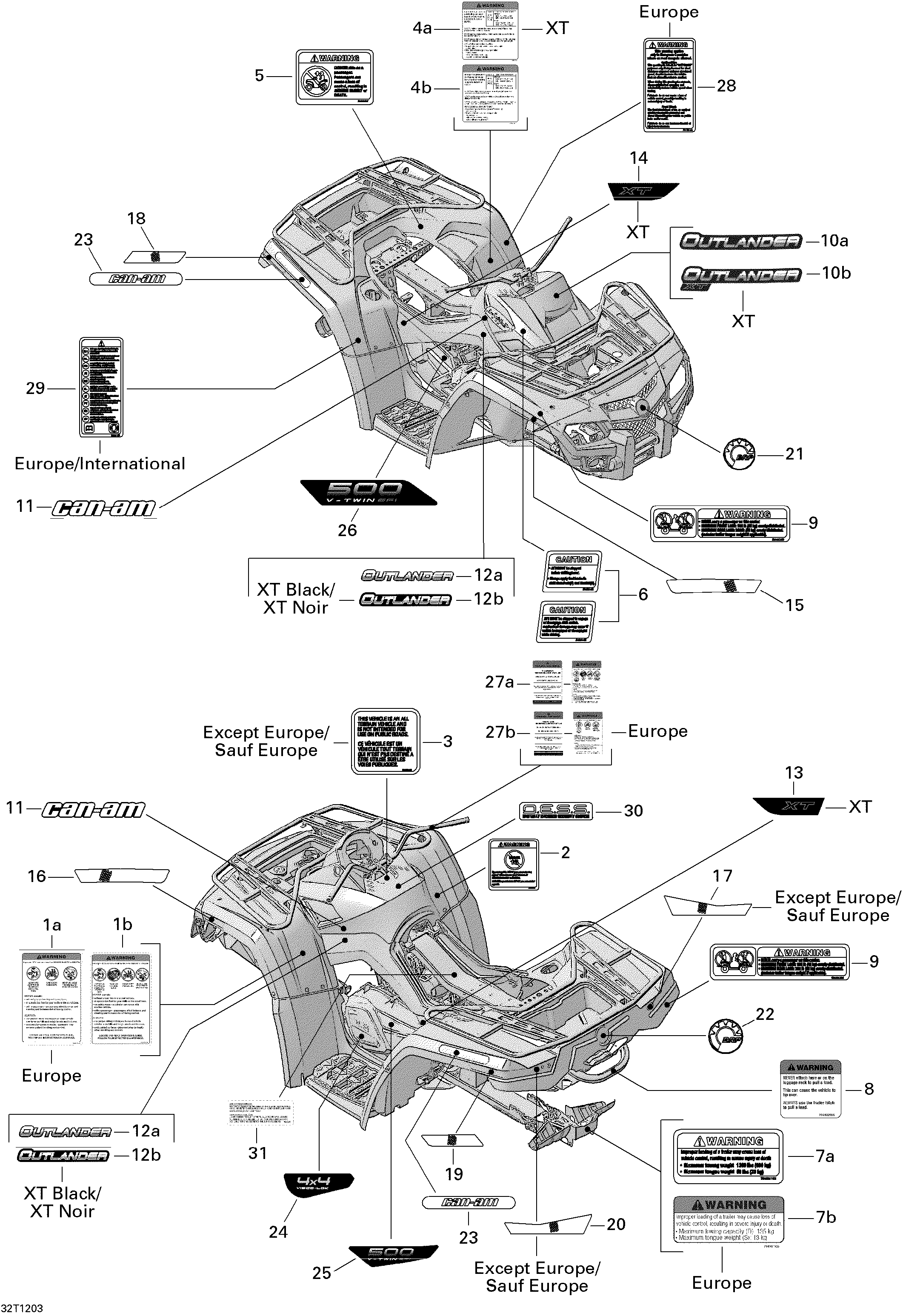

09- Decals для BRP Outlander 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4a704902354 Warning Decal, Tire Pressure. XTWarning Decal, Tire Pressure. XT
-
4b704902398 Warning Decal, Tire Pressure. STDWarning Decal, Tire Pressure. STD
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7A704901123 Warning Decal, Trailer. Except EuropeWarning Decal, Trailer. Except Europe
-
7b704901905 Warning Decal, Trailer. EuropeWarning Decal, Trailer. Europe
-
8704902005 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
9704901089 Warning Decal, LoadWarning Decal, Load
-
10a704902216 Console Decal, Outlander. STDConsole Decal, Outlander. STD
-
10b704902217 Console Decal, Outlander XT. XTConsole Decal, Outlander XT. XT
-
11704902219 Center Panel Decal, Can-AmCenter Panel Decal, Can-Am
-
12a704902220 Side Decal, Outlander. STD, XT Yellow, XT CamoSide Decal, Outlander. STD, XT Yellow, XT Camo
-
12b704902388 Side Decal, Outlander. XT BlackSide Decal, Outlander. XT Black
-
13704902228 LH Side Decal, XT. XTLH Side Decal, XT. XT
-
14704902229 RH Side Decal, XT. XTRH Side Decal, XT. XT
-
15704901422 RH Reflector (Long)RH Reflector (Long)
-
16704901421 LH Reflector (Long)LH Reflector (Long)
-
17704901426 RH Rear Reflector. Except EuropeRH Rear Reflector. Except Europe
-
18704901424 RH Rear ReflectorRH Rear Reflector
-
19704901423 LH Rear ReflectorLH Rear Reflector
-
20704901425 LH Rear Reflector. Except EuropeLH Rear Reflector. Except Europe
-
21219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
22219902672 Logo BRP, 68 mmLogo BRP, 68 mm
-
23704901271 Decal, Can-AmDecal, Can-Am
-
24704902083 Decal, 4x4 Visco-LokDecal, 4x4 Visco-Lok
-
25704902098 LH Engine Cover DecalLH Engine Cover Decal
-
26704902099 RH Engine Cover DecalRH Engine Cover Decal
-
27a704901859 Warning Decal, General Use Model. Except EuropeWarning Decal, General Use Model. Except Europe
-
27b704901861 Warning Decal, General Use Model. EuropeWarning Decal, General Use Model. Europe
-
28704901444 Warning Decal, Public Roads Use. EuropeWarning Decal, Public Roads Use. Europe
-
29704901177 Warning Decal, Multilingual. Europe, InternationalWarning Decal, Multilingual. Europe, International
-
30704901117 Decal, D.E.S.S.Decal, D.E.S.S.
-
31707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
